Shelly HT USB Adapter

Downloads

Manuals

Printed user guide - English, Deutsch, Italiano, Español, Português, Français

Certificates & Declarations

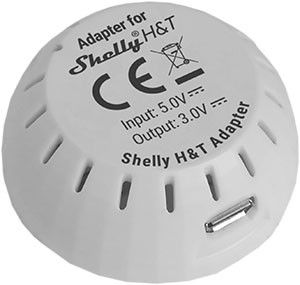

What is Shelly H&T USB Adapter?

Shelly H&T USB Adapter provides the option to power supply Shelly H&T using a standard 5 V power adapter with a Micro-B USB cable.

Specifications

Type

Value

Physical

Size (HxWxD):

46x46x17 ±0.5 mm / 1.81x1.81x0.67 ±0.02 in

Weigh:

7 ±1 g / 0.25 ±0.05 oz

Shell material:

Plastic

Color:

Black or white

Environmental

Ambient temperature:

-10ºC to +50ºC / 14 °F to 122 °F

Humidity

30 % to 90 % RH (non-condensing)

Max. altitude

2000 m / 6562 ft

Electrical

Power supply:

5 V Micro-B USB adapter (not included)

Output voltage:

3 VDC
