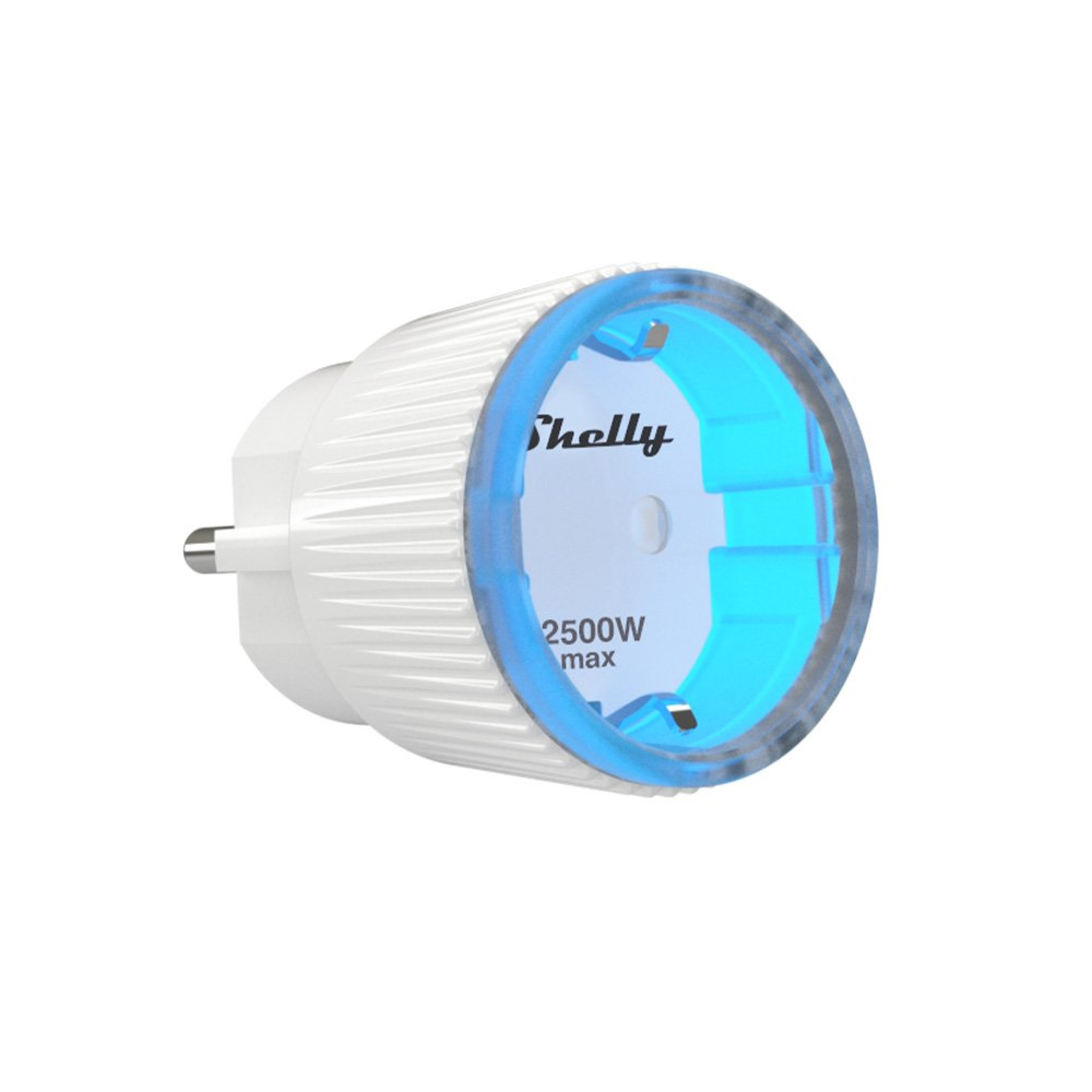

What is Shelly Plug S?
Wi-Fi operated power outlet
Shelly Plug can automatically monitor and control lighting, heating and any other connected electrical appliance at home, no matter where you are. When an electric appliance, or a lamp, is plugged into Shelly Plug, you can switch it on and off through the Shelly Cloud app at any time and anywhere.
Features
No HUB required.
With Shelly Plug S you can control a wide range of devices and appliances.
Shelly Plug S has an integrated precise power meter.
It can be integrated to work with all other Shelly devices.
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
Easily make your Arduino project live and usable in your automation project.
Specification
POWER | |
Power supply AC | 110-230 V ±10%, 50/60 Hz |
Power supply DC | No |
SPECIAL FUNCTIONS | |
Device temperature protection | Yes |
Overload protection | Yes |
Power measurement | Yes |
FEATURES | |
Maximum load | 10 A |
Operational temperature | -10 ºC to +50 ºC |
Device power consumption | < 1 W |
Intelligent On/Off | Yes |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
CONNECTIVITY | |
Wireless/WiFi Protocol | 802.11 b/g/n |
Radiofrequency | 2400 – 2484 MHz |
Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
DIMENSIONS | |
Size | 46 mm x 69 mm |
