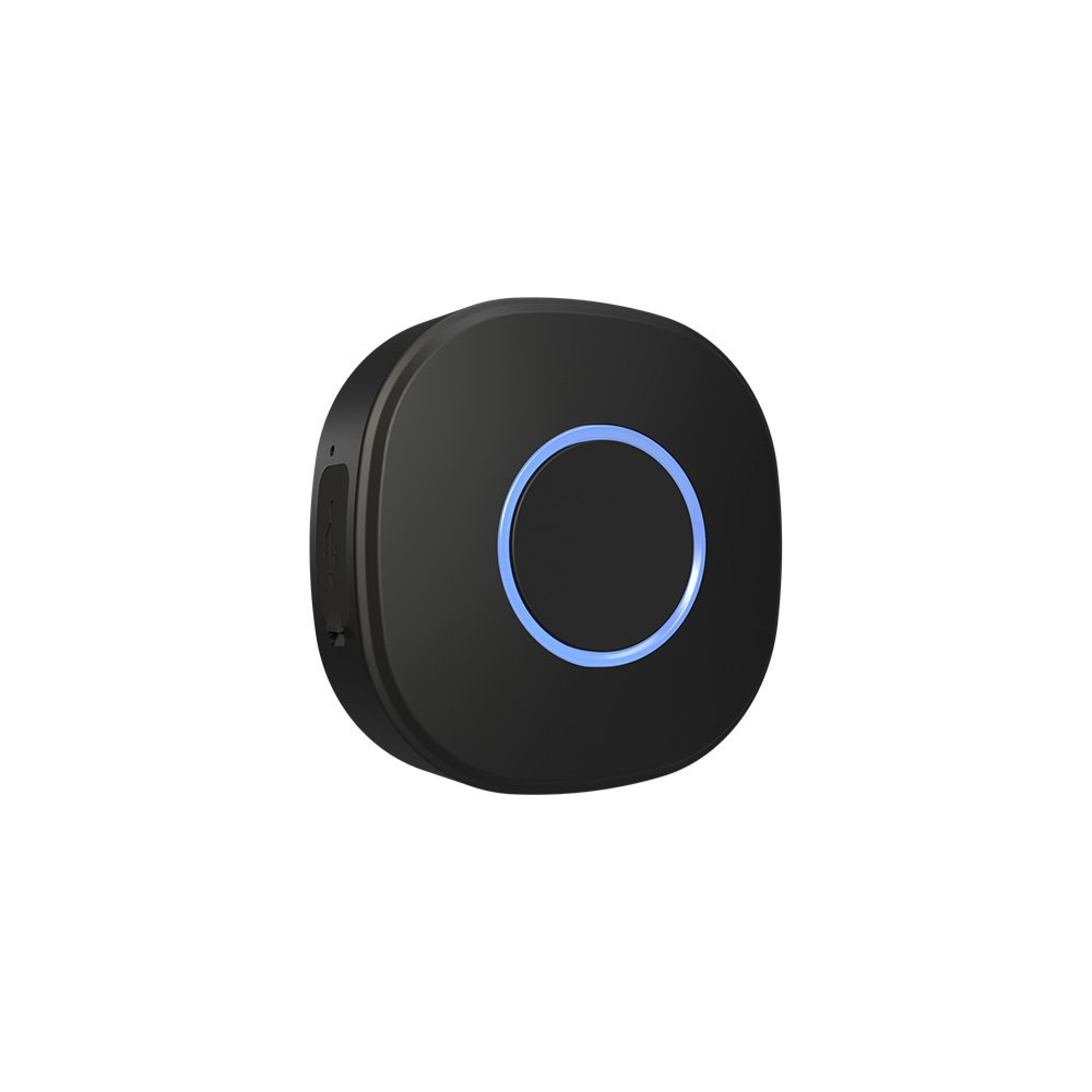

What is Shelly Button 1?
Control everything with just a click
We developed Shelly Button to help you easily activate or deactivate any device or scene manually with just a click. Additionally, Shelly Button is so small and convenient, you can carry it with you absolutely everywhere.
Features
-
No HUB required.
-
Rechargeable batteries, allowing for more than 3000 actions per charge.
-
Response time of less than 2sec. on battery and 100 ms on USB power.
-
A different color response indication for all situations.
-
It can be integrated to work with all other Shelly devices.
-
Compatible with Android, iOS, Amazon Alexa, and home automation servers using MQTT, CoAP, and REST API.
-
Easily make your Arduino project live and usable in your automation project.
Specification
|
POWER |
|
|
Battery life |
3000 actions per charge |
|
Power supply AC |
No |
|
Power supply DC |
Micro USB – 5V |
|
SPECIAL FUNCTIONS |
|
|
Complex scenes control |
Activate or deactivate synchronized actions of several Shelly devices |
|
Overload protection |
No |
|
Power measurement |
No |
|
Dimming |
Yes |
|
FEATURES |
|
|
Operational temperature |
-40 to + 40 °C |
|
Local and remote control |
Yes |
|
Sunrise/Sunset |
No |
|
Weekly Schedule |
No |
|
UL Listed option |
No |
|
CONNECTIVITY |
|
|
Wireless/WiFi Protocol |
802.11 b/g/n |
|
Radiofrequency |
2400 – 2484 MHz |
|
Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
|
DIMENSIONS |
|
|
Size |
45mm x 45mm x 16mm |
