Shelly 1

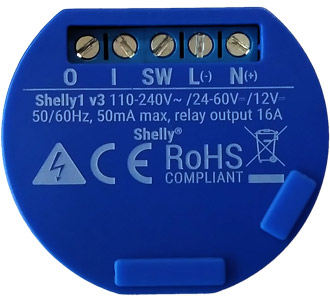

Device identification

  • Device name: Shelly 1

  • Device model: SHSW-1

  • Device SSID: shelly1-XXXXXX

Short description

Shelly 1 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly 1 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 1 has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Integrations

  • Google

  • Samsung SmartThing

  • Alexa

Simplified internal schematics

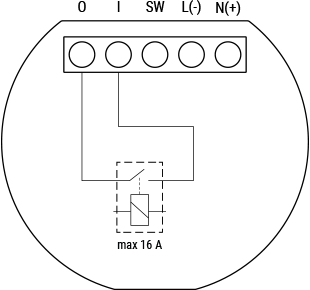

Shelly 1 internal schematics

Device electrical interfaces

Inputs

  • 1 switch/button input on screw terminal

  • 1 potential-free contacts relay input on screw terminal

  • 2 power supply inputs on screw terminals: N (+) and L (-)

Outputs

  • 1 potential-free contacts relay output on screw terminal

Add-on interface

  • Shelly proprietary serial interface

Shelly 1 addon interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

  • Wi-Fi

Supported load types

  • Resistive (incandescent bulbs, heating devices)

  • Capacitive (capacitor banks, electronic equipment, motor start capacitors)

  • Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

Specifications

Type

Value

Physical

Size (HxWxD):

36x41x17 mm / 1.42x1.61x0.67 in

Weight:

Mounting:

Wall console

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 1.5 mm² / 20 to 16 AWG

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Shell material:

Plastic

Color:

Blue

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 VAC / 24 - 60 VDC / 12 VDC ±10%

Power consumption:

< 1 W

Output circuits ratings

Max switching voltage AC:

250 V

Max switching voltage DC:

60 V

Max switching current AC:

16 A

Max switching current DC:

10 A

Radio

RF band:

2401 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP8266

Flash:

2 MB

Firmware capabilities

Schedules:

18

Webhooks (URL actions):

6 with 5 URLs per hook

Scripting:

No

MQTT:

Yes

CoAP:

Yes

Basic wiring diagrams

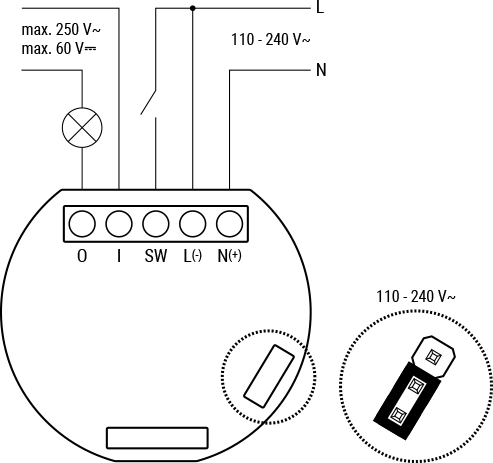

1 AC wiring diagram.png

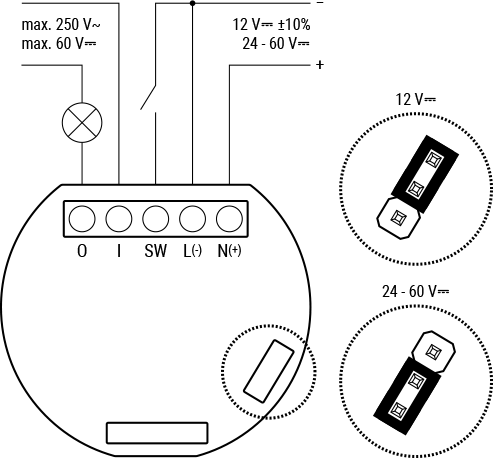

1 DC wiring diagram.png

Legend

Terminals

Wires

I

Load circuit input terminal

L

Live (110 - 240 VAC) wire

O

Load circuit output terminal

N

Neutral wire

SW

Switch (controlling O) input terminal

+

12 / 24 - 60 VDC positive wire

L

Live (110-240 V) terminal

-

Negative wire

N

Neutral terminal

+

DC positive terminal





-

DC negative terminal
