Shelly Uni

Shelly UNI

Downloads

Manuals

Shelly Uni User and Safety Guide

Certificates & Declarations

EU Declaration of conformity

EU-Konformitätserklärung

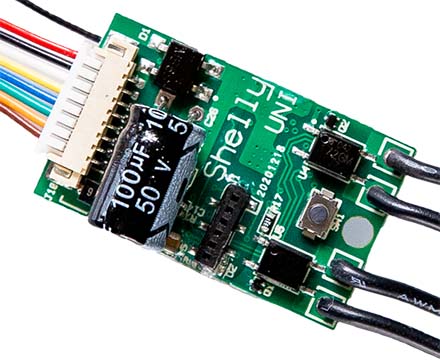

What is Shelly Uni?

The Intelligent Wi-Fi operated implant

Make any old appliance smart! Shelly UNI is the smallest universal module with two available digital inputs and potential-free outputs, providing endless functionalities.

Features

  • No HUB required.

  • Wide range of voltage support.

  • 2 digital inputs

  • 2 potential-free outputs

  • ADC range can measure any voltage from 0 to 30 VDC

  • Supports up to three DS18B20 temperature sensors or a single DHT22 humidity and temperature sensor.

  • Transparent insulation cover over the chip protects it from high humidity, dust, and the threat of short circuits

  • Designed to fit in most standard electrical boxes and switches.

  • It can be integrated to work with all other Shelly devices.

  • Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.

  • Easily make your Arduino project live and usable in your automation project.

Specification

POWER

Power supply AC

12V – 24V

Power supply DC

12V – 36V

SPECIAL FUNCTIONS

Inputs

2 Separated digital inputs from 2.2-36V DC and 12-24V AC

Outputs

2 Potential free outputs up to 24VAC and 36VDC, max 100 mA, 300mW each

Overload protection

No

Power measurement

1 ADC – dual ranges from 0-12V and 0-30V

FEATURES

Channels

2 Channel

Operational temperature

0 to + 40 °C

Device power consumption

< 1 W

Intelligent On/Off

Yes

Sunrise/Sunset

Yes

Weekly Schedule

Yes

UL Listed option

No

CONNECTIVITY

Wireless/WiFi Protocol

802.11 b/g/n

Radiofrequency

2400 – 2500 MHz

Range

up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

DIMENSIONS

Size

20mm x 33mm x 13mm

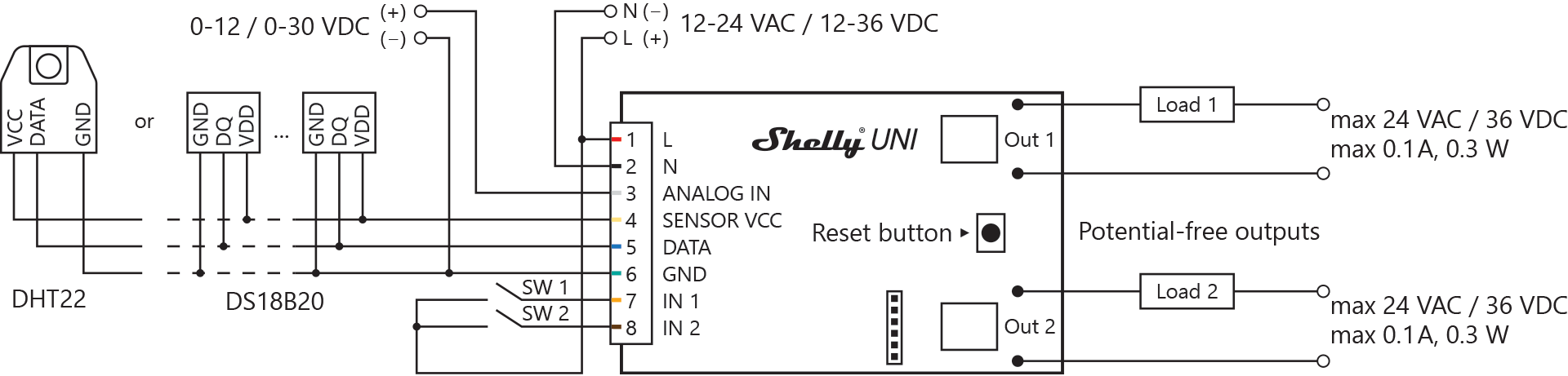

Wiring diagrams
