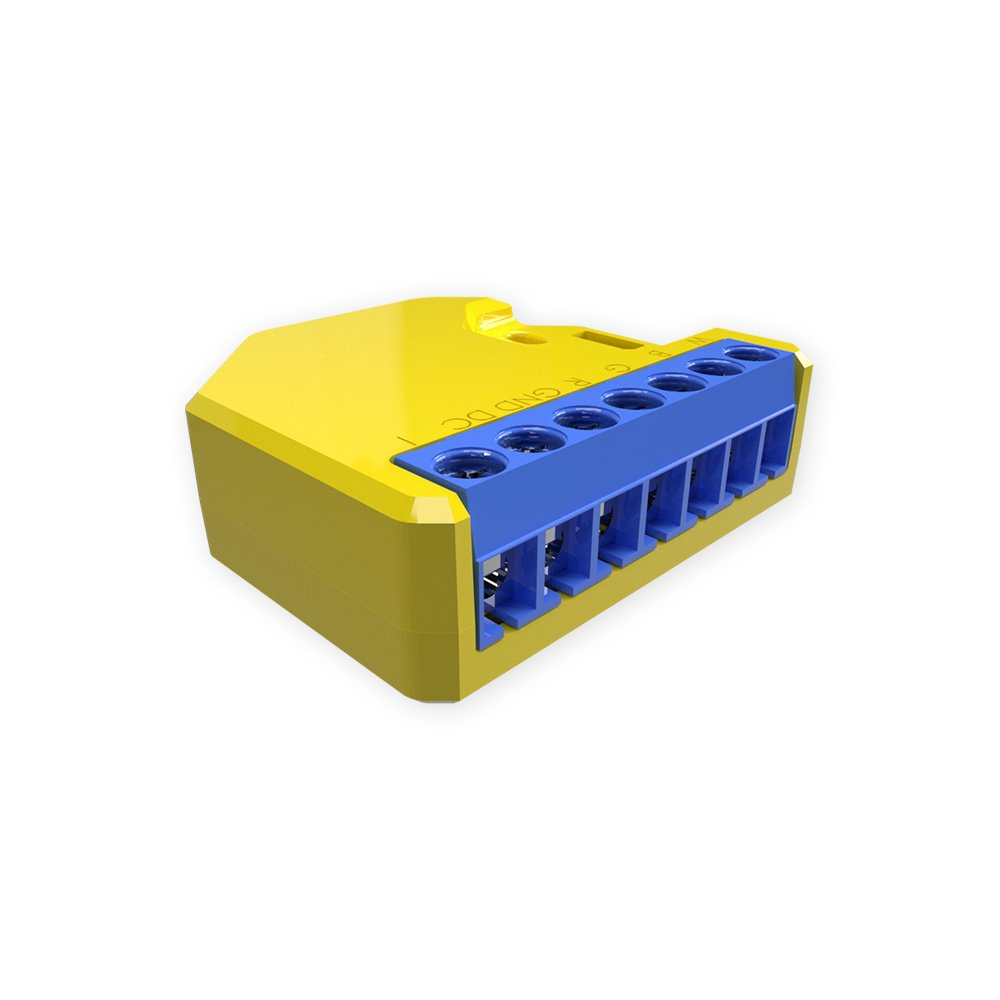

What is Shelly RGBW2?

WiFi-operated RGBW controller

Make your LED strips smart in one easy step. Shelly RGBW2 can connect like any LED controller and allows you to control all your lighting directly from a mobile device or tablet.

Features

  • No HUB required.

  • Wide range of voltage support.

  • Huge palette of different colours, dimming options and effects.

  • Designed to fit in most standard electrical boxes and switches.

  • It can be integrated to work with all other Shelly devices.

  • Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.

  • Easily make your Arduino project live and usable in your automation project.

POWER

Power supply AC

No

Power supply DC

12V/ 24V

DC Power Output 12V per channel

45W

DC Power Output 24V per channel

90W

DC Power Output 12V combined power

144W

DC Power Output 24V combined power

288W

SPECIAL FUNCTIONS

Device temperature protection

No

Overload protection

No

Power measurement

Yes

Dimming

Yes

Working without a neutral line

No

FEATURES

Colour changing

Yes

Predefined effects

Yes

Channels

4 Channel

Maximum load

12A

Operational temperature

0ºC to +40ºC

Device power consumption

< 1 W

Intelligent On/Off

Yes

Local and remote control

Yes

Sunrise/Sunset

Yes

Weekly Schedule

Yes

UL Listed option

No

CONNECTIVITY

Wireless/WiFi Protocol

802.11 b/g/n

Radiofrequency

2400 – 2500 MHz

Range

up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

DIMENSIONS

Size

43mm x 38mm x 14mm

Wiring diagrams

How to connect - AC switch wiring

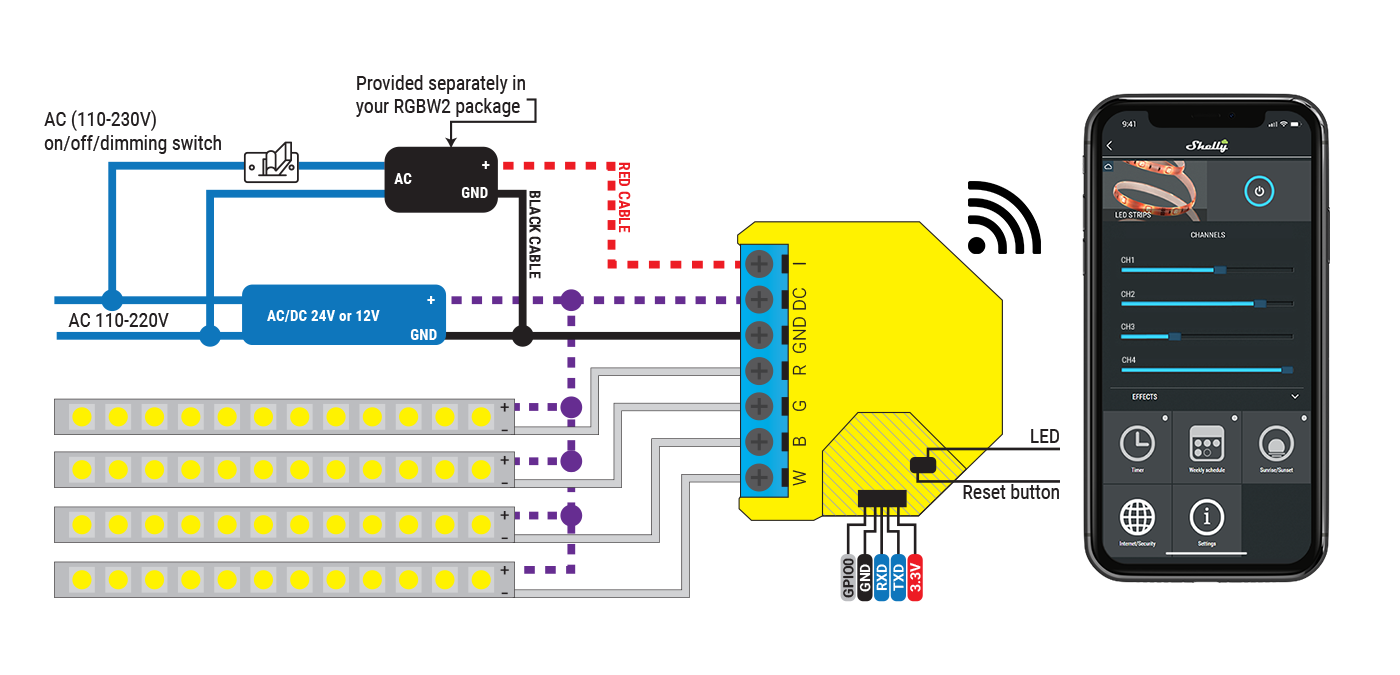

4X White LED strip scheme

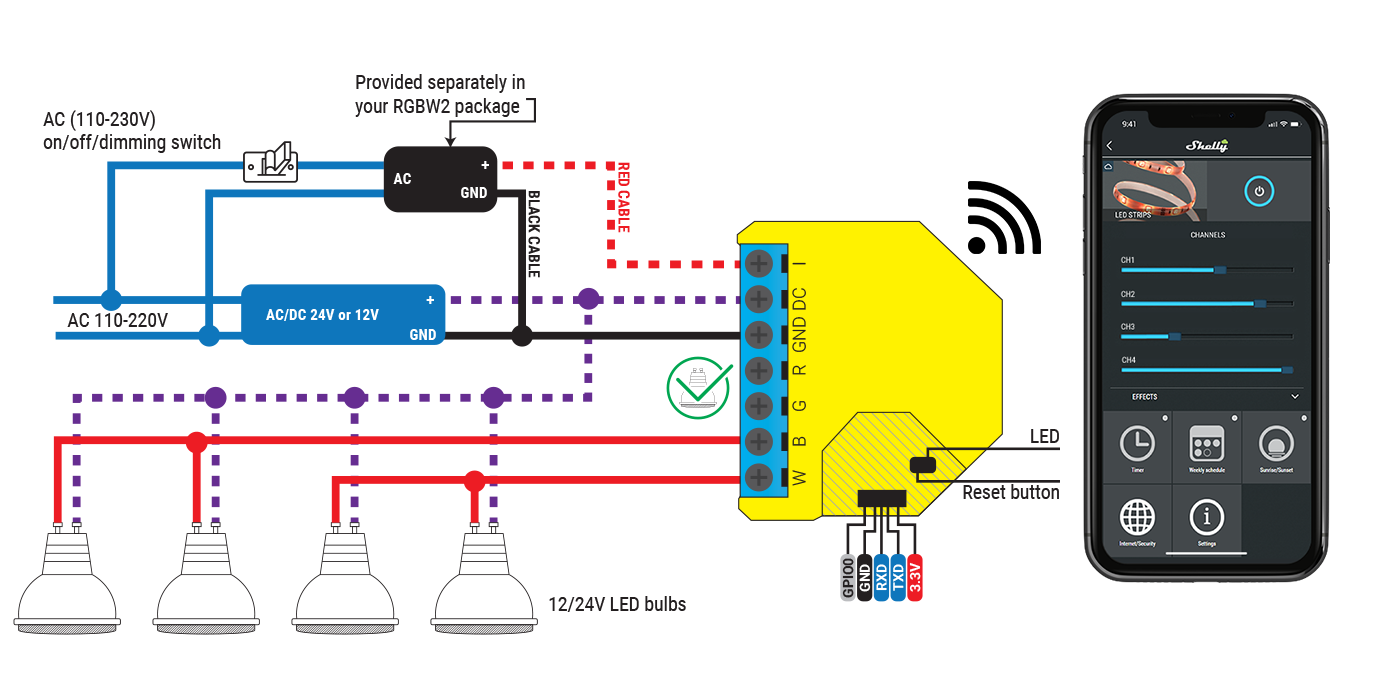

White LED bulbs scheme

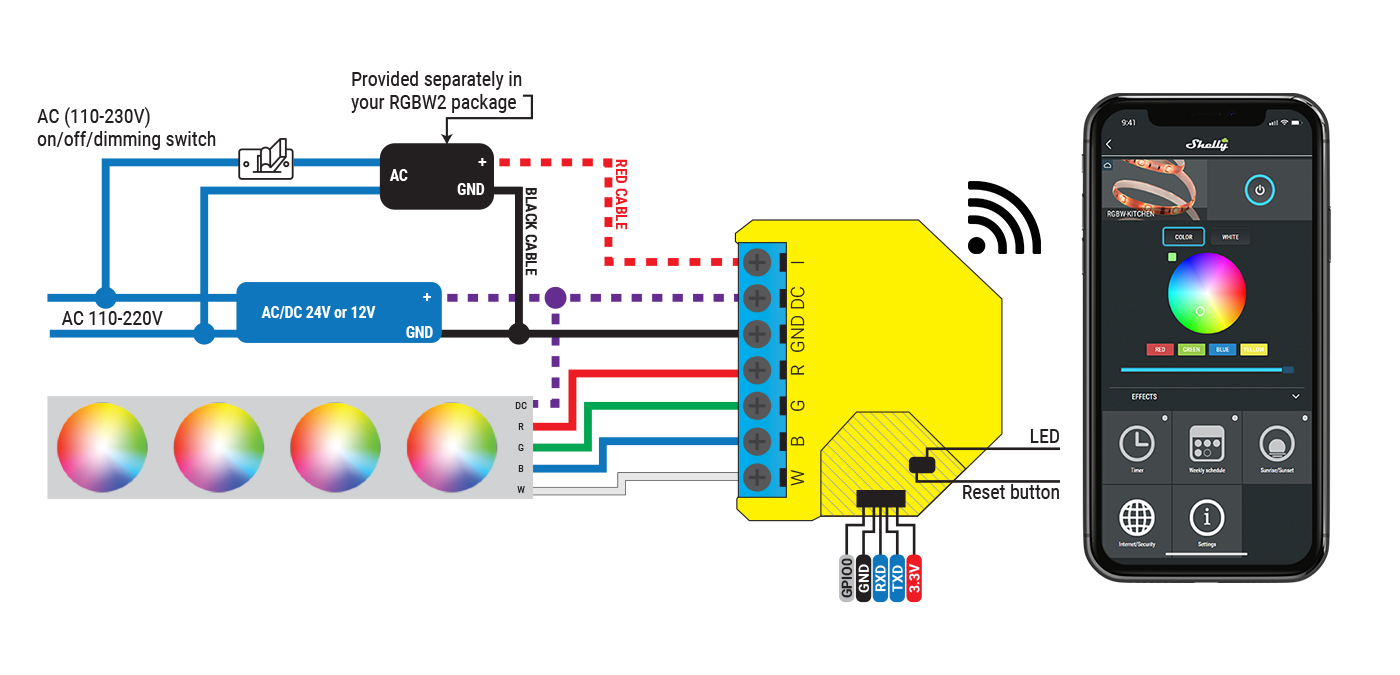

RGBW LED strip scheme

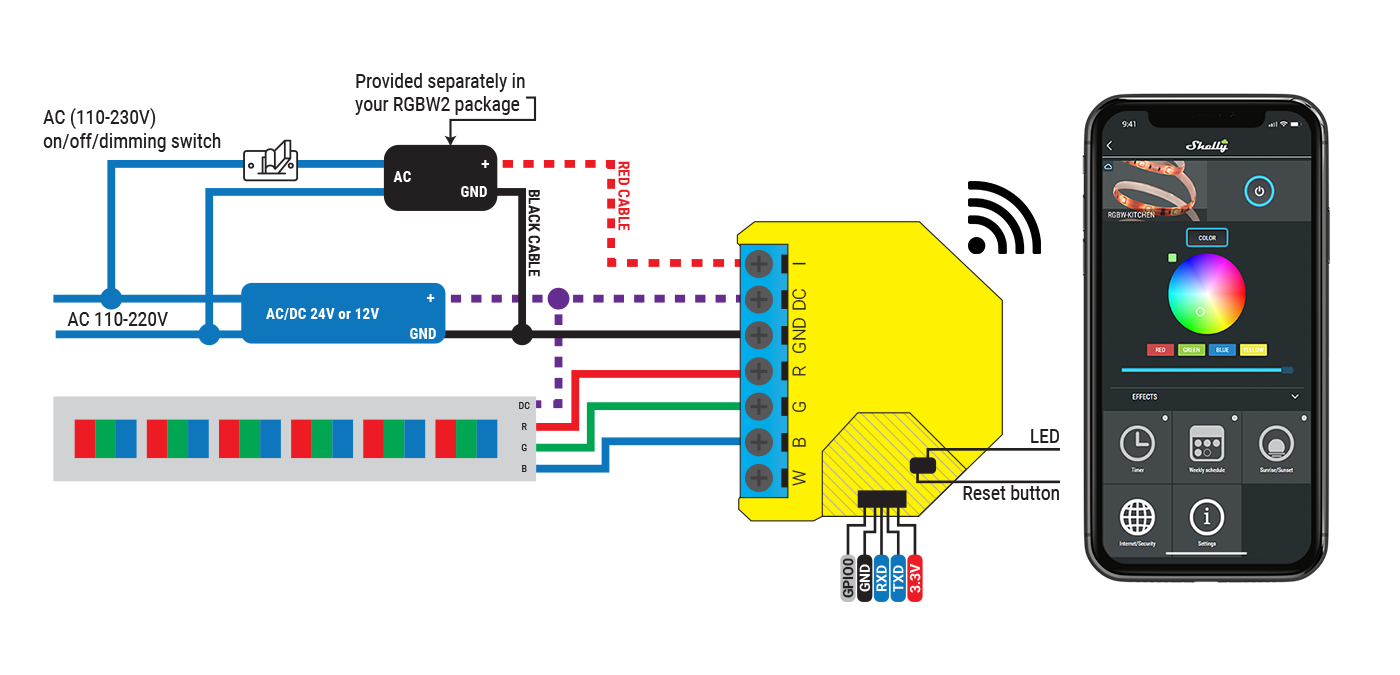

RGB LED strip scheme

How to connect - DC switch wiring

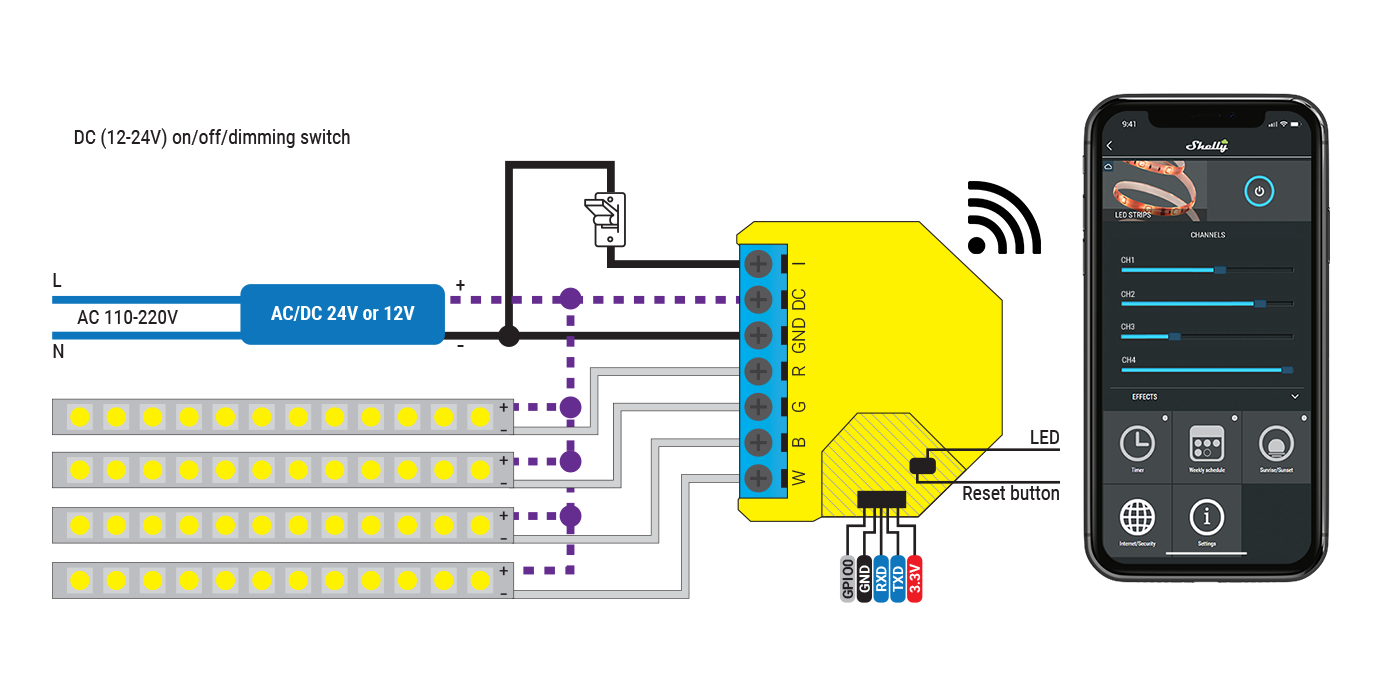

4X White LED strip scheme

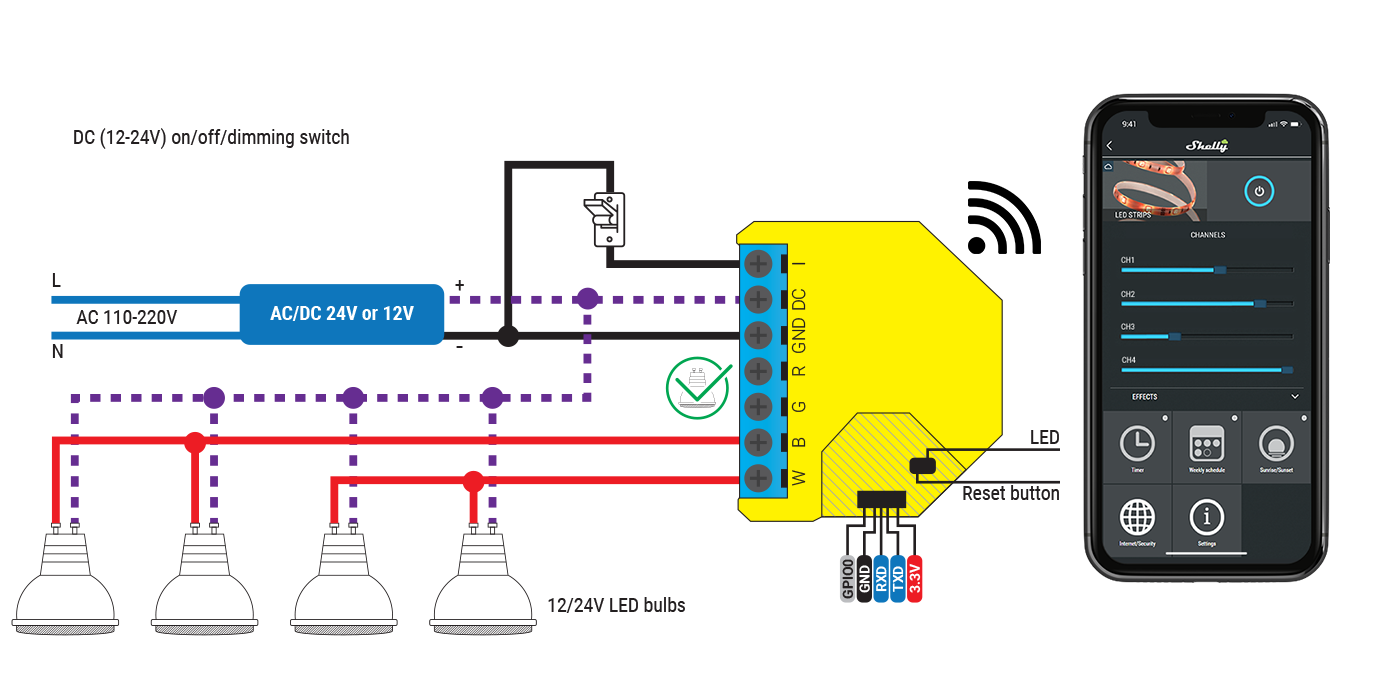

White LED bulbs scheme

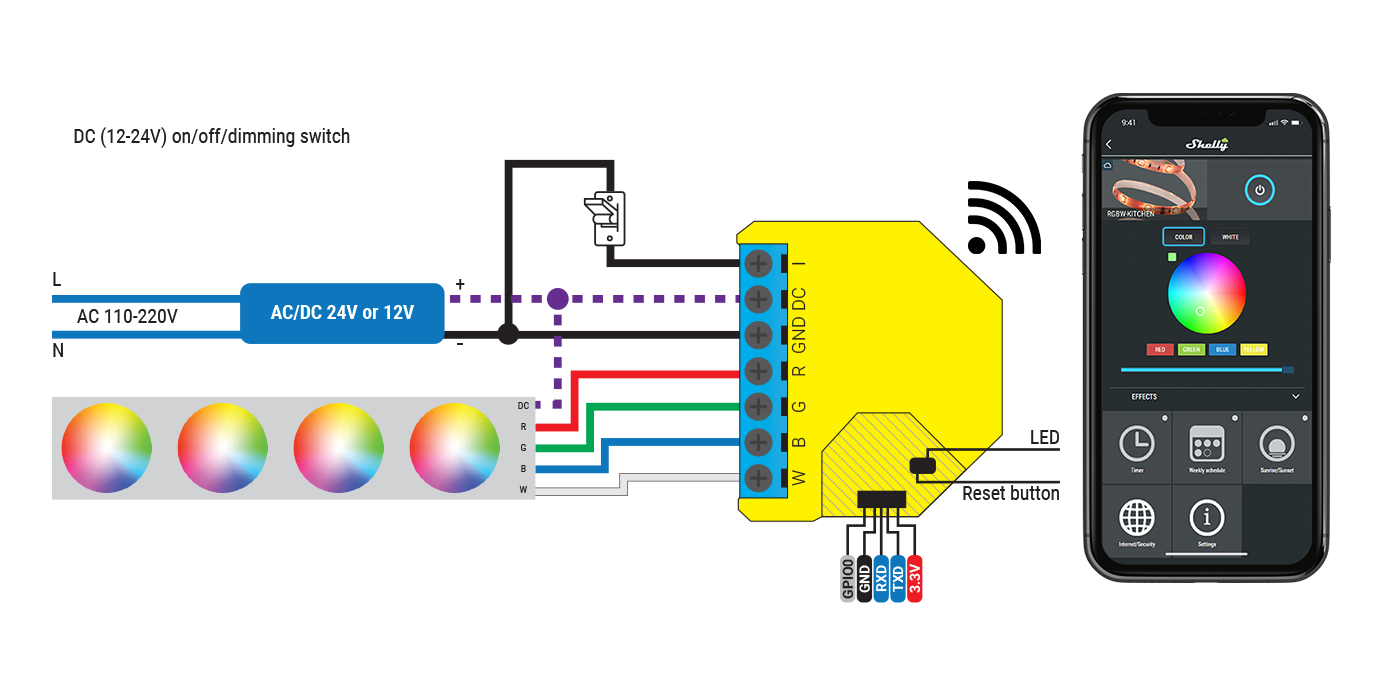

RGBW LED strip scheme

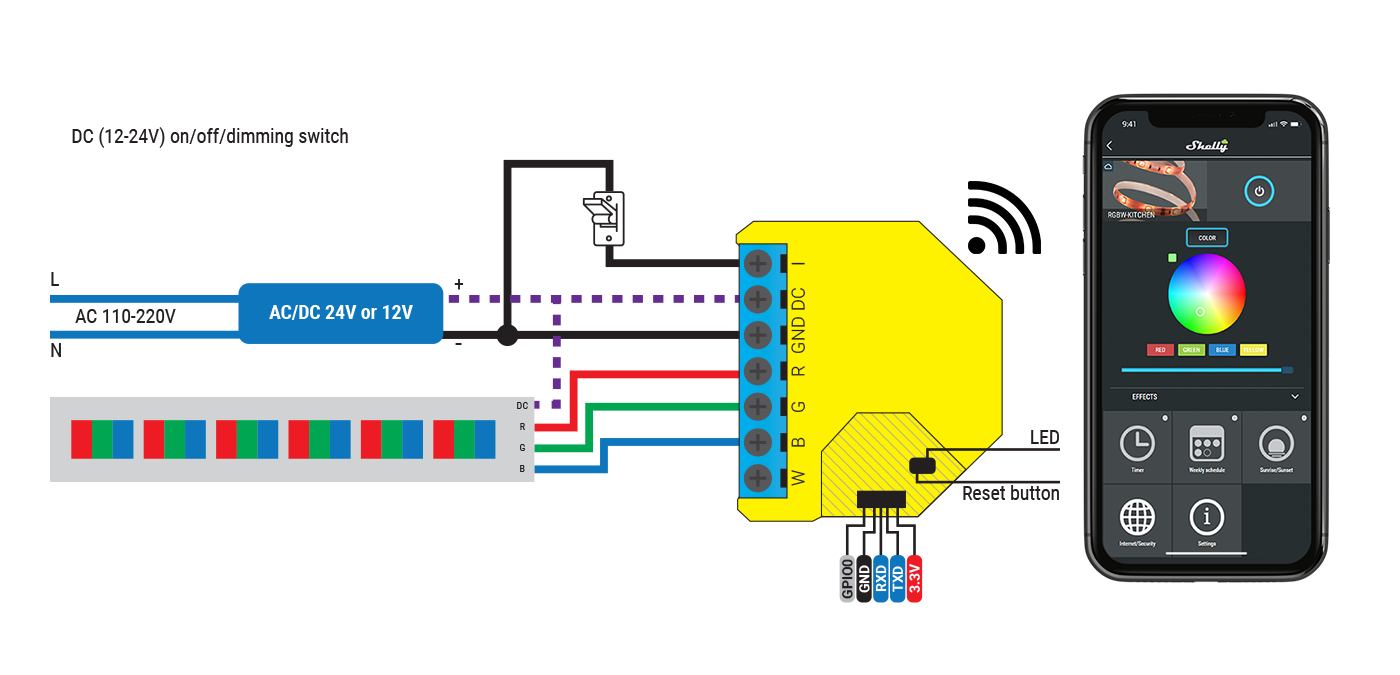

RGB LED strip scheme

Use cases

Universal lighting control

Are you going to bed and need to switch off all the lights? Install Shelly RGBW2, and you will be able to control all lights with just one tap via your smartphone, or with your voice. It can manage RGB+W, 4x single color LED strips, or the spotlights in your living room.

Ventilation control

Are you cooking dinner but want to avoid spreading the smell all over your home? Or do you want to keep certain humidity levels? Shelly RGBW2 allows you to control your fan, so you keep the air fresher and humidity levels better, thus avoiding mold formation and unpleasant smells.

Projects

MagicMirror With Gesture Controlled LED Strip Using Shelly RGBW2

Learn how to create a MagicMirror of your own controlled by Shelly RGBW2 and LED strips on the front. Sounds cool, doesn’t it?
