Smart Washing Machine
Overview
Project Overview
This Use Case comes from a private home from which the Shelly fan shared his project, very simple yet brilliant and affordable DIY retrofit which turns a traditional washing machine into a smart appliance using Shelly 1PM. The user benefits from receiving automatic notifications via the Shelly app whenever a laundry cycle is completed.
Goal
To create a smart notification system that alerts the user when the washing machine completes a cycle, saving time and unnecessary trips to the laundry area.
Challenges
No built-in smart features: Older or standard washing machines lack cycle-completion alerts.
Manual monitoring: The user had to repeatedly check the machine manually, especially inconvenient when it’s located on a different floor (in this case, the garage).
Avoiding costly replacements: Purchasing a smart washer was unnecessary and costly for a simple problem.
Solutions / Implementations
Solution
A Home Assistant integration or direct Shelly app setup handles notification logic.
The washing machine is located in the garage, eliminating the need for manual checks downstairs.

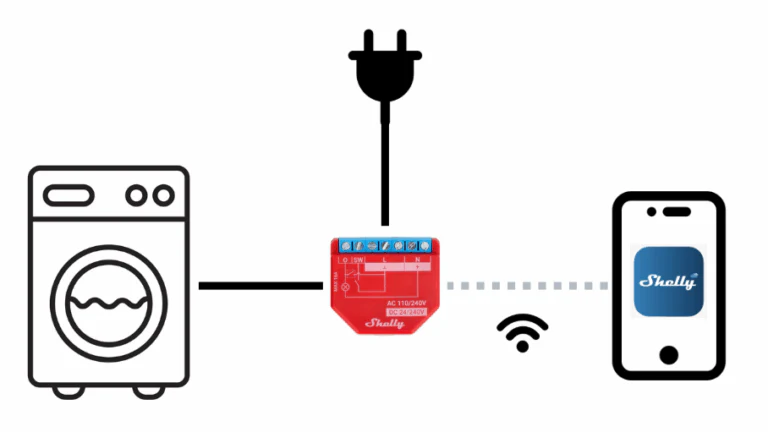

How It Works:

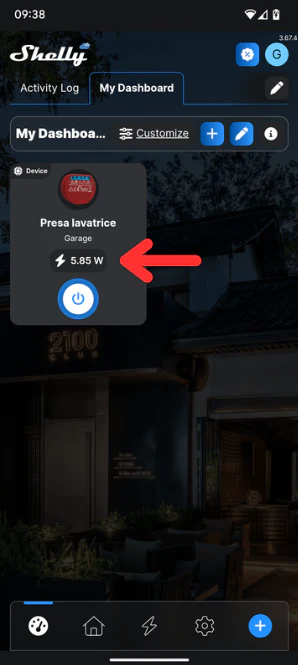

Track: Shelly 1PM monitors power draw.
Detect: When wattage drops (end of cycle), the system detects completion.
Notify: Shelly app sends a notification instantly.
 |  |  |
|---|
Why It Works:
Cost-effective retrofit: No new machine purchase; just one smart device added.
Convenient automation: Eliminates multiple trips to the laundry.
Platform flexibility: Works with the Shelly app directly or with Home Assistant automations.
Key Features
Power usage monitoring using Shelly 1PM

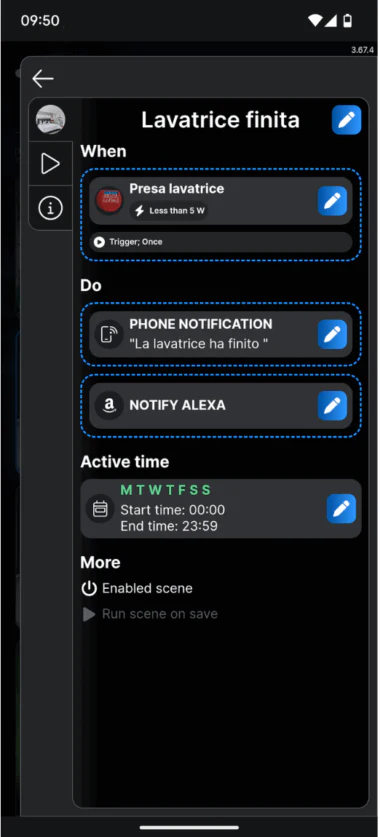

Notification logic triggered by a power drop (end of cycle)
Configurable via the Shelly Cloud app or third-party platforms like Home Assistant
Non-invasive and reversible installation which is practical and reliable enhancement, without expensive installations.
Products Used
Shelly 1PM Gen4 – Wi-Fi-operated relay switch with power metering
Shelly Cloud App or Home Assistant – For notifications and automation logic
Results
✅ Real-time cycle notifications
The user is instantly notified when the washing machine finishes its cycle—whether they're upstairs, outside, or in another room.✅ Smarter routines
Laundry tasks no longer require repeated checks, improving daily efficiency and convenience.✅ Low-cost upgrade
Instead of buying a new smart wash machine, the existing one was upgraded for a fraction of the cost using one Shelly device.✅ Flexible integration
The solution works seamlessly with both the official Shelly app and open platforms like Home Assistant.
Conclusion
This DIY with Shelly 1PM Gen4 retrofit demonstrates how even basic household appliances can be transformed into smart, responsive systems. By monitoring power draw and triggering timely notifications, users enjoy a modern smart home experience without the need for expensive equipment. This practical and budget-friendly solution is a perfect example of how Shelly devices can enhance everyday convenience with minimal effort.
