Office lights

Read before use

This document contains important technical and safety information about the device, its safety use and installation.

⚠ ATTENTION! Before beginning the installation, please read carefully and entirety this guide and any other documents accompanying the device. Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any). Allterco Robotics EOOD is not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure of following the user and safety instructions in this guide.

Introduction to Shelly®

Shelly® is a line of innovative microprocessor-managed devices, which allow remote control of electric circuits through a mobile phone, tablet, PC, or home automation system. Shelly® devices can work standalone in a local Wi-Fi network, or they can be operated through cloud home automation services. Shelly Cloud is a service that can be accessed using either the Android or iOS mobile application, or with any internet browser at https://home.shelly.cloud/.

Shelly® devices can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the devices are connected to a Wi-Fi router and the Internet.

When connected directly to the device's access point, or at the device's IP address on the local Wi-Fi network, the User can access the Shelly® device's embedded Web Interface at http://192.168.33.1. The embedded Web Interface can be used to monitor and control the device, as well as adjust its settings.

Shelly® devices can communicate directly with other Wi-Fi devices through HTTP protocol. An API is provided by Allterco Robotics EOOD. For more information, please visit: https://shelly-api-docs.shelly.cloud/#shelly-family-overview.

Shelly® devices are delivered with factory-installed firmware. If firmware updates are necessary to keep the devices in conformity, including security updates, Allterco Robotics EOOD will provide the updates free of charge through the device embedded Web Interface or Shelly Mobile Application, where the information about the current firmware version is available. The choice to install or not the Device firmware updates is the User’s sole responsibility. Allterco Robotics EOOD shall not be liable for any lack of conformity of the Device caused by failure of the User to install the provided updates in a timely manner.

Control your home with your voice

Shelly® devices are compatible with Amazon Alexa and Google Home supported functionalities. Please see our step-by-step guide on: https://shelly.cloud/support/compatibility/.

Use case

You need to switch on/off the lights in a room, hall or a corridor from a mobile device and/or multiple physical locations.

This guide describes how to achieve this using Shelly Plus 1PM (the Device) and several buttons mounted on key locations.

Learn more about Shelly Plus 1PM.

Installation

⚠WARNING! Danger of electrocution. Mounting/installation of the Device to the power grid has to be performed with caution, by a qualified electrician!

⚠WARNING! Danger of electrocution. Every change in the connections has to be done after ensuring there is no voltage present at the Device terminals!

⚠CAUTION! Use the Device only with a power grid and appliances which comply with all applicable regulations. A short circuit in the power grid or any appliance connected to the Device may damage the Device!

⚠CAUTION! Тhe Device may be connected to and may control electric circuits and appliances only if they comply with the respective standards and safety norms!

⚠CAUTION! Do not connect the Device to appliances exceeding the given max load!

⚠CAUTION! Connect the Device only in the way shown in these instructions. Any other method could cause damage and/or injury!

⚠CAUTION! Do not use the Device if it has been damaged!

⚠CAUTION! Do not attempt to service or repair the Device yourself!

Mounting

Shelly Plus 1PM is intended to be mounted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

⚠CAUTION! Before mounting the Device, turn the circuit breakers off, and check that there is no voltage on the cables. This can be done with a phase tester or multimeter. When you are sure that there is no voltage, you can proceed to mounting and wiring the Device.

Wiring

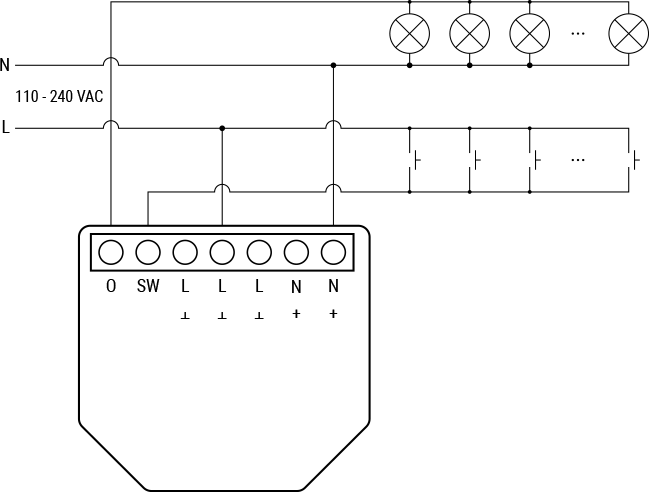

Shelly Plus 1PM wiring with multiple buttons

Legend

Terminals

Cables

O

Load circuit output terminal

L

Live (110-240 V) line

SW

Switch/button input terminal

N

Neutral line

L

Live (110-240 V) terminals

N

Neutral terminals





DC ground terminals

+

24 - 30 VDC positive terminals

Connections

Create the lights circuit by connecting all the lights in parallel.

Connect the Neutral lights circuit cable to the Neutral line, and the Live light circuit cable to the Device O terminal in compliance with your local regulations.

Connect the Device N terminal to the Neutral line.

Connect the Device any of the L terminals to the Live line.

Create the controlling circuit by connecting in parallel all the buttons you want to use to turn on and off the lights.

Connect one of the controlling circuit cables to the Live line and the other to the Device SW terminal.

Make sure you have connected the devices properly and then turn on the circuit breakers.

⚠WARNING! Danger of electrocution. Every change in the connections has to be done after ensuring there is no voltage present at the Device terminals!

Setup

The red LED on the back side of the Device will be flashing if the Device is powered, indicating the Device access point (AP) is activated.

The LED will be on without flashing if the device is connected to an Ethernet network.

Controlling the Device using its embedded Web Interface

Connect to the Device AP (ShellyPlus1PM-XXXXXXXXXXXX). Type http://192.168.33.1 in your browser to access the embedded Web Interface.

Click on the Input (0) bar under Switches and attached inputs in the Home screen. Click on the Settings tab. Click on Input mode. Select Button and click on the Save settings button.

(For the old web interface click on Channel settings and then expand Input output settings. Select Button from the dropdown and Momentary type. If you select Detached, you will not be able to control the lights directly from the buttons, although you can still use the buttons for other purposes like webhooks (URL actions) or scripts.)

Now you can continue with setting up the Device. Check Shelly Plus 1 Web Interface Manual.

Controlling the Device using applications or cloud services

If you choose to use the Device with the Shelly Cloud mobile application and Shelly Cloud service, instructions on how to connect the Device to the Cloud and control it through the Shelly App can be found in the Shelly Application Guide.

The Shelly Mobile Application and Shelly Cloud service are not conditions for the Device to function properly. This Device can be used stand-alone or with various other home automation platforms and protocols.

⚠CAUTION! Do not allow children to play with the buttons/switches connected to the Device. Keep the devices for remote control of Shelly (mobile phones, tablets, PCs) away from children!

Power measurement

Shelly Plus 1PM can measure the momentary voltage, current and power levels.

Shelly Cloud service allows you to also store statistical data of the energy consumption of your lights within a year.
