Using Shelly Plus Add-on to measure soil moisture with a capacitive sensor


Read before use

This document contains important technical and safety information about the device, its safety use and installation.

⚠ ATTENTION! Before beginning the installation, please read carefully and entirely this guide and any other documents accompanying the device. Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any). Shelly Europe Ltd is not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure of following the user and safety instructions in this guide.

Introduction to Shelly®

Shelly® is a line of innovative microprocessor-managed devices, which allow remote control of electric circuits through a mobile phone, tablet, PC, or home automation system. Shelly® devices can work standalone in a local Wi-Fi network, or they can be operated through cloud home automation services. Shelly Cloud is a service that can be accessed using either the Android or iOS mobile application, or with any internet browser at

Shelly® devices can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the devices are connected to a Wi-Fi router and the Internet.

When connected directly to the device's access point, or at the device's IP address on the local Wi-Fi network, the User can access the Shelly® device's embedded Web Interface at The embedded Web Interface can be used to monitor and control the device, as well as adjust its settings.

Shelly® devices can communicate directly with other Wi-Fi devices through HTTP protocol. An API is provided by Shelly Europe Ltd. For more information, please visit:

Shelly® devices are delivered with factory-installed firmware. If firmware updates are necessary to keep the devices in conformity, including security updates, Shelly Europe Ltd will provide the updates free of charge through the device embedded Web Interface or Shelly Mobile Application, where the information about the current firmware version is available. The choice to install or not the Device firmware updates is the User’s sole responsibility. Shelly Europe Ltd shall not be liable for any lack of conformity of the Device caused by failure of the User to install the provided updates in a timely manner.

Use case

This guide describes how to monitor the soil moisture and control an irrigation system using Shelly Plus Add-on (the Device) and the Cytron Technologies Maker soil moisture sensor.

Learn more about Shelly Plus Add-on and its specifications.


⚠WARNING! Danger of electrocution. Mounting/installation of the Device to the power grid has to be performed with caution, by a qualified electrician!

⚠WARNING! Danger of electrocution. Every change in the connections has to be done after ensuring there is no voltage present at the Device terminals!

⚠CAUTION! Use the Device only with a power grid and appliances which comply with all applicable regulations. A short circuit in the power grid or any appliance connected to the Device may damage the Device!

⚠CAUTION! Тhe Device may be connected to and may control electric circuits and appliances only if they comply with the respective standards and safety norms!

⚠CAUTION! Do not connect the Device to appliances exceeding the given max load!

⚠CAUTION! Connect the Device only in the way shown in these instructions. Any other method could cause damage and/or injury!

⚠CAUTION! Do not install the device where it can get wet!

⚠CAUTION! Do not use the Device if it has been damaged!

⚠CAUTION! Do not attempt to service or repair the Device yourself!


Shelly Plus Addon is intended to be attached to a Shelly Plus device (currently Shelly Plus 1, Shelly Plus 1PM, Shelly Plus 2PM, Shelly i4 and Shelly i4DC).

⚠CAUTION! If you are installing the Shelly Plus Add-on to a Shelly Plus device that is already connected to the power grid, check that the breakers are turned off and there is no voltage on the terminals of the Shelly Plus device you are attaching the Shelly Plus Add-on to. This can be done with a phase tester or multimeter. When you are sure that there is no voltage, you can proceed to installing the Shelly Plus Add-on.

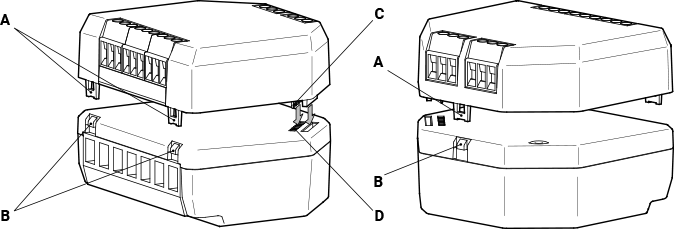

Attach the Shelly Plus Add-on to the Shelly Plus device as shown below.

Attaching Shelly Plus Add-on to a Shelly Plus device

Attaching Shelly Plus Add-on to a Shelly Plus device

⚠CAUTION! Be very careful not to bend the Device header pins (C) when inserting them to the Shelly Plus device header connector (D).
Make sure the brackets (A) lock on the Shelly Plus device hooks (B) and then proceed to the Device wiring.

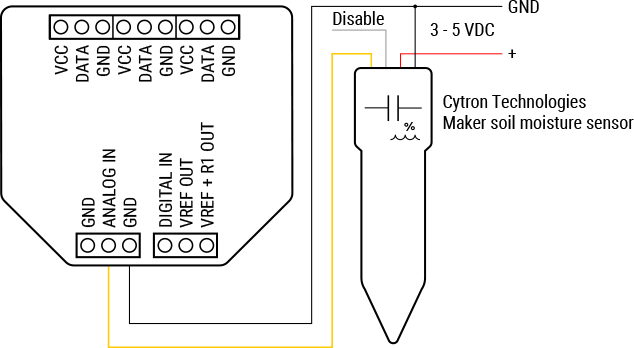

Connect the soil moisture sensor to Shelly Plus Add-on according to the schematic below.

Wiring a Maker soil moisture sensor to Shelly Plus Add-on

The Yellow wire from the sensor is its output. Connect the Yellow wires to the Device ANALOG IN input.

The sensor can be disabled (for energy saving) by connecting the Gray wire to the sensor power supply positive wire.

Connect the sensor Black wire to the sensor power supply ground and the Device GND terminal.

Connect the Red wire to the sensor power supply positive wire.

Adding the Shelly Plus Add-on peripherals to the Shelly Plus device

Connect to the Shelly Plus device to which the Shelly Plus Addon is attached to and type in your browser to access its embedded Web Interface.

Press the Add-on button in the Main menu. Press the Enable Add-on button. To complete the process you have to reboot the Shelly Plus device. Press Reboot now.

Now you have to add the Device inputs. Press the Add Peripherals button.

Select Analog Input and press Save settings. Reboot the Shelly Plus device.

Now you have to create Actions.

Press the Input (101) bar (This is the Analog input. You can change the name, for example, to Upper level in the settings).

Press Actions tab. Create an action by pressing the New Action button. For more information on how the actions for the Add-on work for the different peripherals see Shelly Plus Add-on web interface guide.

Use the actions to toggle the relay(s) of the Shelly Plus device to which the Device is connected and/or control other Shelly devices in the same network.

You can keep the soil moisture at a certain level, by opening or closing, for example, a solenoid valve thus turning on or off the water supply to sprinkles.

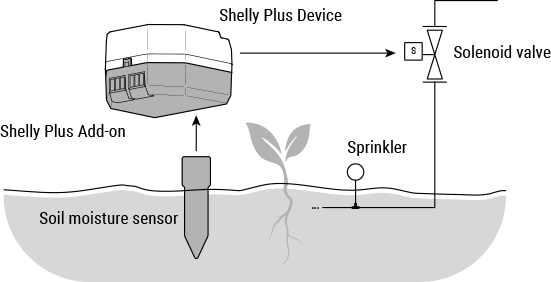

Using Shelly Plus Add-on with a capacitive sensor to control sprinklers

⚠CAUTION! Make sure to protect the soil moisture sensor from getting wet.

⚠RECOMMENDATION! To prevent unexpected events in case of sensor malfunction or loss of connection to a device, we suggest that you set a Flip value after time for a local action, or enable Auto OFF time on the Shelly device(s) to automatically turn off the controlled appliance(s) after a certain period of time.
