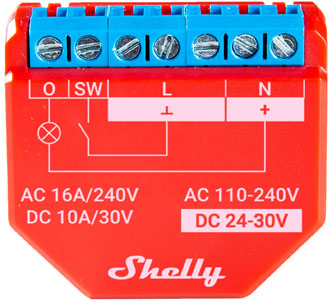

Shelly Plus 1PM

Shelly Plus 1PM

Device identification

  • Device name: Shelly Plus 1PM

  • Device model: SNSW-001P16EU

  • Device SSID: ShellyPlus1PM-XXXXXX

Short description

Shelly Plus 1PM is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Plus 1PM can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly Plus 1PM has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Integrations

  • Google

  • Samsung SmartThings

  • Alexa

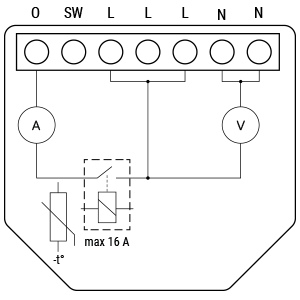

Simplified internal schematics

Shelly Plus 1PM internal schematic

Device electrical interfaces

Inputs

  • 1 switch/button input on screw terminal: SW

  • 5 power supply inputs on screw terminals: 2 N (+) and 3 L (Ʇ)

Outputs

  • 1 relay output with power measurement on screw terminal: O

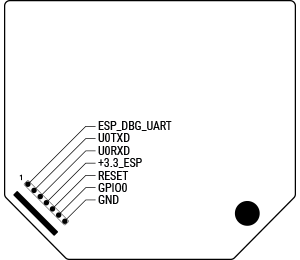

Add-on interface

  • Shelly proprietary serial interface

Shelly Plus 1 addon interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

  • Wi-Fi

  • Bluetooth

Safety features

  • Overheating protection

  • Overvoltage protection

  • Overcurrent protection

  • Overpower protection

Supported load types

  • Resistive (incandescent bulbs, heating devices)

  • Capacitive (capacitor banks, electronic equipment, motor start capacitors)

  • Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

  • One (Reset) button

    • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

    • Press and hold for 10 seconds to factory reset the Device.

Outputs

  • LED (monocolor) indication

    • AP (Access Point) enabled and Wi-Fi disabled:
      1 second ON / 1 second OFF

    • Wi-Fi enabled, but not connected to a Wi-Fi network:
      1 second ON / 3 seconds OFF

    • Connected to a Wi-Fi network:
      Constantly ON

    • Cloud is enabled, but not connected:
      1 second ON /5 seconds OFF

    • Connected to Shelly Cloud:
      Constantly ON

    • OTA (Over the Air Update):
      ½ sec ON / ½ second OFF

    • Button pressed and held for 5 seconds:
      ½ second ON / ½ second OFF

    • Button presses and held for 10 seconds:
      ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Type

Value

Physical

Size (HxWxD):

37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in

Weight:

27 g / 0.95 oz

Mounting:

Wall console

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 1.5 mm² / 20 to 16 AWG

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Shell material:

Plastic

Color:

Red

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 VAC / 24 - 30 VDC

Power consumption:

< 1.2 W

Output circuits ratings

Max switching voltage AC:

240 V

Max switching voltage DC:

30 V

Max switching current AC:

16 A

Max switching current DC:

10 A

Sensors, meters

Internal-temperature sensor:

Yes

Voltmeter (AC)

Yes

Ammeter (AC)

Yes

Radio

RF band:

2400 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32-U4WDH

Flash:

4 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

CoAP:

No

Basic wiring diagram

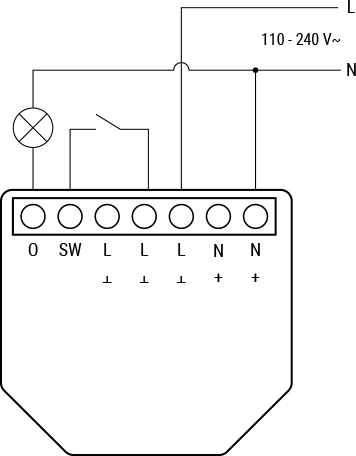

Plus 1PM AC wiring diagram-20240528-134438.png
110-240 VAC power supply Resistive load

Plus 1PM AC RC snubber-wiring-20240528-131329.png
110-240 VAC power supply
Inductive load and RC snubber

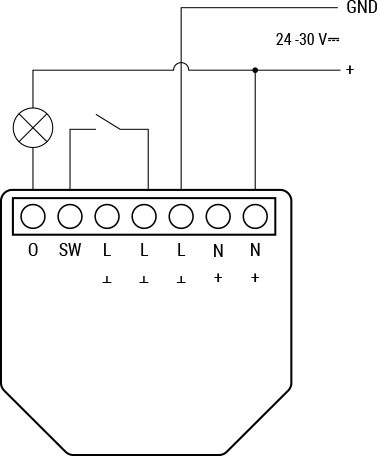

Plus 1pm dc-wiring-20240528-134643.png
24-30 VDC power supply

Resistive load

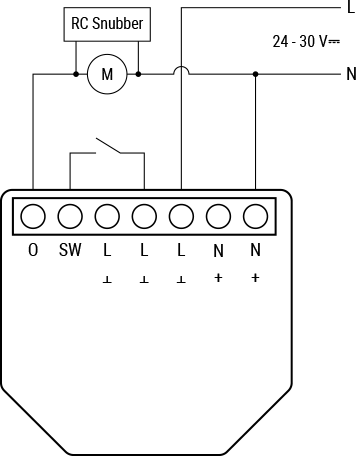

Plus 1PM DC RC snubber-wiring-20240528-131529.png
24-30 VDC power supply

Inductive load and RC snubber

Legend

Terminals

Wires

O

Load circuit output terminal

+

24 - 30 VDC positive wire

SW

Switch (controlling O) input terminal

N

Neutral wire

L

Live (110-240 V) terminal

GND

24 - 30 VDC ground wire

N

Neutral terminal





+

24 - 30 VDC positive terminal





24 - 30 VDC ground terminal

Troubleshooting

Your device is overheating.

Make sure you are not using the L and N device terminals as bridges. Using them as bridges doubles the current through them which leads to overheating. Using the terminals as bridges in only available with low currents, so that the total current does not exceed 16 A.

Make sure the ambient temperature does not exceed 40 °C / 105 °F. If placed in confined space Shelly Plus 1PM may increase the ambient temperature above the allowed limits. Ensure ventilation of the Device.
