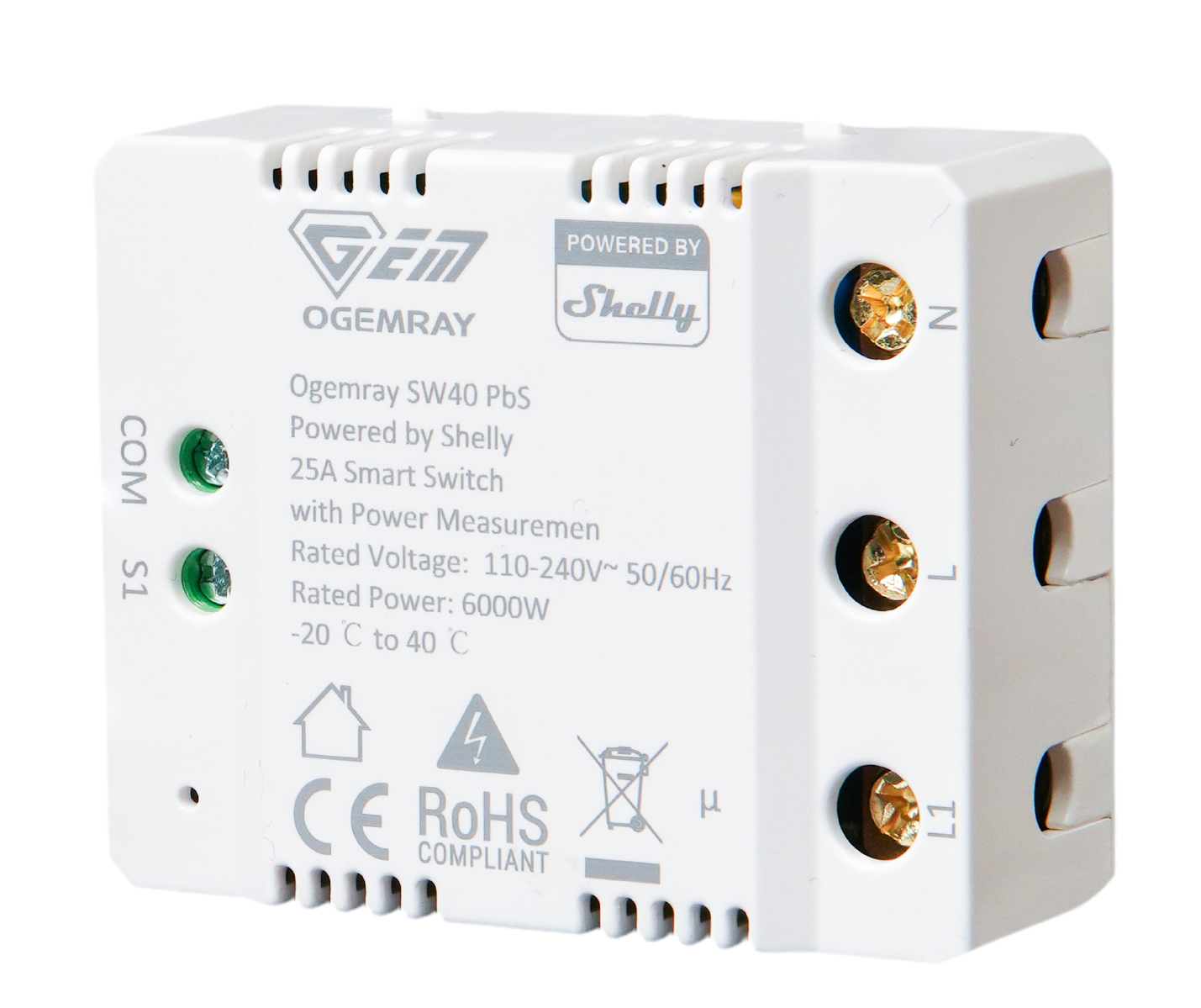

Device identification
Device type: 25A smart switch
Device model: Ogemray SW40 PbS
Main features
-
1 output up to 25 A / 6000 W
-
Overvoltage protection with auto recovery
-
Overpower protection
-
Power metering to save energy
-
Supports one input with flexible configuration
-
Large terminals
-
Compact form factor
-
Wall mounting anchors and bracket included
-
Virtual components
-
Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
-
Supports KNXnet / IP communication
Connectivity
-
Wi-Fi
-
Bluetooth
Safety functions
-
Overvoltage protection with auto recovery
-
Overpower protection
Specifications
|
Category |
Specification |
Value |
|---|---|---|
|
Physical |
Size (HxWxD) |
60x52.4x24 mm / 2.36x2.06x0.94 in |
|
|
Weight |
52 g / 1.83 oz |
|
|
Screw terminals max torque |
0.4 Nm / 3.5 lbin |
|
|
Conductor cross section |
2.5 to 6.0 mm² / 14 to 9 AWG (solid, stranded, and boot-face ferrules) |
|
|
Conductor stripped length |
6 to 7 mm / 0.24 to 0.28 in |
|
|
Shell material |
Plastic |
|
Environmental |
Ambient working temperature |
-20°C to 40°C / -5°F to 105°F |
|
|
Humidity |
30% to 70% RH |
|
|
Max. altitude |
2000 m / 6562 ft |
|
Electrical |
Power supply |
110 - 240 V~ 50/60Hz |
|
|
Power consumption |
< 1.2 W |
|
Output circuits ratings |
Max. switching voltage |
240 V~ |
|
|
Max. switching current |
25 A |
|
|
Max. power |
6000 W |
|
Sensors, meters |
Voltmeter (AC) |
Yes |
|
|
Ammeter (AC) |
Yes |
|
Wi-Fi |
Protocol |
802.11 b/g/n |
|
|
RF band |
2412 - 2472 MHz |
|
|
Max. RF power |
< 20 dBm |
|
|
Range |
Up to 50 m / 165 ft outdoors, up to 30 m / 99 ft indoors (depending on local conditions) |
|
Bluetooth |
Protocol |
5.0 |
|
|
RF band |
2402 - 2480 MHz |
|
|
Max. RF power |
< 4 dBm |
|
|
Range |
Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
|
Microcontroller unit |
CPU |
ESP-Shelly-C38F |
|
|
Flash |
8 MB |
|
Firmware capabilities |
Schedules |
20 |
|
|
Webhooks (URL actions) |
20 with 5 URLs per hook |
|
|
Wi-Fi range extender |
Yes |
|
|
BLE Gateway |
Yes |
|
|
Scripting |
Yes |
|
|
MQTT |
Yes |
|
|
Encryption |
Yes |

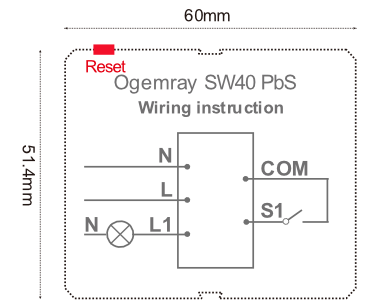

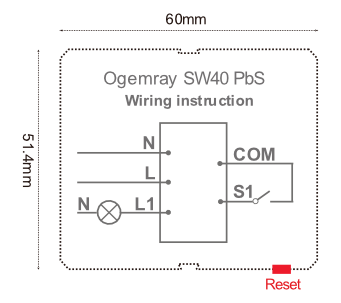

Wiring diagram
Legend
L1: Load circuit output terminal
S1: Switch input terminal (controlling L1)
L: Live terminal (110-240 V~)
N: Neutral terminal
COM
Shelly Smart Control
Adding the device to Shelly Smart Control
Shelly web user interface
Disposal and recycling
Do not dispose of the product in household waste. Recycle the product to prevent environmental and health damage and to promote resource conservation. Dispose of the product at an appropriate waste collection point at your own responsibility.
Resellers, from which the Device was purchased, are required to accept Waste Electrical and Electronic Equipment (WEEE) free of charge for proper disposal.
Some electronic products may store personal data. The user is responsible for deleting this data before disposing of the Device. For deletion, reset the device to its factory settings.
