Sprinkler Controller FK-06X | Shelly Knowledge Base

Device identification

Device type: Smart sprinkler controller

Device model: FK-06X

Main features

Controls up to 6 irrigation zones
24 VAC outputs for water valve control
Standalone operation: on-device buttons & LEDs
Historical weather information to prevent overwatering
Advanced scheduling, zone sequencing and automation

Connectivity

Wi-Fi
Bluetooth

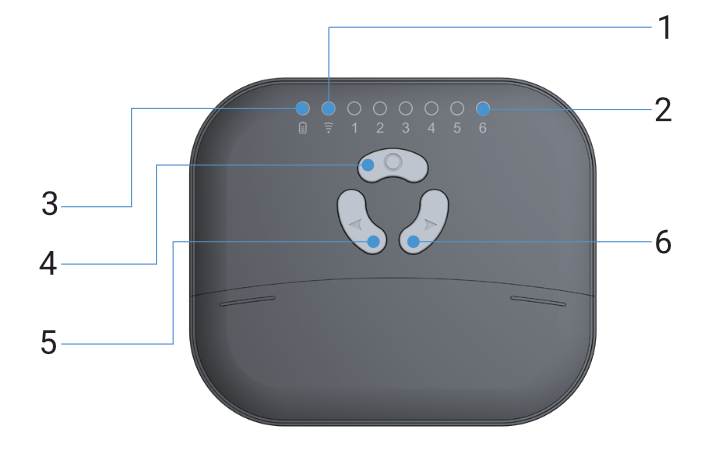

User interface

Wi-Fi indicator
Zone indicator
Power indicator
Select button
Up button
Down button

Specifications

Parameter	Value
Input/Output Rating of the Controller	24 V AC, 2000 mA
Operating temperature and humidity	-10°C to 55°C, 0% to 90% RH, non-condensing
Size (H×W×D)	96 × 112 × 28 mm / 3.78 × 4.41 × 1.10 in
Weight	126 g / 4.44 oz
Shell material	Plastic
Color	Black
Mounting	Wall-mounted
Adapter Input	USA: 120 V AC, 60 Hz EU: 230 V AC, 50 Hz
Adapter Output	24 V AC, 2000 mA
Wi-Fi
Protocol	802.11 b/g/n
RF band	2412 - 2484 MHz
Max. RF power	< 20 dBm
Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol	5
RF band	2402 - 2480 MHz
Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Smart capabilities
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	No
MQTT	Yes
UDP	Yes
Advanced schedules	Yes
KVS (Key-Value Store)	Yes

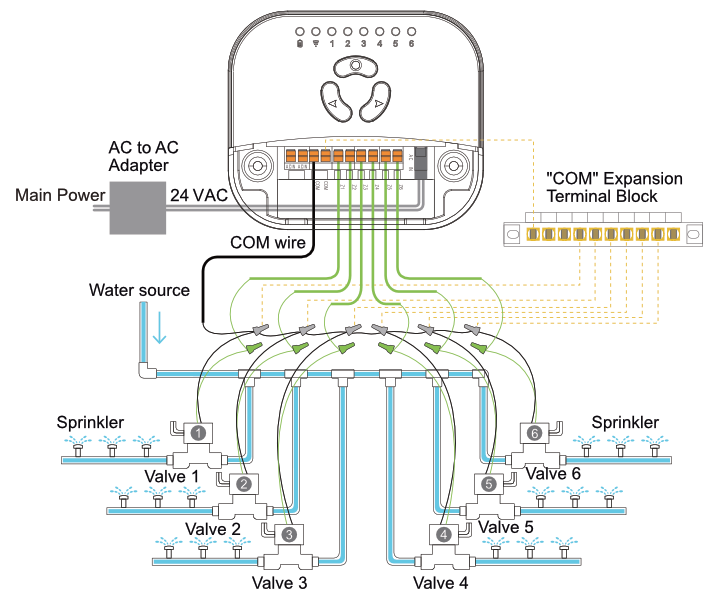

Wiring diagram

Shelly Smart Control

Adding the device to Shelly Smart Control

Shelly web user interface

Accessing local web interface

Troubleshooting

Problem	Possible cause	Possible solution
Connection issues.	Wi-Fi signal.	Ensure the Wi-Fi signal has at least 2 bars of strength at the controller's location. If not, relocate the router closer or use a Wi-Fi range extender.
	The App shows that the controller is offline and the Wi-Fi indicator on the Controller is blinking.	Check your local network. Are the other connected devices working properly? Try to re-connect the controller to your Wi-Fi router.
	Failed to connect the controller to Wi-Fi network.	Make sure that the Wi-Fi network is 2.4GHz.
Programmed schedules and manual watering functions don't start.	Water source is not supplying water.	Verify there is no disruption to the main water line, and all other water supply lines are open and functioning properly.
	The wiring is loose or not properly connected.	Check that all the wiring is correctly and tightly connected.
	Valve wires are corroded or damaged.	Inspect valve wiring for damage and replace if necessary. Replace wiring connections with watertight splice connectors if needed.
	Date/time is not set correctly / not connected to Wi-Fi & Internet.	Connect the controller to Wi-Fi with a stable internet connection to synchronize the time. Schedules are inactive when date/time is not set correctly.

Disposal and recycling

Do not dispose of the product in household waste. Recycle the product to prevent environmental and health damage and to promote resource conservation. Dispose of the product at an appropriate waste collection point at your own responsibility.

Resellers, from which the Device was purchased, are required to accept Waste Electrical and Electronic Equipment (WEEE) free of charge for proper disposal.

Some electronic products may store personal data. The user is responsible for deleting this data before disposing of the Device. For deletion, reset the device to its factory settings.
