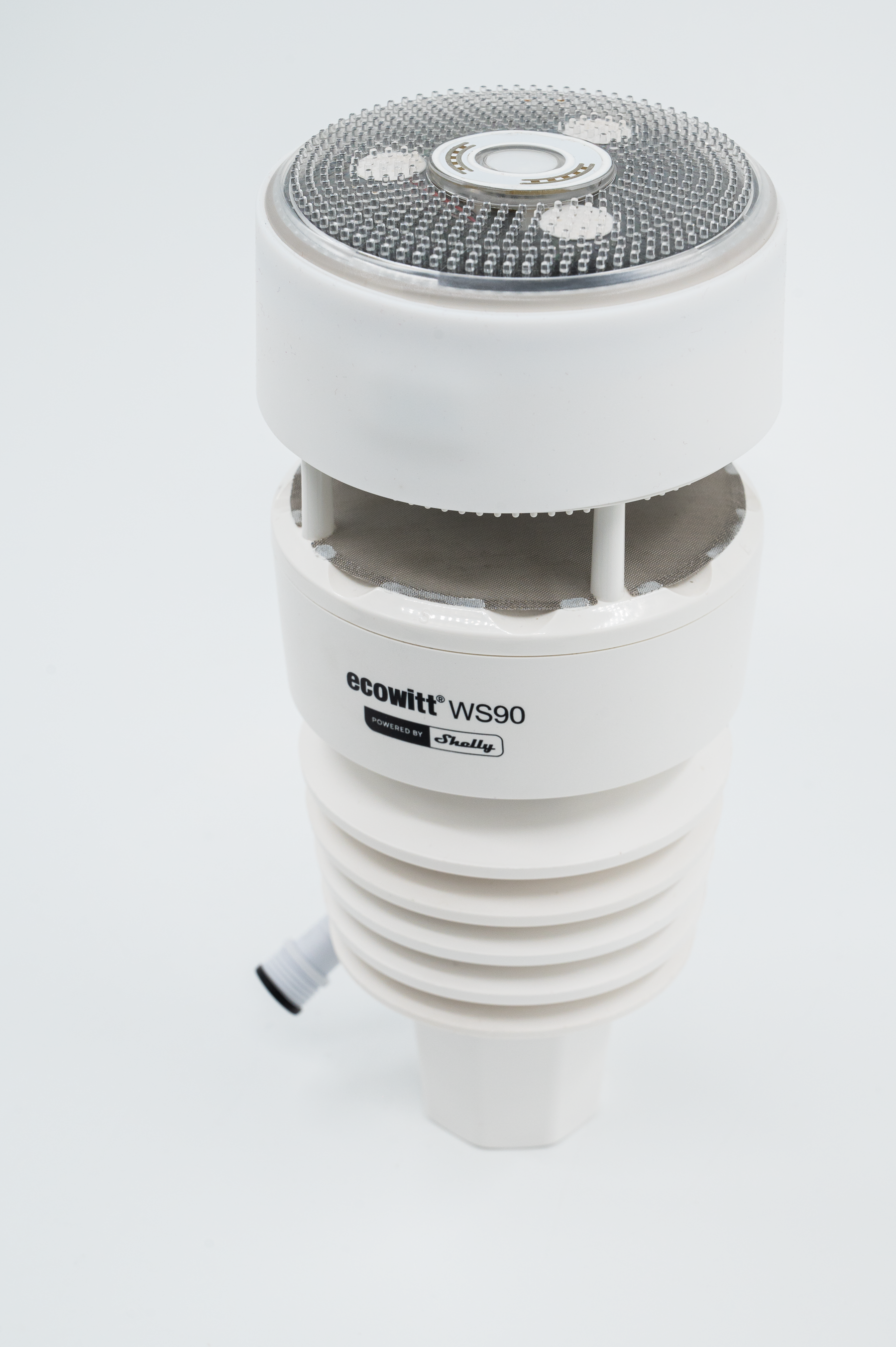

WS90 7-in-1 weather station


Device identification

Device type: 7-in-1 Wireless haptic sensor array

Device model: WS90

Main features

  • 7-in-1 wireless haptic sensor array

  • Ultrasonic wind monitoring, haptic rain detection, temperature and humidity tracking, UV, and illuminance measurements

  • Dual connectivity

  • Bluetooth and Zigbee

  • Sensors

  • Temperature range -40 to +60 °C and humidity 0-99% RH

  • Solid-state sensors with no moving parts

  • Reports to multiple gateways at once

  • Pressure trend alerts

  • Adjustable sensor offsets

  • Solar-powered with AA battery backup

  • IPX5-rated housing

Connectivity

  • Bluetooth

  • Zigbee

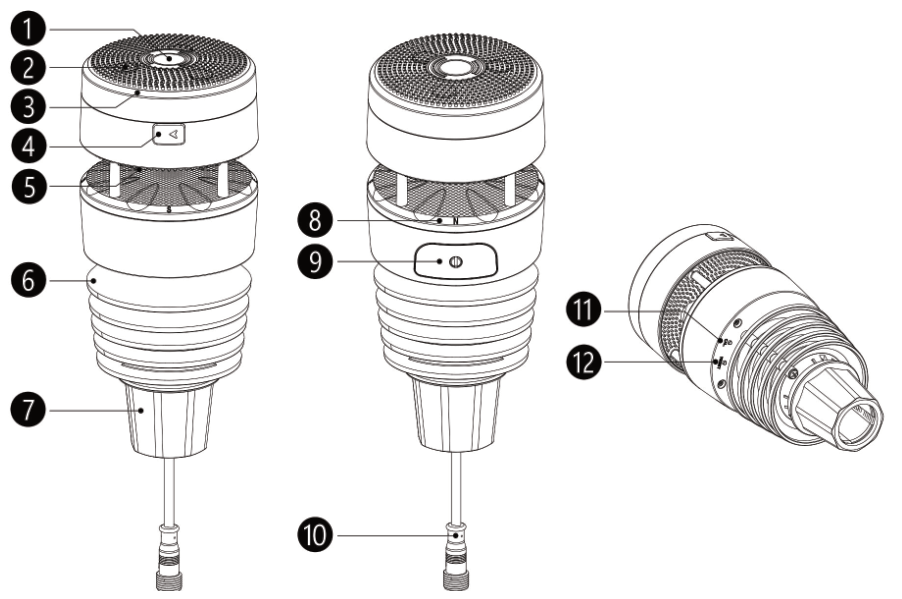

User interface


  1. Light and UV sensor, LED indicator

  2. Haptic rainfall sensor

  3. Solar panel

  4. USB port (factory use only)

  5. Ultrasonic wind sensor

  6. Temperature and humidity sensor

  7. Mounting ring (for Ø25 mm / 1 inch poles)

  8. North direction alignment indicator

  9. Battery compartment

  10. Power supply (heating) cable

  11. Calibration button

  12. Reset button

Specifications

Technical

Specification

Value

Size (H × W × D)

208 × 93 × 93 mm / 8.19 × 3.66 × 3.66 inch

Weight

459 g / 16.2 oz (without batteries), 507 g / 17.88 oz (with batteries)

Mounting

On a Ø25 mm / 1 inch pole

Shell material

Plastic

Shell color

White

Ambient working temperature

-40°C to 60°C / -40°F to 140°F

Humidity

1 to 99% RH

Degree of protection

IPX5

Power supply

• 2 × AA 1.5 V Lithium batteries (not included)
• Built-in solar panel 7.5 V ± 5% / 30 mA ± 10%
• 12 VDC / 1 A external power supply (not included)

Estimated battery life

Up to 6 months with lithium batteries (depending on temperature, humidity, and network strength).

Bluetooth

Protocol

Bluetooth 5 LE

RF band

2402 – 2480 MHz

Max. RF power

< 20 dBm

Range

Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors (depends on local conditions)

Zigbee

Protocols

802.15.4

RF bands

2405 to 2480 MHz

Max. RF power

< 20 dBm

Range

Up to 100 m / 328 ft indoors and 300 m / 984 ft outdoors (depends on local conditions)

Sensors

Sensor

Details

Wind speed

Range: 0 m/s to 40 m/s
Accuracy: <10 m/s, ±1 m/s;
≥10 m/s, ±10%
Resolution: 0.1 m/s

Wind gust

The max. wind speed in the past 28 seconds

Wind direction

Range: 0° to 359°
Accuracy: ±15°
Resolution: 1°

Temperature

Range: -40°C to 60°C / -40°F to 140°F
Accuracy: ±1°C (±1.8°F)
Resolution: 0.1°C (±0.2°F)

Humidity

Range: 1% RH to 99% RH
±5% RH
1% RH

Barometric pressure

300 hPa to 1100 hPa
(8.86 inHg to 32.48 inHg)

Light

Range: 0 to 200 klx
Accuracy: ±25%
Resolution: 0.1 klx

UV index

Range: 1 to 15
Accuracy: ±2
Resolution: 1

Rainfall

Range: 0 to 9999 mm
Accuracy:
<5 mm/h, ±20%;
5 mm/h to 50 mm/h, ±10%;
>50 mm/h, ±20%
Resolution: 0.1 mm

Shelly Smart Control

Adding the device to Shelly Smart Control

Shelly Web user interface

Accessing local web interface

Battery safety

CAUTION! Use lithium batteries. Using alkaline batteries in cold or wet conditions with the internal heater activated can cause overheating and leakage, resulting in damage to the Device. Do not use rechargeable NiMH or NiCd batteries, as they may not provide consistent power.

CAUTION! Do not mix old and new batteries, different brands or types of batteries.

CAUTION! Make sure the batteries are installed correctly according to polarity + and −.

WARNING! Do not attempt to charge non-rechargeable batteries. Charging non-rechargeable batteries can cause an explosion or fire, leading to serious injury or death.

CAUTION! Batteries can emit hazardous compounds or cause fire if not disposed of properly. Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.

Frequently asked questions

Q: How often does the sensor measure and report weather conditions?
A: Weather readings are taken every 2 seconds, and data is reported every 9 seconds.

Q: Why does the top of the device have an inclined center?
A: The inclined central area is a design feature that reduces water droplet accumulation, helping to maintain accurate rainfall measurements.

Disposal and recycling

Do not dispose of the product in household waste. Recycle the product to prevent environmental and health damage and to promote resource conservation. Dispose of the product at an appropriate waste collection point at your own responsibility.

Resellers, from which the Device was purchased, are required to accept Waste Electrical and Electronic Equipment (WEEE) free of charge for proper disposal.

Some electronic products may store personal data. The user is responsible for deleting this data before disposing of the Device. For deletion, reset the device to its factory settings.
