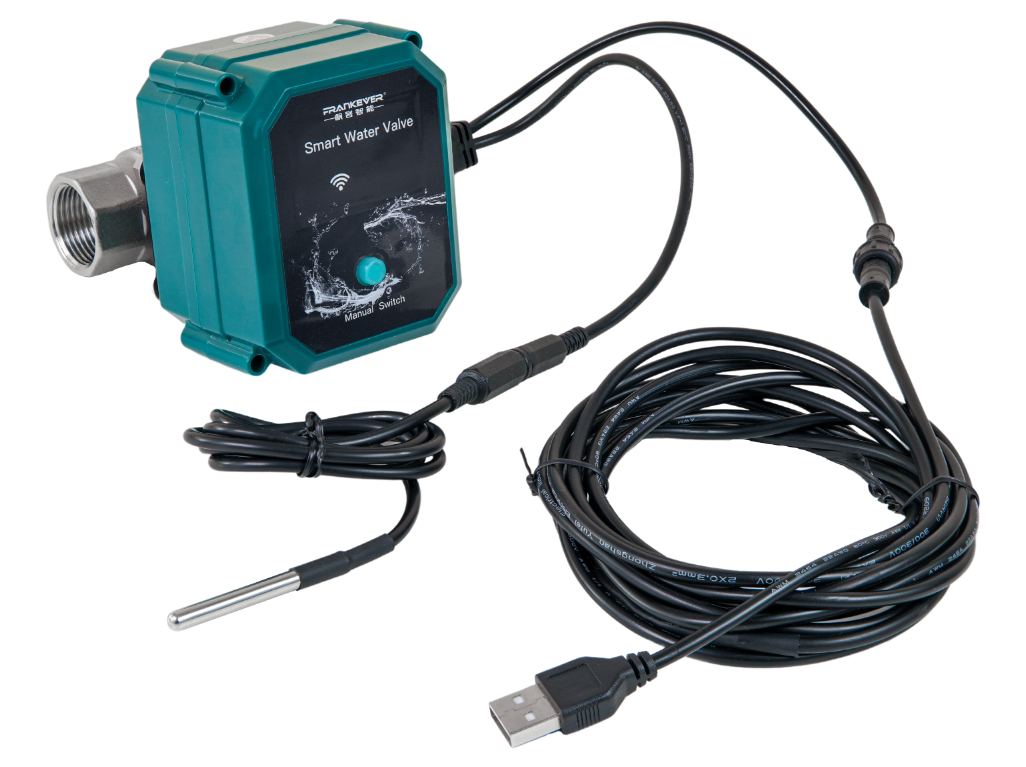

Frankever smart water valve | Shelly Knowledge Base

Device identification

Device type: Smart water valve

Device model: FK-V02

Main features

Drinking water certified valve (NSF)
Supports temperature sensor DS18B20
Power reserve to perform open/close on power loss
Precise valve open control 0-100%
Powered by a standard 2 A USB type A

Connectivity

Wi-Fi
Bluetooth

Specifications

Specification	Value
Description	Ball valve, stainless steel
Model	FK-V02
Material	SS304 & Engineering Plastics
Available sizes	DN15, DN20, DN25, DN32
Screw thread	NPT BSP
Max. pressure	1.0 MPa
Input Voltage	DC 5V, 2A by USB adapter
Ambient temperature	-30°C to 60°C
Water temperature	0°C to 90°C
Ingress Protection	IP65

Shelly Smart Control

Adding the device to Shelly Smart Control

Shelly web user interface

Accessing local web interface

Disposal and recycling

Do not dispose of the product in household waste. Recycle the product to prevent environmental and health damage and to promote resource conservation. Dispose of the product at an appropriate waste collection point at your own responsibility.

Resellers, from which the Device was purchased, are required to accept Waste Electrical and Electronic Equipment (WEEE) free of charge for proper disposal.

Some electronic products may store personal data. The user is responsible for deleting this data before disposing of the Device. For deletion, reset the device to its factory settings.
