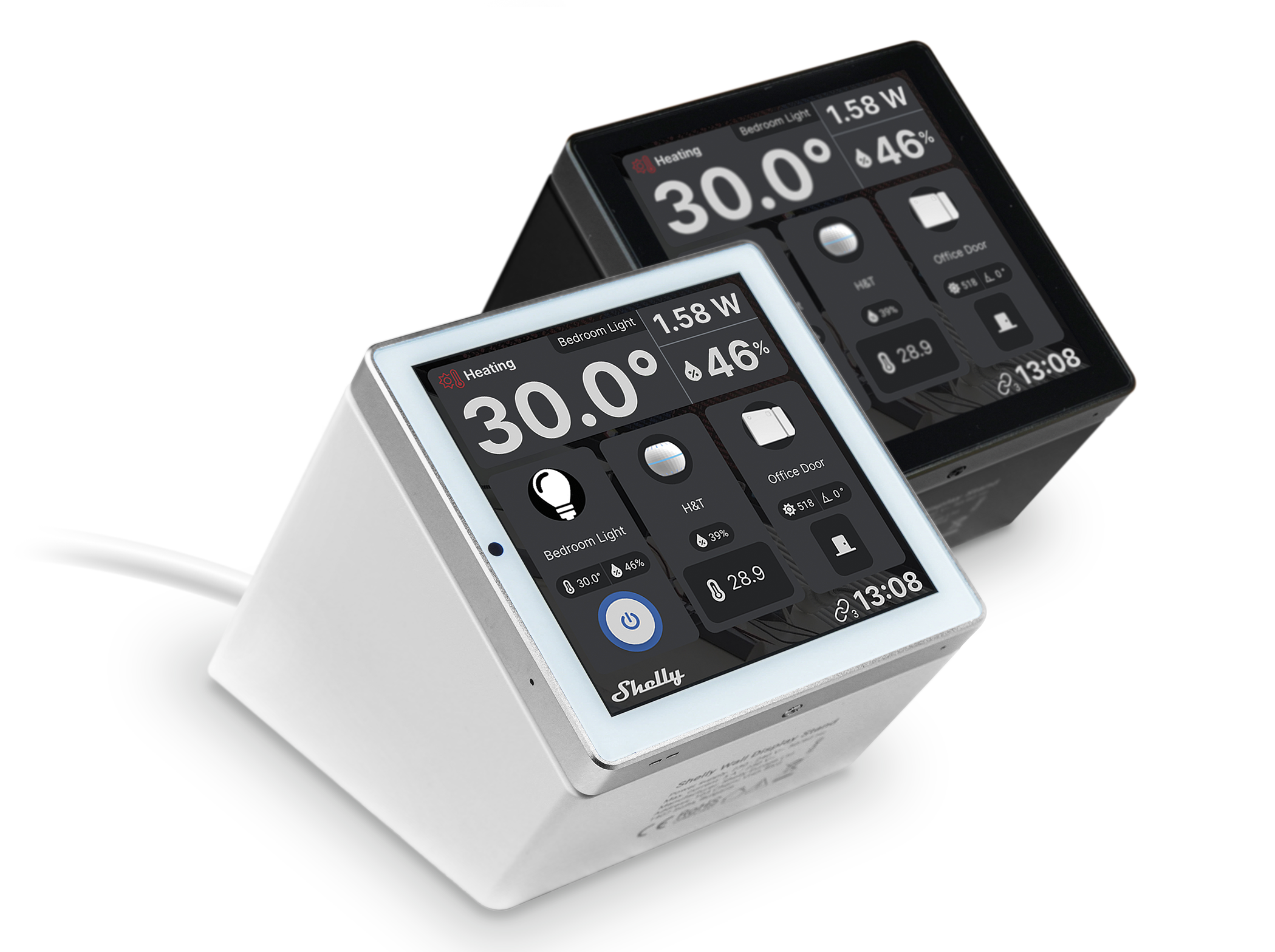

Shelly Wall Display Stand
Short description
A tabletop stand for Shelly Wall Display with the option to install a Shelly Socket for Wall Display Stand or a Shelly USB Charger for Wall Display Stand.
Main features
One contact plug (Schuko, type F, CEE 7/4).
Non-slip pad on bottom that ensure the Shelly Table stand for Wall Display does not move when using the touch-screen of the Shelly Wall Display.
The Shelly Table Stand for Wall Display is setting the Shelly Wall Display under 35° viewing angle for ease of interacting.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

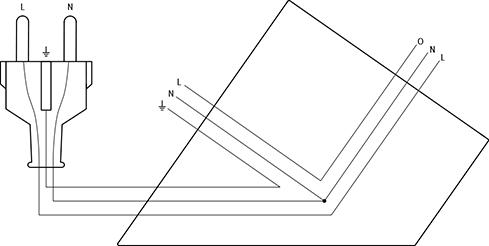

Simplified internal schematics
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 87x87x113mm / 3.43x3.43x5.24 inch |
Weight: | 314 g / 11.08 oz |
Shell material: | Plastic |
Shell color: |
|
Environmental | |
Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
Humidity: | 30% to 70% RH |
Electrical | |
Power supply: | 230 - 240 V~ 50/60 Hz |
Wiring diagrams

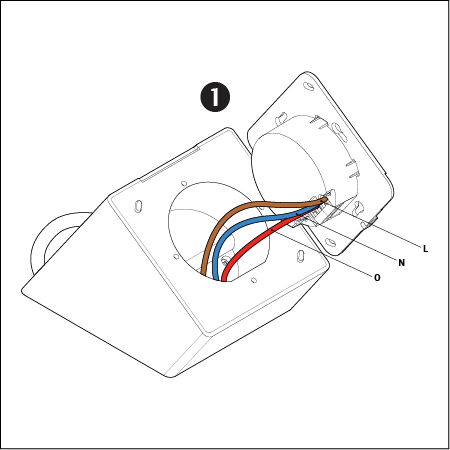

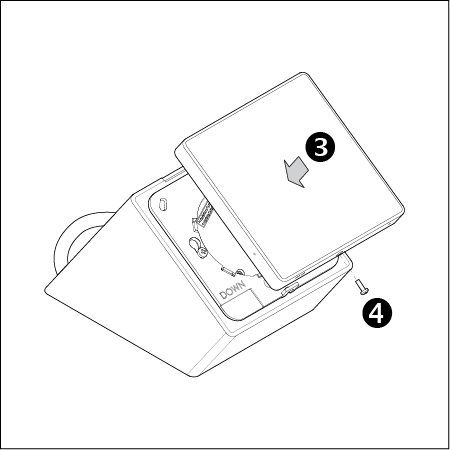

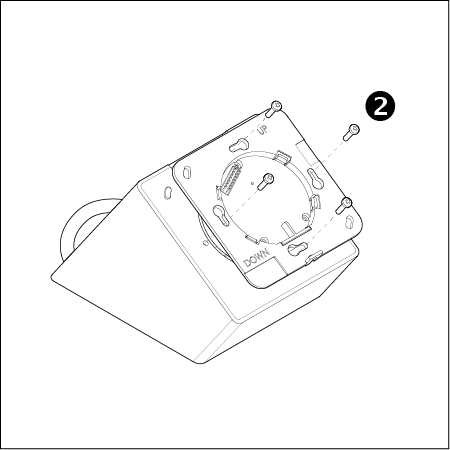

Power and Display Module Installation

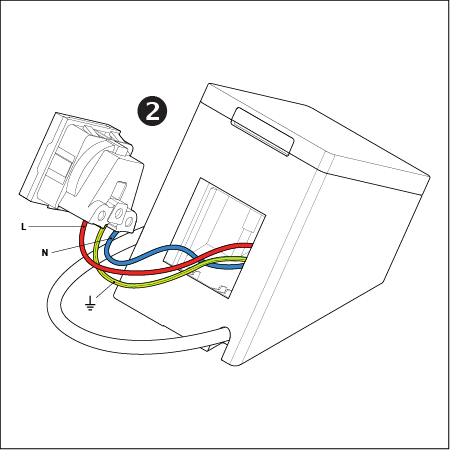

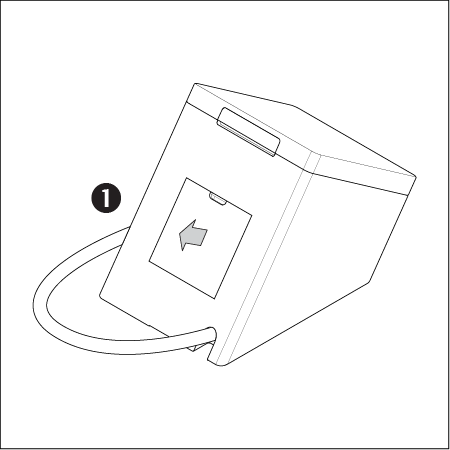

Type F (CEE 7/3) Electrical Socket Installation

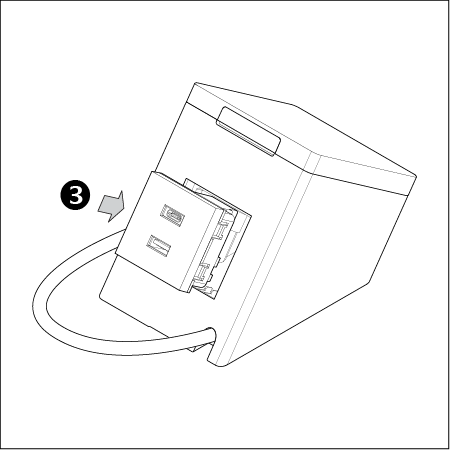

USB Power Supply Installation
Troubleshooting
…
Compliance and certification
Compliance
Shelly Wall Display Stand multilingual EU declaration of conformity.pdf
Printed user guide
Shelly Wall Display Stand multilingual printed user and safety guide.pdf
Shelly Socket for Wall Display Stand multilingual printed user and safety guide.pdf
Shelly USB Charger for Wall Display Stand multilingual printed user and safety guide.pdf
