Shelly Bypass for Dimmer


Device identification

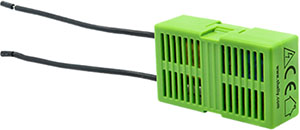

  • Device name: Shelly Bypass for Dimmer

Short description

Shelly Bypass for Dimmer is required for Shelly Dimmer Gen3 (and up) to work without the need of Neutral wire, when controlling loads less than 20 W

Compatibility:

Compatible with Shelly Dimmer Gen3 and up.

Main features

  • Perfect to retrofit: The device can be mounted behind the light, requiring minimal space. It connects to both the Neutral and Live wires.

  • No minimum load condition for other Shelly devices: The device is a Bypass needed for the Shelly Dimmer Gen3 (and up) to work without a Neutral wire.

  • Compatibility: It is designed and tested to ensure compatibility with а wide range of lights.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Device electrical interfaces

Inputs

  • 2 line inputs on cables: 1 O (output coming from Shelly Dimmer Gen3) and 1 N

Supported load types

  • Shelly Dimmer Gen3

Specifications

Quantity

Value

Physical

Size (HxWxD):

39x23x13 mm / 1.54x0.91x0.51 inch (without wires)

Weight:

8 g / 0.28 oz

Conductor cross section:

0.2 mm2 / 24 AWG stranded

Conductor stripped length:

0.5 mm / 0.02 in

Lenght of cables:

65±5 mm / 2.56±0.2 in

Mounting:

Inside Light Fixture

Shell material:

Plastic

Shell color:

Shell: Lime (same as Dimmer Gen3)

Print: Black

Cable color:

Black

Environmental

Ambient temperature:

-20° C to 40° C / -5° F to 104° F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

220-240 V~ 50 Hz

Power consumption:

< 4 W

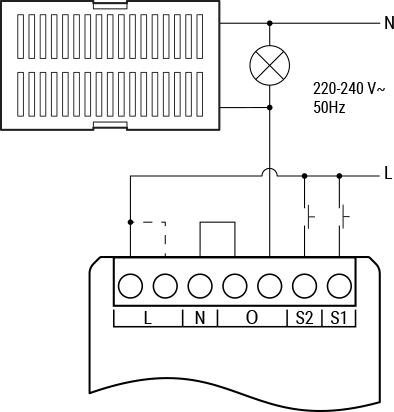

Basic wiring diagrams

Bypass Dimmer Gen3 wiring diagram.png

Compliance and certification

Shelly Bypass for Dimmer multilingual EU declaration of conformity.pdf

Printed User Guide

Shelly Bypass for Dimmer multilingual printed user and safety guide.pdf
