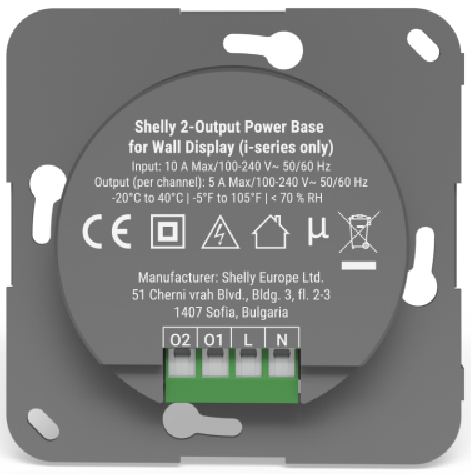

Device identification
-
Device name: Shelly 2-Output Power Base for Wall Display
-
Device model:
Short description
Shelly 2-Output Power Base for Wall Display is a power attachment for Shelly wall displays from the i-series, enabling switching of two output load circuits.
Compatibility
-
Shelly Wall Display X1i
-
Shelly Wall Display X2i
Main features
-
Back power supply attachment for Shelly wall displays from the i-series
-
Integrated two relays for light control
Use cases
-
Space-efficient fitting: Install a Shelly Wall Display from the i-series with the Shelly 2-Output Power Base for Wall Display in standard electrical wall boxes for light switches.
-
Light Control: Use it to remotely control and automate the operation of up to two lights.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college

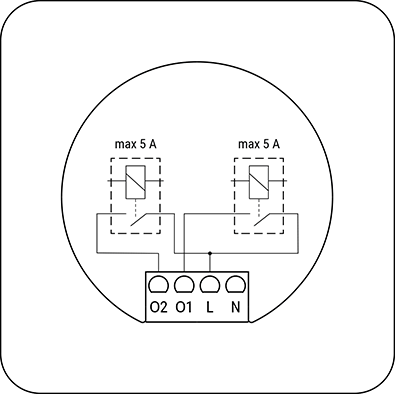

Simplified internal schematics
Device electrical interfaces
Inputs
-
2 power supply inputs on screw terminals: N and L
Outputs
-
2 relay output
Supported load types
-
Resistive - incandescent and halogen bulbs
-
Capacitive - LED bulbs, LED drivers, CFL (compact fluorescent lamps)
-
Inductive - LED light transformers
Specifications
|
Quantity |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
72.30x69.8x28.70 mm / 2.85x2.75x1.13 inch |
|
Weight: |
53.5 g / 1.89 oz |
|
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
|
Conductor cross section: |
0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
|
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 inch |
|
Mounting: |
Wall box |
|
Shell material: |
Plastic |
|
Shell color: |
Gray (CMYK: C-0%; M-0%; Y-0%; K-70%) |
|
Connectors color: |
Green |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
100-240 V~, 50/60Hz |
|
Output circuits ratings |
|
|
Max. switching voltage: |
240 V~ |
|
Max. switching current: |
5 A per channel |
|
Output: |
5 V⎓, 1 A |

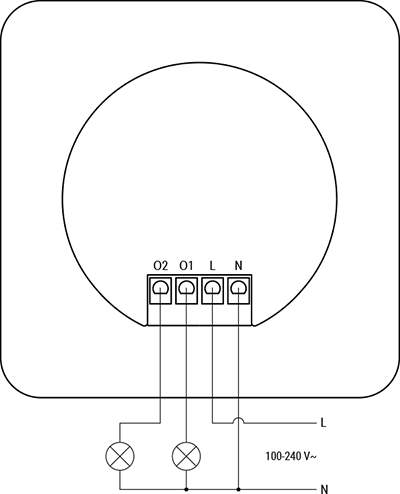

Wiring diagram
Legend
|
Terminals |
|
Wires |
|
|---|---|---|---|
|
O2 |
Load circuit output terminal 2 |
L |
Live wire (100-240 V~) |
|
O1 |
Load circuit output terminal 1 |
N |
Neutral wire |
|
L |
Live terminal (100-240 V~) |
|
|
|
N |
Neutral terminal |
|
|
