Shelly Wall Switch (1, 2 and 4)

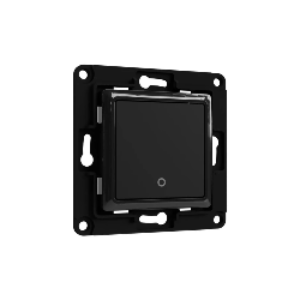

Shelly Wall Switch 1 in black

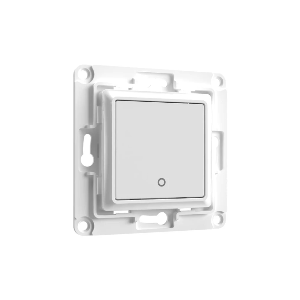

Shelly Wall Switch 1 in white

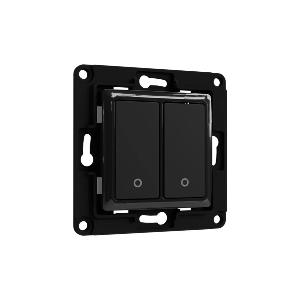

Shelly Wall Switch 2 in black

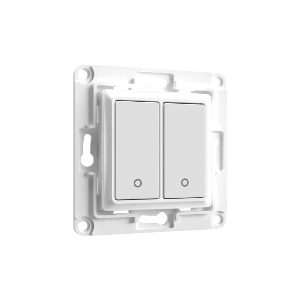

Shelly Wall Switch 2 in white

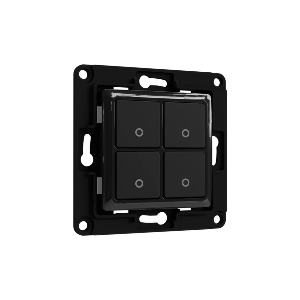

Shelly Wall Switch 4 in black

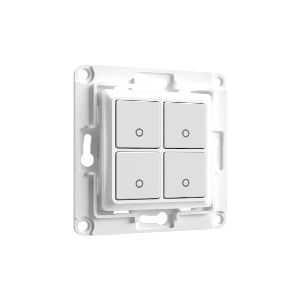

Shelly Wall Switch 4 in white

Short description

Shelly Wall Switch 1, 2, and 4 are accessories for Shelly devices. They come with attachable holders, which are used for hooking the device up to the Wall Switch.

Compatibility:

Shelly Wall Switch 1 comes with three attachable holders:

  • Holder 1 - compatible with Shelly 1/1PM

  • Holder 2 - compatible with

    • All Shelly Plus devices

    • Shelly 1 Gen3, Shelly 1PM Gen3, Shelly 2PM Gen3, Shelly i4 Gen3, Shelly Dimmer Gen3, and Shelly DALI Dimmer Gen3

    • Shelly 1 Gen4 and Shelly 1PM Gen4

  • Holder 3 - compatible with Shelly 1L / Shelly Dimmer 2

Shelly Wall Switch 2 comes with three attachable holders:

  • Holder 1 - for Shelly 2.5

  • Holder 2 - compatible with

    • All Shelly Plus devices

    • Shelly 1 Gen3, Shelly 1PM Gen3, Shelly 2PM Gen3, Shelly i4 Gen3, Shelly Dimmer Gen3, and Shelly DALI Dimmer Gen3

    • Shelly 1 Gen4 and Shelly 1PM Gen4

  • Holder 3 - compatible with Shelly 1L / Shelly Dimmer 2

Shelly Wall Switch 4 comes with a single holder, compatible with:

  • All Shelly Plus devices

  • Shelly 1 Gen3, Shelly 1PM Gen3, Shelly 2PM Gen3, Shelly i4 Gen3, Shelly Dimmer Gen3, and Shelly DALI Dimmer Gen3

  • Shelly 1 Gen4 and Shelly 1PM Gen4

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Specifications

Type

Value

Physical

Size (HxWxD):

70x70x12 mm / in (without holder)

Material:

Plastic

Color:

White / Black

Environmental

Ambient temperature:

-20° C to 70° C / -5° F to 158° F

Humidity:

up to 85%

Electrical

Maximum switching voltage:

12 VDC / 18 VAC

Maximum switching current:

50 mA

Printed User Guide

Multilanguage user guide - English, Deutsch, Italiano, Español, Português, Français

Compliance

Shelly Wall Switch multilingual EU declaration of conformity.pdf

Installation guides
