Shelly Socket for Wall Display Stand
Short description

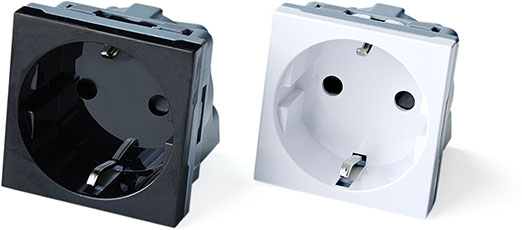

A CEE 7/3 (Type F / Schuko) electrical socket for Shelly Wall Display Stand.
Main applications:
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Compatibility
Shelly Wall Display Stand
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 45x45x40 mm / 17.72x17.723x15.75 in |
Weight: | 38 g / 0.04 oz |
Shell material: | Plastic |
Shell color: |
|
Environmental | |
Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
Humidity: | 30% to 70% RH |
Electrical | |
Power supply: | 230 V~ 50/60 Hz |
Max. input current: | 5 A / 230 V~ |

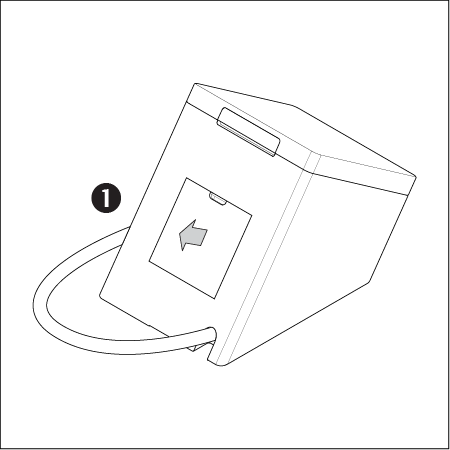

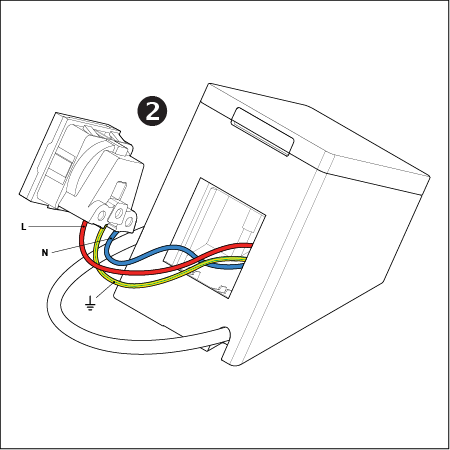

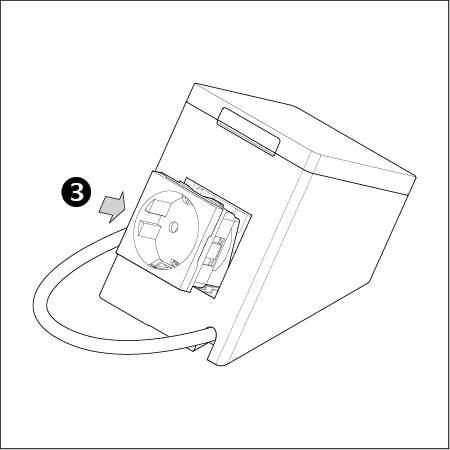

Wiring diagram
Compliance
Socket for Wall Display Stand multilingual EU declaration of conformity.pdf
Printed user guide
Shelly Socket for Wall Display Stand multilingual printed user and safety guide.pdf
