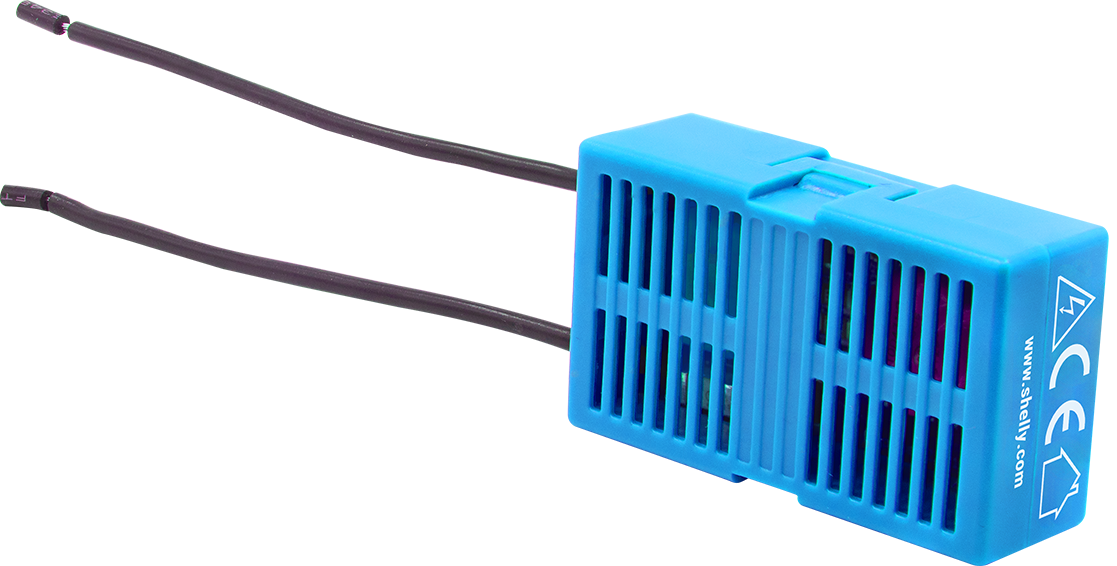

Short description
Shelly Bypass for 1L/2L is required for the Shelly 1L or 2L Gen3 to operate without a Neutral wire at 240 V~, 50 Hz.
Compatibility:
Compatible with Shelly 1L Gen3 and Shelly 2L Gen3.
Main features
-
Perfect for retrofitting: The Device can be mounted directly behind the light source where space is limited. It connects to Neutral and Live wires.
-
No minimum load condition for other Shelly devices: The Device is a bypass, allowing the Shelly 1L and 2L Gen3 to function correctly in installations without a Neutral wire.
-
Compatibility: Designed and tested to ensure compatibility with a wide range of lights.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
Device electrical interfaces
Inputs
-
2 line inputs on cables: 1 O (output coming from Shelly 1L/2L Gen3) and 1 N
Specifications
|
Quantity |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
39x23x13 mm / 1.54x0.91x0.51 inch (without wires) |
|
Weight: |
8 g / 0.28 oz |
|
Conductor cross section: |
0.2 mm2 / 24 AWG stranded |
|
Conductor stripped length: |
0.5 mm / 0.02 in |
|
Lenght of cables: |
65±5 mm / 2.56±0.2 in |
|
Mounting: |
Inside Light Fixture |
|
Shell material: |
Plastic |
|
Shell color: |
Cyan |
|
Cable color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20° C to 70° C / -5° F to 158° F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
240 V~, 50 Hz |
|
Power consumption: |
< 4 W |

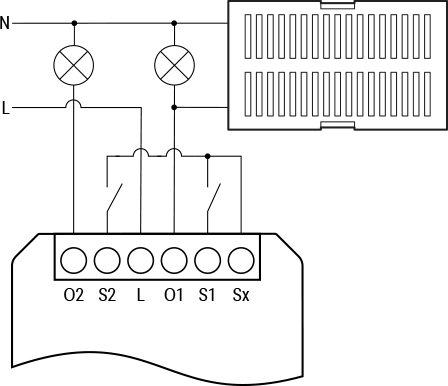

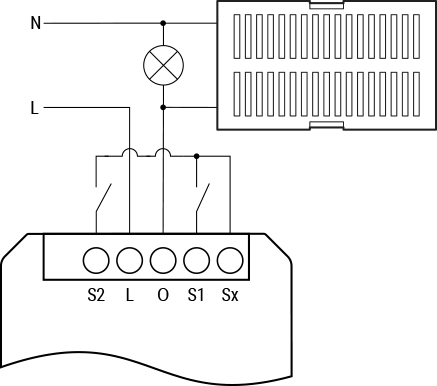

Basic wiring diagrams
|
|
|
Terminals |
|
Wires |
|
|---|---|---|---|
|
L |
Live (220-240 V~) terminal |
L |
Live (220-240 V~) wire |
|
O, O1, O2 |
Load circuit output terminals |
N |
Neutral wire |
|
S1, S2 |
Switch input terminals |
|
|
|
Sx |
Switch signal output terminal |
|
|
