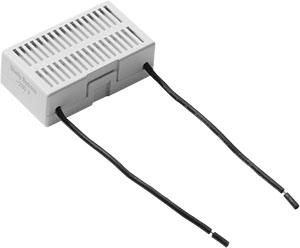

Shelly Bypass

Short description

Shelly Bypass is required for Shelly devices that do not need neutral wire to operate if the load they switch is less than 20 W at 240 VAC.

Compatibility:

Compatible with Shelly 1L, Shelly 2L, and Shelly Dimmer 2.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Specifications

Type

Value

Physical

Size (HxWxD):

39x23x13 mm / in (without wires)

Material:

Plastic

Color:

White

Environmental

Ambient temperature:

-20° C to 70° C / -5° F to 158° F

Humidity:

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Working voltage:

230 VAC

Power consumption:

<4 W

Printed User Guide

Multilanguage user guide - English, Deutsch, Italiano, Español, Português, Français

Installation guides
