Temperature sensor DS18B20 - 3.5mm jack

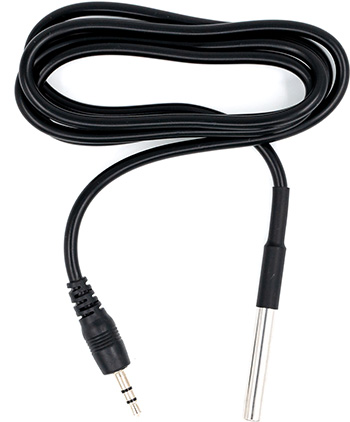

Device image(s)

Device identification

Device name: Temperature sensor DS18B20 - 3.5mm jack - 1m cable
Device model: N/A

Short description

Temperature sensor probe for environmental and liquids temperature measuring with a 3.5 mm jack connector and a 1 m cable.

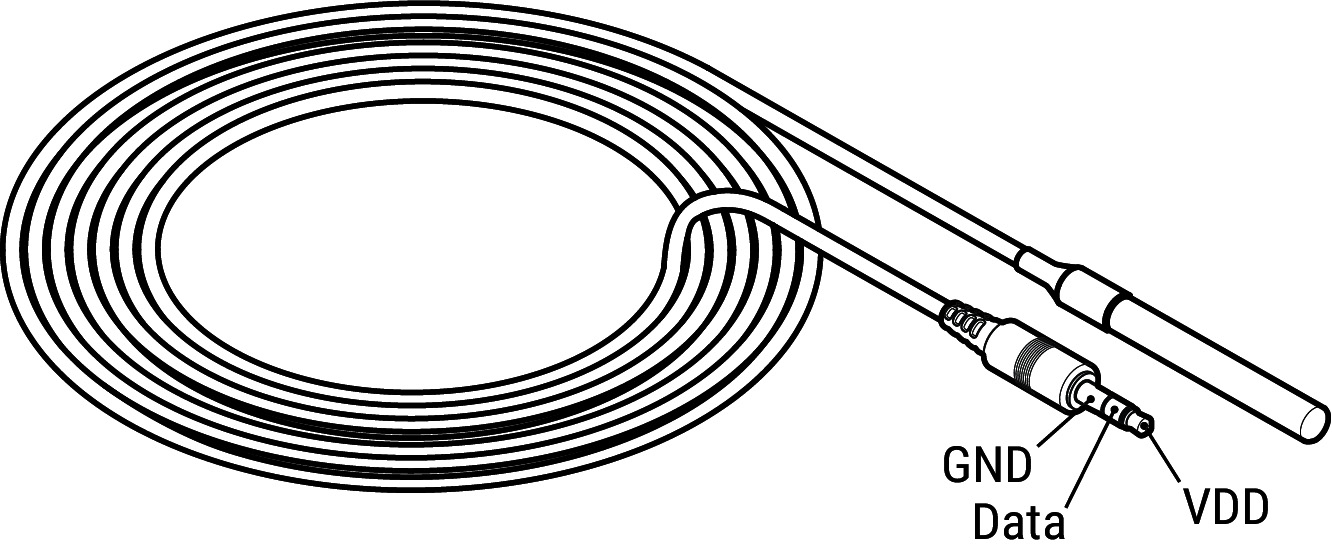

Simplified schematics

Temperature sensor DS18B20 - 3.5mm jack.jpg

Specifications

Physical
Size (Temperature Probe)	Length: 50 mm Diameter: 6 mm
Weight:	25 g
Cable length:	1 m
Cable material	Stainless steel cover
Cable color:	Black

Declaration of conformity

Printed user guide

Shelly temp sensor DS18B20-3-5_v01_print.pdf
