How to add BLU Gateway Gen3 to the Shelly Smart Control cloud application

  • The distance between the Gateway and your router should be less than 30 m.

  • The Gateway requires at least 500 mA to operate.

  • The Gateway works only with 2.4 GHz Wi-Fi networks.

Prerequisites

Before you start, make sure you have:

Installation

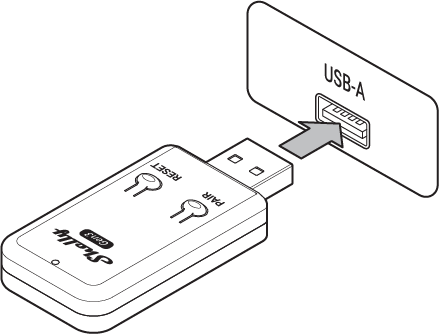

  1. Power up the Gateway by plugging it into a standard USB type A port. The LED indicator lights up in blue showing that the device is in Access Point mode.

Adding Shelly-BLU-Gateway-G3-to-Shelly cloud-web-v.1.0.png

  1. Open the Shelly Smart Control app on your mobile device.

  2. Select (plus) at the lower-right corner of the screen.

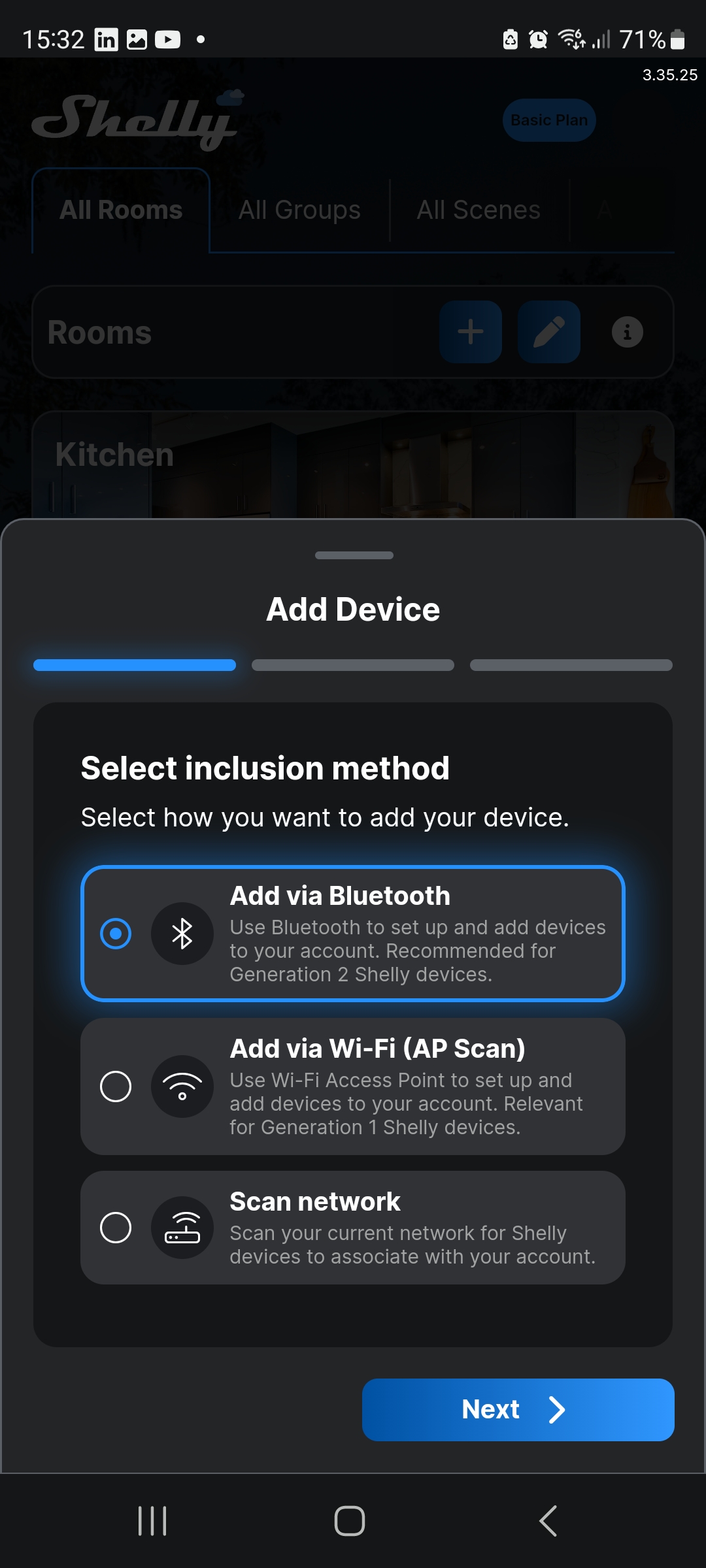

  1. Select Add via Bluetooth, then select Next.

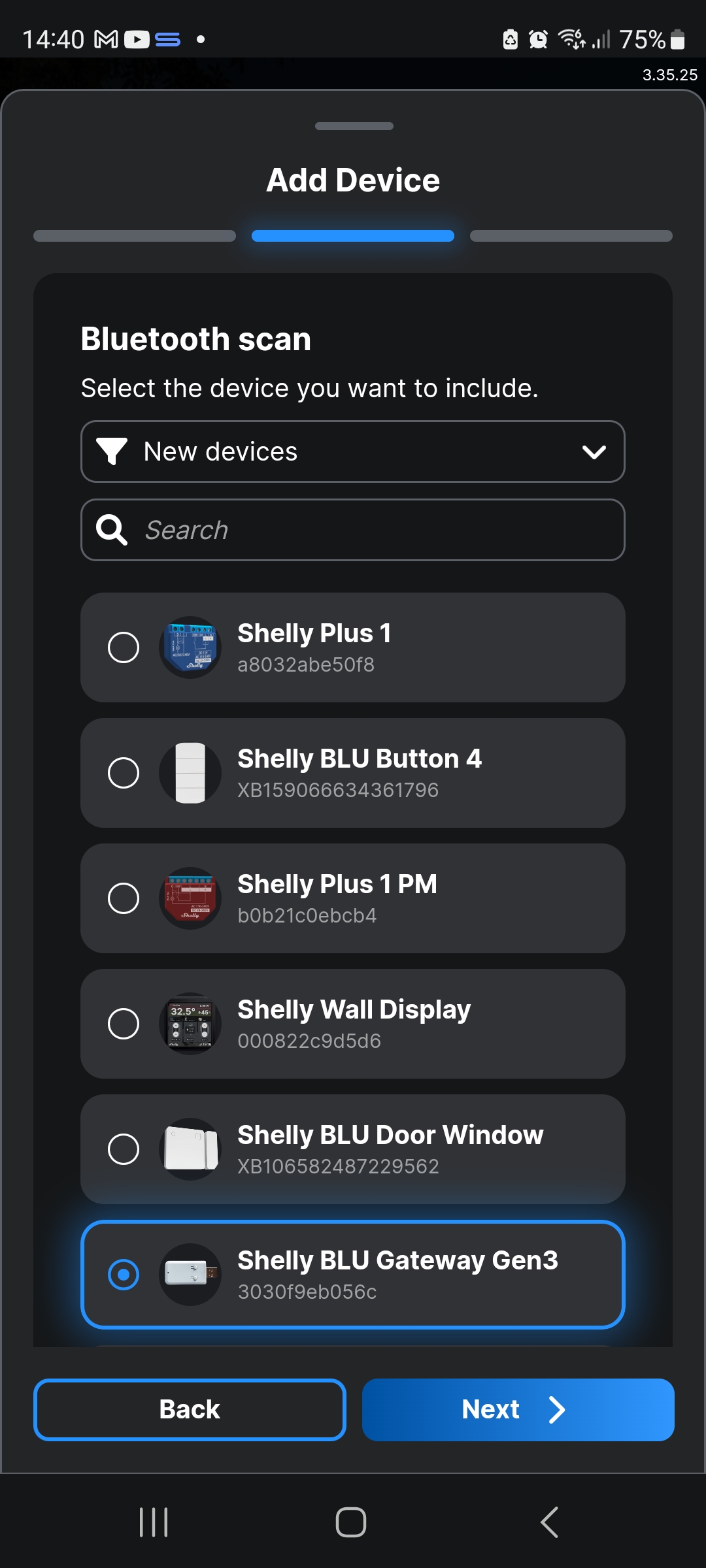

  1. Select Shelly Bluetooth Gateway Gen3, then select Next.

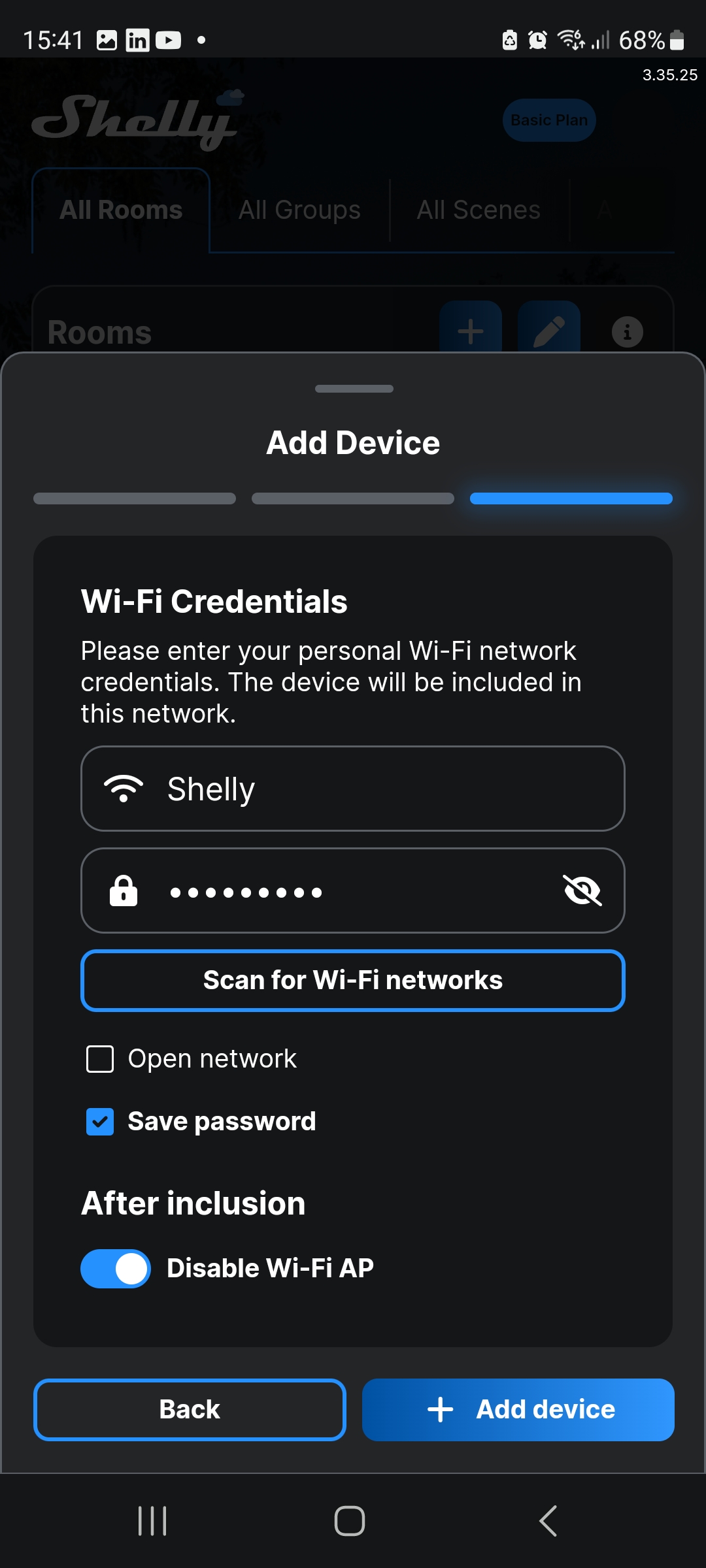

  1. Select the Wi-Fi network for connecting the Gateway, then select + Add device.

The LED indicator lights up in red showing that the device is connecting to the Shelly cloud.

If you have previously added devices and saved the network password, a message will appear asking you to confirm if you want to connect the new device to the same Wi-Fi network. If you want to change the network, select Edit .

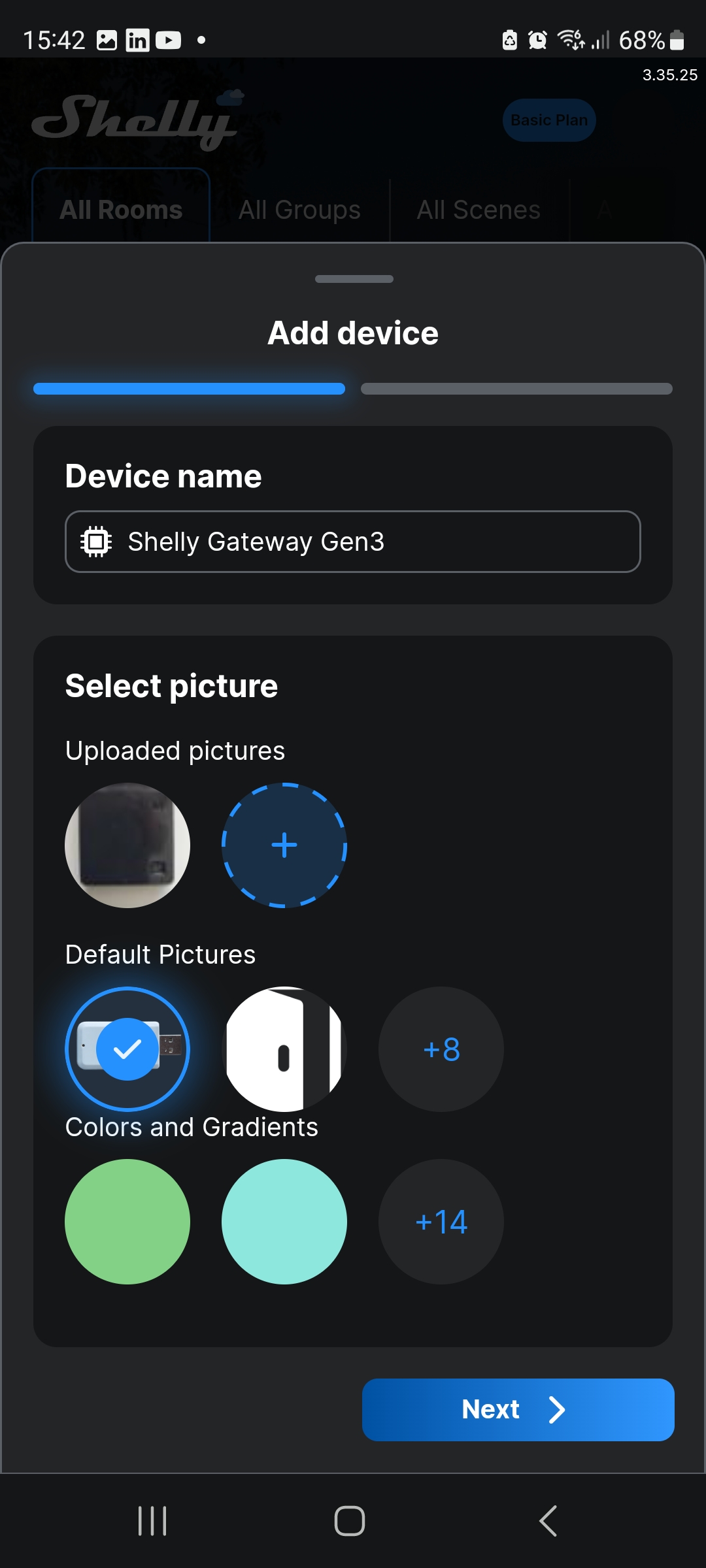

  1. Name the Device and select a picture. Then, select Next.

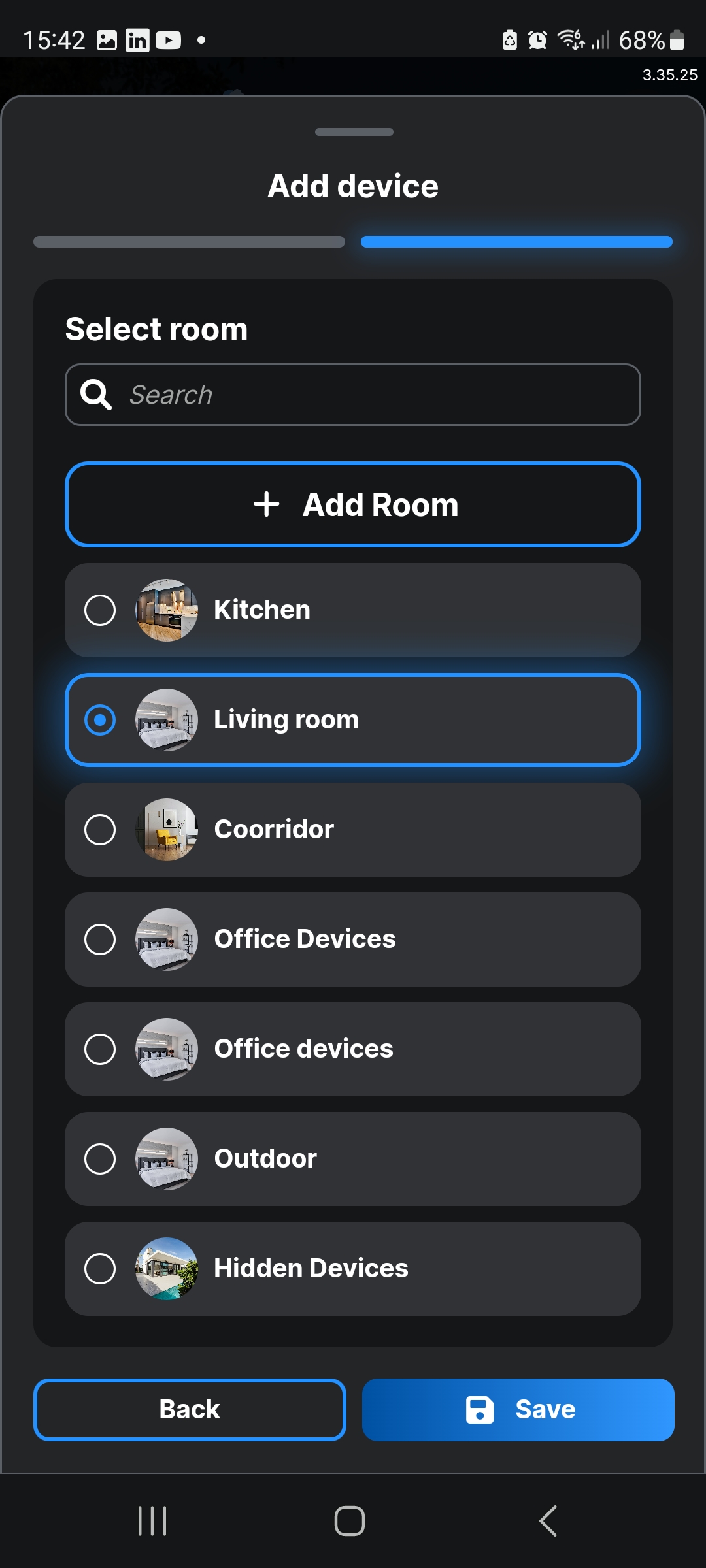

  1. Add the Gateway to a room of your preference. Alternatively, create a new room and then select Save.

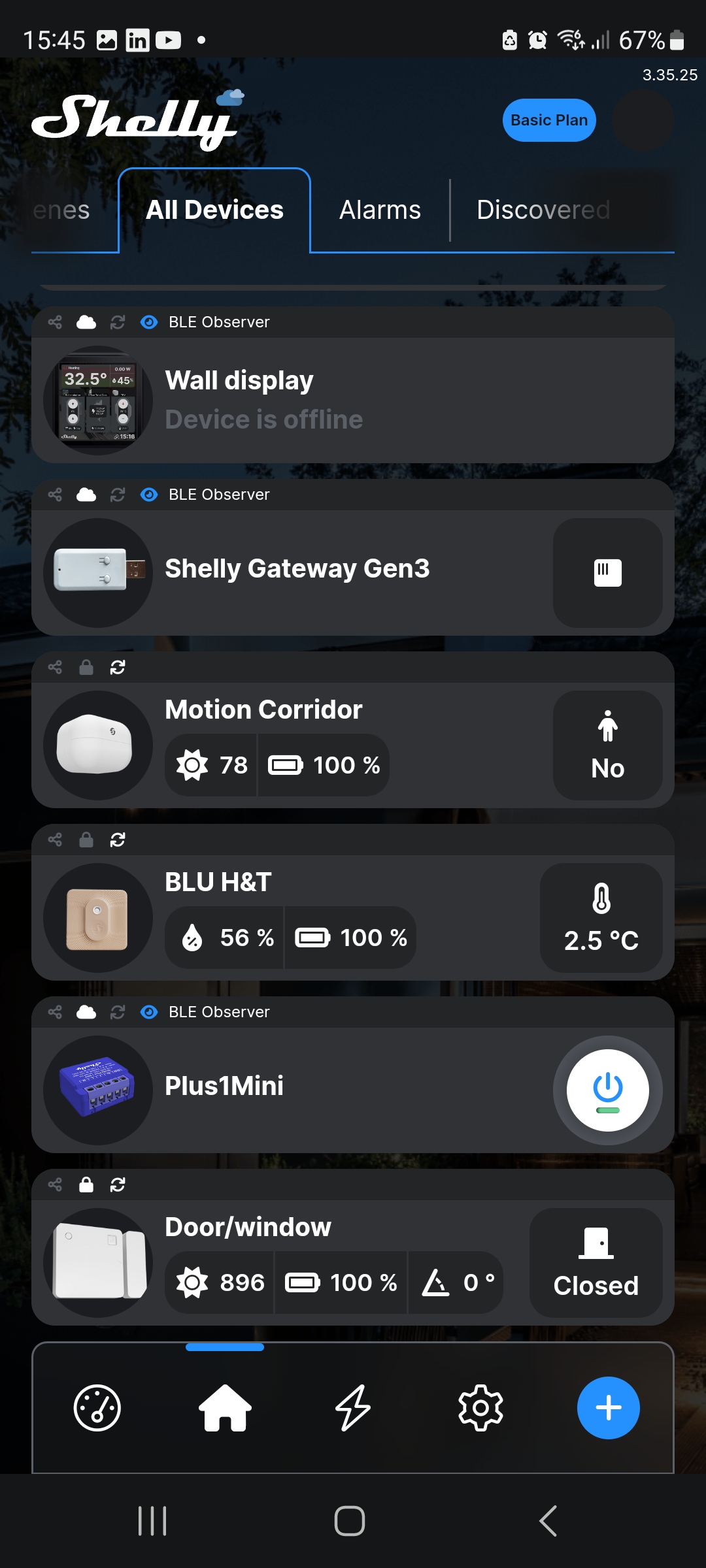

The Device is now added to your account.
