Shelly Plug M Gen3

Device identification

• Device name: Shelly Plug M Gen3

• Device model: S3PL-30110EU

• Device SSID: ShellyPlugMG3-XXXXXXXXXXXX

• BLE ID: 0x1865

Short description

Shelly Plug M Gen3 is a smart plug with power measurement, overheating protection, and Bluetooth connectivity. It allows remote control and monitoring of appliances through a mobile phone, tablet, PC, or home automation system. The Device can operate standalone in a local Wi-Fi network or be connected to cloud services, and includes an embedded web interface for setup, monitoring, and control.

Main features

• Matter support

• Next-generation Wi-Fi smart plug with multicolor LED indication

• Scripting (only supported when Matter is not enabled)

• Wi-Fi range extender

• BLE gateway

• Power metering

• Schedules

• Wide compatibility with 3rd party home automation systems

• Local actions

• Shelly Cloud/Shelly Smart Control app support (optional)

• Virtual Components

Use cases

• Smart control with Matter - seamless use with Apple devices:
  Shelly Plug M Gen3 works flawlessly with Apple Home, Alexa, Google Home, SmartThings and Home Assistant thanks to Matter support. You can instantly control lamps, heaters, fans, or any connected appliance using voice assistants, automations, or your preferred app. Enjoy simple setup, fast local control, and reliable operation across multiple ecosystems.

• Prevent forgotten appliances from wasting energy:
  Monitor and control all plugged-in appliances easily with just a few clicks on your phone. With the built-in countdown timer and locally stored schedules, Shelly Plug M Gen3 can automatically switch off appliances after a user defined period even without internet.
  Example: night lamps, fans, irons, portable ovens, electric heaters.

• Avoid energy waste by automating your electrical appliances:
  Automate appliances in the office that are not used at night or over the weekend by simply adding Shelly Plug M Gen3. Now, you can set smart schedules that will turn off the power to all unused electrical appliances between 7:00 PM and 7:00 AM during the weekdays and between 7:00 PM on Friday and 7:00 AM on Monday. That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.

• Automatic laundry / appliance cycle notification:
  Shelly Plug M Gen3 detects when an appliance’s power consumption drops, allowing you to receive a notification when a washing machine, dishwasher, or dryer finishes its cycle.

• Smart heater control based on temperature:
  Connect a portable heater and automate it using temperature data from another temperature sensor. The heater turns on when the room is cold and turns off automatically when the target temperature is reached.

• Presence simulation for home security:
  Use smart schedules to turn lamps or small appliances on and off when you're away from home, giving the appearance that someone is inside and improving security.

Main applications

• Residential

• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

• Government/municipal

• University/college

Integrations

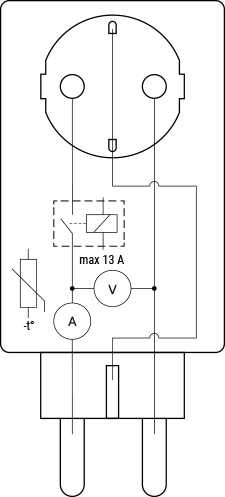

Simplified internal schematics

Device electrical interfaces

Input

• 1 CEE 7/7 plug

Output

• 1 CEE 7/3 (Type-F / Schuko) socket

Connectivity

• Wi-Fi

• Bluetooth

Safety function

• Overheating protection

• Overvoltage protection

• Overcurrent protection

• Overpower protection

Supported load types

• Resistive (incandescent bulbs, heating devices)

• Capacitive (capacitor banks, electronic equipment, motor start capacitors)

• Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

• One push button

  • Single press: Toggle the output On/Off.

  • Press and hold for 3 s: Show device status (Possible only when the output is Off).

  • Press and hold for 5 s: Enable Wi-Fi AP and Bluetooth (within 60 s after power-up).

  • Press and hold for 10 s: Perform factory reset (within 60 s after power-up).

Outputs

• LED indication

  • Device status:

    • Blue light flashing: AP mode active.

    • Red light flashing slowly: Reconnecting to Wi-Fi.

    • Constant red light: Failed to reconnect to Wi-Fi.

    • Red light flashing rapidly: Firmware update (OTA) in progress.

  • When output is on:

    • Green-Yellow-Red transition: By default indicates power consumption (0%-50%-100% of limit).

  • When output is off:

    • LED Off: Default state.

Specifications

Components and APIs

• This device

• All Shelly devices and services

Printed user guide

Shelly Plug M Gen3 multilingual printed user and safety guide.pdf

Compliance and certification

Shelly Plug M Gen3 multilingual EU declaration of conformity 259 2026-01-15.pdf

Installation guides
