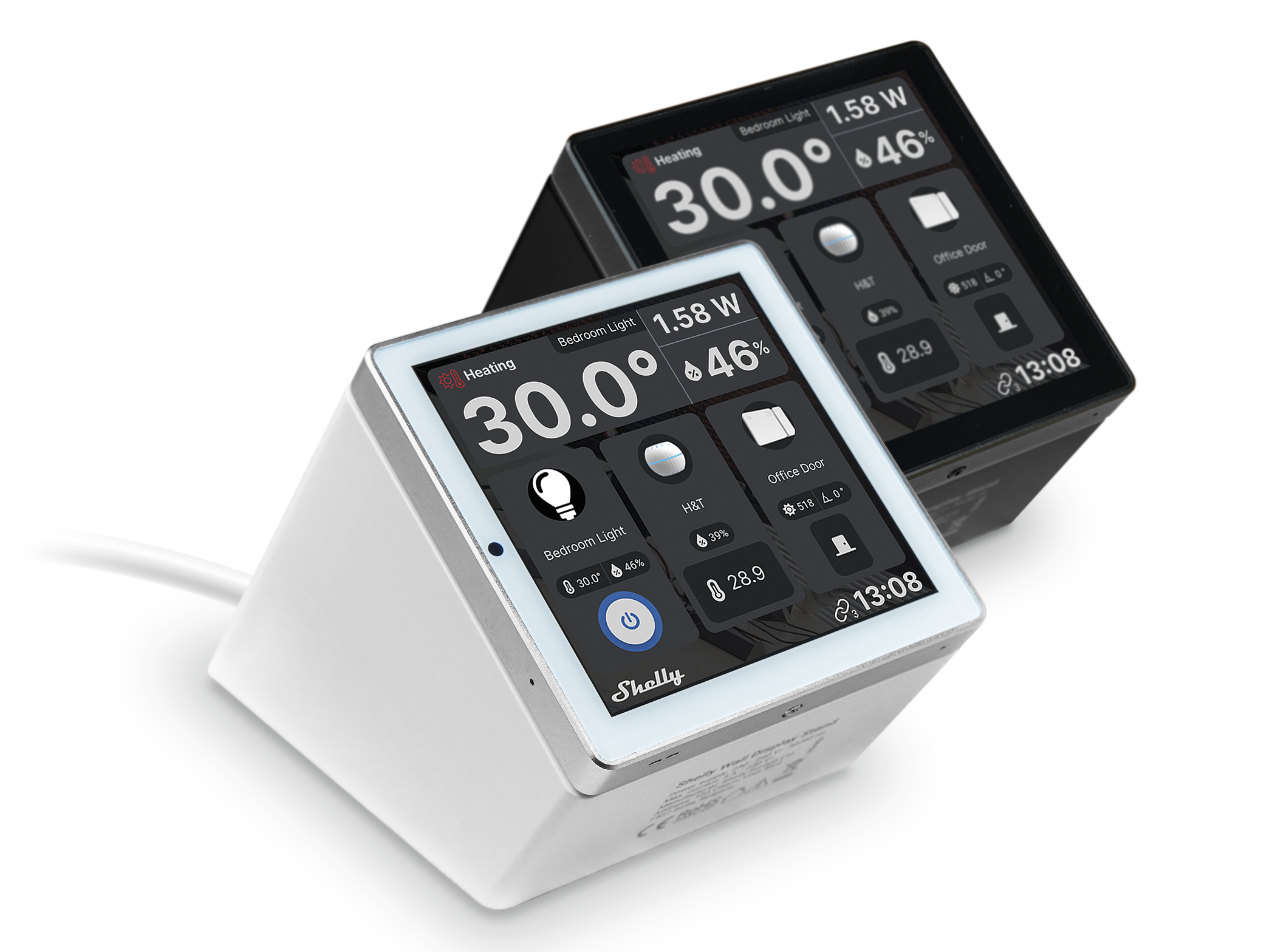

Shelly Wall Display Stand
Short description
A tabletop stand for Shelly Wall Display with the option to install a Shelly Socket for Wall Display Stand or a Shelly USB Charger for Wall Display Stand.
Main features
One contact plug (Schuko, type F, CEE 7/4).
Non-slip pad on bottom that ensure the Shelly Table stand for Wall Display does not move when using the touch-screen of the Shelly Wall Display.
The Shelly Table Stand for Wall Display is setting the Shelly Wall Display under 35° viewing angle for ease of interacting.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

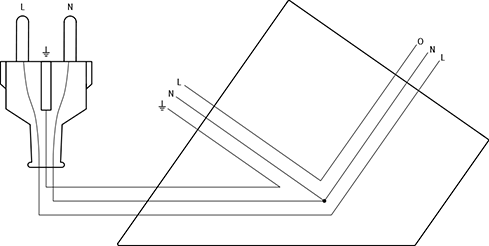

Simplified internal schematics
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 87x87x113mm / 3.43x3.43x5.24 inch |
Weight: | 314 g / 11.08 oz |
Shell material: | Plastic |
Shell color: |
|
Environmental | |
Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
Humidity: | 30% to 70% RH |
Electrical | |
Power supply: | 230 - 240 V~ 50/60 Hz |
Wiring diagrams

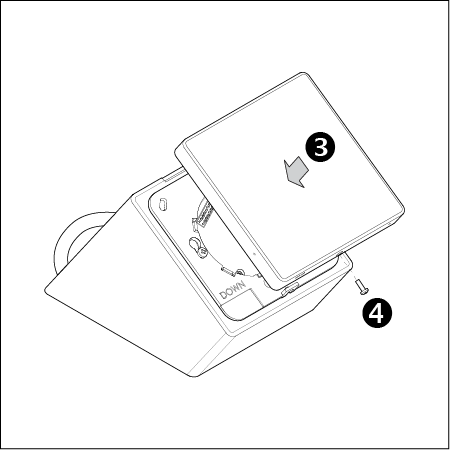

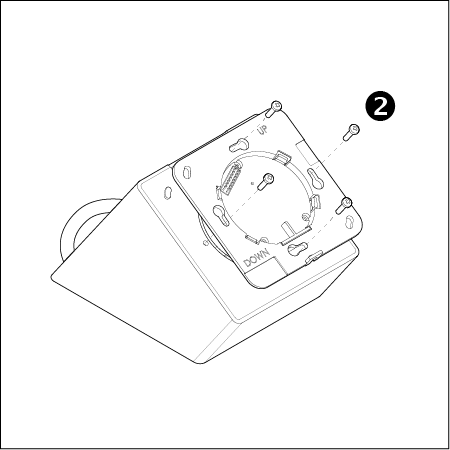

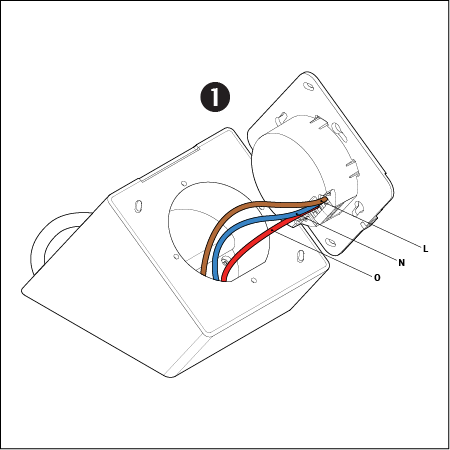

Power and Display Module Installation

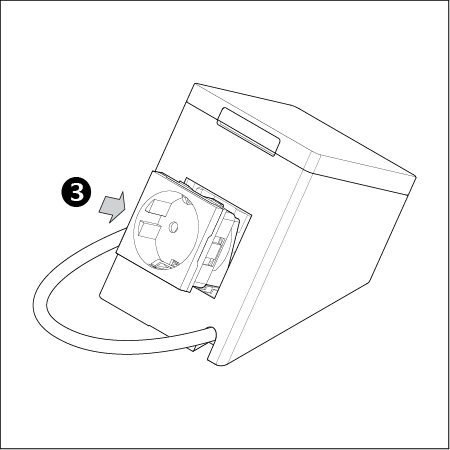

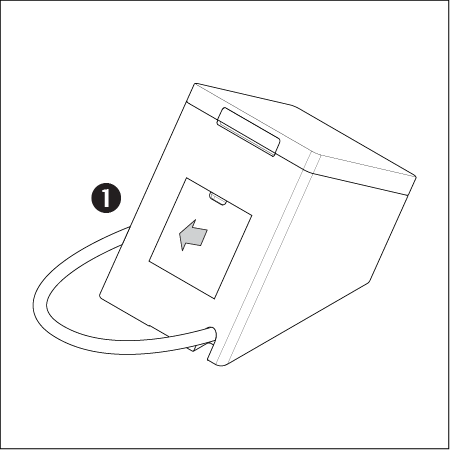

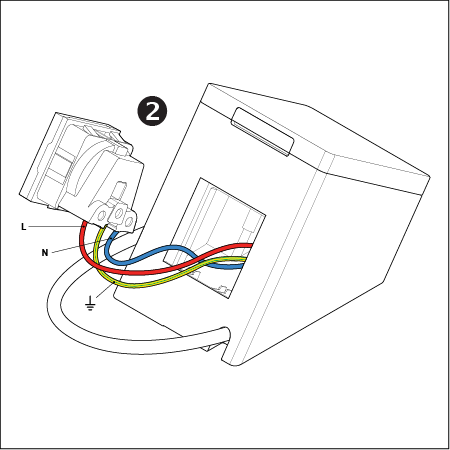

Type F (CEE 7/3) Electrical Socket Installation
USB Power Supply Installation
-
Troubleshooting
…
Compliance and certification
Compliance
Printed user guide
Shelly USB Charger for Wall Display Stand multilingual printed user and safety guide.pdf
