Device identification

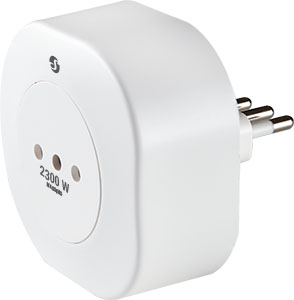

  • Device name: Shelly Plus Plug IT

  • Device model: SNPL-00110IT

  • Device SSID: ShellyPlusPlugIT-XXXXXX

Short description

Shelly Plus Plug IT (The Device) is a smart plug/outlet with power measurement and overheating protection, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Plus Plug IT can be accessed, set up and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Integrations (Soon)

  • Google

  • Samsung SmartThings

  • Alexa

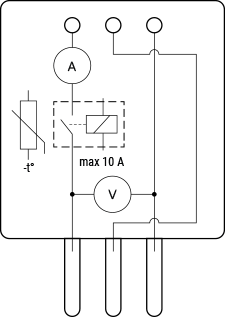

Simplified internal schematics

Shelly Plus Plug IT simplified internal schematics

Device electrical interfaces

Input

  • CEI 23-16 / IT1-10P (Type L) plug

Output

  • CEI 23-16 / IT1-10P (Type L) socket

Connectivity

  • Wi-Fi

  • Bluetooth (for inclusion purposes)

Safety features

  • Overheating protection

  • Overvoltage protection

  • Overcurrent protection

  • Overpower protection

Supported load types

  • Resistive (incandescent bulbs, heating devices)

  • Capacitive (capacitor banks, electronic equipment, motor start capacitors)

  • Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

  • One push button

    • Press and hold 5 sec to reboot (Possible up to 60 sec after plugging in the Device).

    • Press and hold 10 sec to factory reset (Possible up to 60 sec after plugging in the Device).

Outputs

  • LED indication

    • Blue flashing quickly: AP Mode

    • Blue flashing slowly: Connected to a Wi-Fi network

    • Blue still: Connected to Shelly Cloud

    • Red still: Power supplied to the plugged appliance

    • Red flashing slowly: Reboot initiated (Power button pressed for 5 sec.)

    • Red flashing quickly: Factory reset initiated (Power button pressed for 10 sec.)

    • Red and Blue flashing alternately: Firmware update

Specifications

Type

Value

Physical

Size (HxWxD):

70x70x70 mm ±0.5 mm / 2.76x2.76x2.76 in ±0.02 in

Weight:

105 ±1 g / 3.70 ±0.04 oz

Compatible sockets:

CEI 23-16 / IT1-10P (Type L)

Compatible plugs:

CEI 23-16 / IT1-10P (Type L), CEE 7/16 (Type C)

Shell material:

Plastic

Color:

White

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply voltage AC:

230 V ±10 %, 60 Hz

Power supply voltage DC:

N/A

Power consumption:

< 1 W

Output circuits ratings

Max switching voltage AC:

260 V

Max switching voltage DC:

N/A

Max switching current AC:

10 A

Max switching current DC:

N/A

Sensors, meters

Temperature sensor:

Yes

Voltmeter:

Yes

Ammeter:

Yes

Power and energy meters:

Yes

Radio

RF band:

2401 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32

Flash:

4 MB

Firmware capabilities

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

mJS

MQTT:

Yes

CoAP:

No
