Shelly Plus 0-10V Dimmer

Device identification

  • Device name: Shelly Plus 0-10V Dimmer

  • Device model: SNDM-00100WW

  • Device SSID: ShellyPlus010V-XXXXXXXXXXXX

  • Device Bluetooth ID: 0x1070 / 0x0780 (GAP)

Short description

Shelly Plus 0-10V Dimmer (the Device) is a smart 0-10V dimming controller which allows remote control 0-10V dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Plus 0-10V Dimmer can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

Shelly Plus 0-10V Dimmer has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main features

  • Diverse driver integration: Supports 0-10V signal control for multiple types of drivers (lights, motors, valves, etc.).

  • Shelly Plus Add-on compatible: The Device supports connection with the sensor interface to the Shelly Plus devices.

  • Switch/Button input mode: Allows flexible input control through switches or buttons.

  • One/dual button dimming control: Allows to use the full functionalities of the Device for dimming control with any wall switch configuration.

  • Night mode: Enables to set a specific brightness of input lights during nighttime.

  • Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.

  • Button fade rate: Controls how quickly the output brightness changes while holding the button(s).

  • Transition duration: Controls the time for dimming from 0 to 100 %.

  • Schedules:

    • Basic schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.

    • Advanced schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.

  • Auto on/off timers: Enables auto on/off timer setting.

  • Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.

  • Webhooks: Support automation through lightweight, event-driven communication with other devices.

  • BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.

  • Wi-Fi Range Extender: Retransmits the Wi-Fi signal and extends its reach.

  • Scripting: Allows creating automation scenarios through scripts.

  • Compatibility: Highly compatible with 3rd Party home automation systems.

  • No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…

  • Government/municipal

  • University/college

  • Farming

Use cases

  • Supports 0-10V signal control for multiple types of drivers (lights, motors, valves, etc. depending on the driver)

  • Control fan speed, if the motor or motor inverter has a 0-10V input. (Web interface will display light control interface.)

  • Control valves, if the valve has a 0-10V input. (Web interface will display light control interface.)

Integrations

Amazon Alexa supported capabilities

Yes

Google Smart Home supported traits

Yes

Samsung SmartThings supported capabilities

Yes

Simplified internal schematics

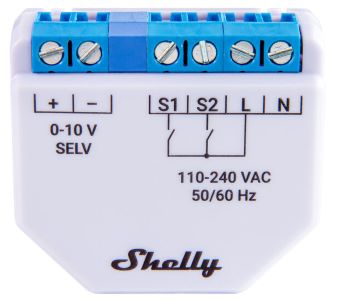

Device electrical interfaces

Inputs

  • 2 switch/button inputs on screw terminals: S1 and S2

  • 2 power supply inputs on screw terminals: 1 N and 1 L

Outputs

  • 2 0-10V outputs on screw terminals: + and -

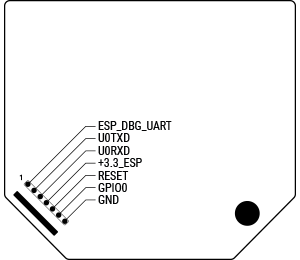

Add-on interface

  • Shelly proprietary serial interface

Shelly Plus 1 addon interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

  • Wi-Fi

  • Bluetooth

Safety function

  • Overheating protection

Supported load types

  • 0-10V signal control for multiple types of drivers (lights, motors, valves, etc.)

User interface

Inputs

  • One (Control) button

    • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

    • Press and hold for 10 seconds to factory reset the Device.

Outputs

  • LED (monocolor) indication

    • AP (Access Point) enabled and Wi-Fi disabled:
      1 second ON / 1 second OFF

    • Wi-Fi enabled, but not connected to a Wi-Fi network:
      1 second ON / 3 seconds OFF

    • Connected to a Wi-Fi network:
      Constantly ON

    • Cloud is enabled, but not connected:
      1 second ON /5 seconds OFF

    • Connected to Shelly Cloud:
      Constantly ON

    • OTA (Over the Air Update):
      ½ sec ON / ½ second OFF

    • Button pressed and held for 5 seconds:
      ½ second ON / ½ second OFF

    • Button presses and held for 10 seconds:
      ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Quantity

Value

Physical

Size (HxWxD):

42x37x17 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in

Weight:

17 g / 0.60 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Mounting:

In-wall

Shell material:

Plastic

Shell color:

Shell: 2716C, print: black

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 VAC ±10%

Power consumption:

< 1.2 W

Neutral not needed:

No

0-10V voltage control type:

Current sinking

Output circuits ratings

Max. switching voltage:

10 VDC

Max. switching power:

0.35 W

Max. switching current:

35 mA

Sensors, meters

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2401 - 2495 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

4.2

RF band:

2400 - 2483.5 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP32-U4WDH

Flash:

4 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

MQTT:

Yes

Scripting:

Yes

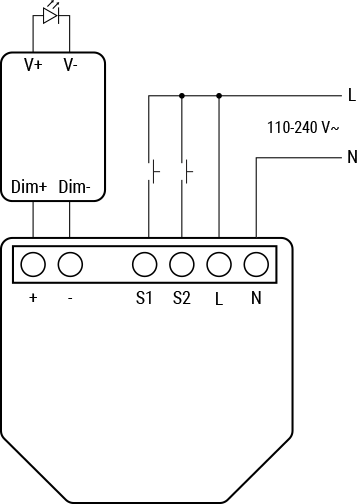

Basic wiring diagrams

Plus 0_1-10V dimmer-wiring diagram.png

Legend

Terminals

Wires

+

0-10 VDC positive terminal

L

Live (110-240 V) wire

-

0-10 VDC negative terminal

N

Neutral wire

S1

Switch/button input terminals for light control

S2

Switch/button input terminals for light control

L

Live (110-240 V) terminal

N

Neutral terminal

Components and APIs

Compliance

Shelly Plus 0-10V Dimmer multilingual EU declaration of conformity.pdf

Shelly Plus Dimmer 0-10V UK PSTI ACT Statement of compliance.pdf

Printed user guide

Shelly Plus 0-10V Dimmer multilingual printed user and safety guide.pdf

Installation guides
