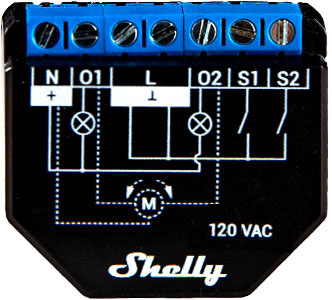

Shelly Plus 2PM UL


Device identification

  • Device name: Shelly Plus 2PM UL

  • Device model: SNSW-002P15UL

  • Device SSID: ShellyPlus2PM-XXXXXX

Short description

The Shelly Plus 2PM UL is a UL-certified small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

The Shelly Plus 2PM UL can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

The Shelly Plus 2PM UL has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Integrations

Amazon Alexa supported capabilities

  • Yes

Google Smart Home supported traits

  • Yes

Samsung SmartThings supported capabilities

  • Yes

Simplified internal schematics


Device electrical interfaces

Inputs

  • 2 switch/button inputs on screw terminal: S1 and S2

  • 3 power supply inputs on screw terminals: 1 N (+) and 2 L (Ʇ)

Outputs

  • 2 relay outputs with power measurement on screw terminal

Add-on interface

  • Shelly proprietary serial interface

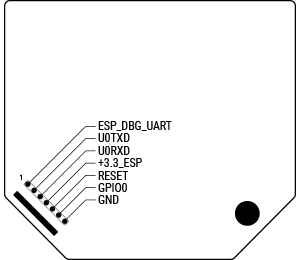

Shelly Plus 1 addon interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

  • Wi-Fi

  • Bluetooth

Safety features

  • Overheating protection

  • Overvoltage protection

  • Overcurrent protection

  • Overpower protection

  • Obstacle detection (cover mode)

  • Safety switch (cover mode)

Supported load types

  • Resistive (incandescent bulbs, heating devices)

  • Capacitive (capacitor banks, electronic equipment, motor start capacitors)

  • Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

  • One (Reset) button

    • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

    • Press and hold for 10 seconds to factory reset the Device.

Outputs

  • LED (monocolor) indication

    • AP (Access Point) enabled and Wi-Fi disabled:
      1 second ON / 1 second OFF

    • Wi-Fi enabled, but not connected to a Wi-Fi network:
      1 second ON / 3 seconds OFF

    • Connected to a Wi-Fi network:
      Constantly ON

    • Cloud is enabled, but not connected:
      1 second ON /5 seconds OFF

    • Connected to Shelly Cloud:
      Constantly ON

    • OTA (Over the Air Update):
      ½ sec ON / ½ second OFF

    • Button pressed and held for 5 seconds:
      ½ second ON / ½ second OFF

    • Button presses and held for 10 seconds:
      ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Type

Value

Physical

Size (HxWxD):

37x42x16 mm / 1.46x1.65x0.63 in

Weight:

Mounting:

Flush mounting

Screw terminals max torque:

0.25 Nm / 2.2 bin

Conductor cross section:

1.0 to 2.5 mm² / 20 to 14 AWG

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Shell material:

Plastic

Color:

Black

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply:

120 VAC, 50/60Hz

Power consumption:

< 1.4 W

Output circuits ratings

Max switching voltage AC:

120 V

Max switching voltage DC:

N/A

Max switching current AC:

8 A (per channel), 16 A (total)

Max switching current DC:

N/A

Sensors, meters

Internal-temperature sensor:

Yes

Voltmeter (AC)

Yes

Ammeter (AC)

Yes

Radio

RF band:

2400 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32-U4WDH

Flash:

4 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

CoAP:

No

Basic wiring diagrams

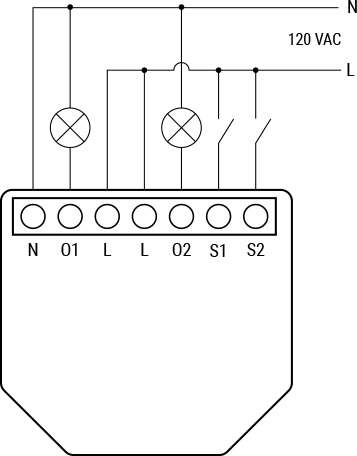

Plus 2PM AC UL wiring diagram.png

Dual-channel switch mode, AC power supply

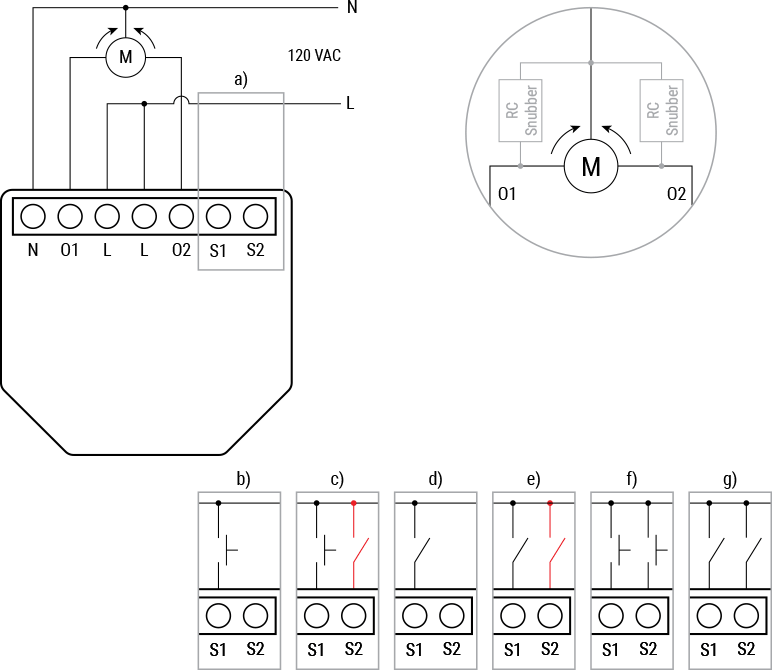

Plus 2PM AC UL cover wiring diagram.png

Cover mode

Legend

Terminals

Wires

N

Neutral terminal

N

Neutral wire

L

Live (120 VAC) terminal

L

Live (120 VAC) wire

O1, O2

Load circuit output terminals

S1, S2

Switch input terminals

Troubleshooting

...

Web Interface guide

Read the Shelly Plus 2PM, Plus 2PM UL web interface guide

Components and APIs

Printed user guide

Shelly Plus 2PM UL bilingual printed user and safety guide.pdf
