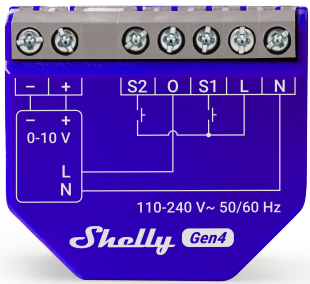

Shelly Dimmer 0/1-10V PM Gen4

Device identification

  • Device name: Shelly Dimmer 0/1-10V PM Gen4

  • Device model: S4DM-0010WW

  • Device SSID: Shelly0110DimG4-XXXXXXXXXXXX

  • BLE Model ID: 0x1074

Short description

Shelly Dimmer 0/1-10V PM Gen4 (the Device) is a smart dimming controller that allows remote control of dimming drivers through a mobile phone, tablet, PC, or home automation system. It can operate standalone within a local Wi-Fi network or be integrated into cloud-based home automation platforms.

The Device functions as a current sourcing controller and supports both 0-10V and 1-10V dimmable drivers. In addition to Wi-Fi connectivity, the Gen4 version also includes support for Matter and Zigbee protocols, expanding its compatibility with a wide range of smart home ecosystems and ensuring improved interoperability, security, and ease of integration.

Main features

  • Bluetooth: The Device complies the Bluetooth standard and can connect with other Bluetooth devices to exchange data in short range.

  • BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.

  • Wi-Fi: The Device can connect to a wireless network.

  • Wi-Fi Range extender: Retransmits the Wi-Fi signal and extends its reach.

  • Matter: Matter provides quick and simple process of adding the device to the user’s smart home ecosystem.

  • Zigbee: The device can be integrated into many popular smart home platforms and ecosystems like Home Assistant, Amazon Alexa, Samsung SmartThings, Google Smart Home.

  • Zigbee Range extender for IoT devices: A Zigbee extender is employed to expand the reach of your Zigbee network by receiving your Zigbee signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.

  • Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP

  • Integration with Smart Home Platforms: The device can be integrated with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This enables voice control and automation capabilities through these platforms.

  • Local and Cloud Control: The device can function independently in a local Wi-Fi network and can also be operated through cloud home automation services.

  • Scripting: Allows creating automation scenarios through scripts.

  • Basic Schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.

  • Аdvanced Schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.

  • Shelly Plus Add-On compatible: The Device supports connection with the sensor interface to the Shelly Plus devices.

  • Auto on/off timers: Enables auto on/off timer setting.

  • Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.

  • Webhooks: Supports automation through lightweight, event-driven communication with other devices.

  • Compatibility: Highly compatible with 3rd Party home automation systems.

  • No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.

  • Activity log: Stores detailed history of events.

  • KVS (Key-value storage): KVS service provides a basic persistent storage of key-value pairs.

  • KNX: Supports KNXnet/IP communication

  • Virtual components: A special set of components that do not exist in the device initially and are created dynamically by the user.

  • Customizable thresholds and offsets for temperature, humidity and light when/if used with Plus Add-on

  • Safety: Оver current/voltage/power protections

  • Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed.

  • Diverse driver integration: Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.).

  • Night Mode: Enables to set a specific brightness of input lights during nighttime.

  • Switch/Button input mode: Allows flexible input control through switches and/or buttons

    • One button dimming control

    • Dual button dimming control

  • Transition duration: Controls the time for dimming from 0 to 100 % on toggle On and from 100 to 0% on toggle Off.

  • Minimum brightness on toggle On: Brightness level (in percent) applied when there is a toggle On and current brightness is lower than 'Min brightness on toggle'. Default is 3%. Not applied when explicit (custom) transition is defined in Schedules and Actions.

  • Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.

  • Button fade rate: Controls how quickly the output brightness changes while holding the button(s). Default is 3x.

  • Button presets: State to be applied on double-push (double-click) event. Default value is 100%

Use cases

  • Control your dimmable lights within the 0-10 V range to set the perfect brightness.

  • Create smart schedules to have lights automatically adjust their brightness throughout the day.

  • Retrofit your existing lighting system with the Dimmer 0/1-10V PM Gen4 and continue using your current switches.

  • Provide comfortable and relaxing atmosphere for the clients in your restaurant, pub or cafe.

  • Effortlessly set the perfect mood with smooth, seamless lighting transitions—ideal for cinemas, theatres, and opera houses where ambiance matters most.

  • Enhance every performance with professional-grade dimming control in your bar or club with live music.

  • Sync your lights with sunrise and sunset times easily using smart schedules.

  • Activate a night mode for reduced brightness during nighttime hours.

  • Integrate the Dimmer 0/1-10V PM Gen4 with third-party systems like Home Assistant, Google Home, Alexa, and SmartThings for expanded control options.

  • Utilize the device to dim lights up or down with a single or double button press.

  • Monitor and measure power usage of connected lights for energy management.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…

  • Government/municipal

  • University/college

Integrations

Amazon Alexa supported capabilities

Yes

Google Smart Home supported traits

Yes

Samsung SmartThings supported capabilities

Yes

Simplified internal schematics


Device electrical interfaces

Inputs

  • 2 switch/button inputs on screw terminals: S1 and S2

  • 2 power supply inputs on screw terminals: 1 N and 1 L

Outputs

  • 2 0-10V outputs on screw terminals: + and -

  • 1 relay output with power measurement on screw terminal

Add-on interface

  • Shelly proprietary serial interface

Shelly Plus 1 addon interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

  • Wi-Fi

  • Bluetooth

  • Zigbee

  • Matter

Safety functions

  • Overheating protection

  • Overvoltage protection

  • Overcurrent protection

  • Overpower protection

Supported load types

  • 0-10V signal control for multiple types of drivers (lights, motors, valves, etc.)

  • 1-10V signal control

User interface

Inputs

  • One (Control) button

    • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

    • Press and hold for 10 seconds to factory reset the Device.

    • Press the button 5 times to switch the Device from Matter (default) to Zigbee profile. The Device enters inclusion mode for 3 minutes. Include the Device following the instructions of your Zigbee home automation system.

    • Press the button 3 times to restart the inclusion mode for another 3 minutes if you missed the previous 3-minute window.

Outputs

  • LED (monocolor) indication

    • AP (Access Point) enabled and Wi-Fi disabled:
      1 second ON / 1 second OFF

    • Wi-Fi enabled, but not connected to a Wi-Fi network:
      1 second ON / 3 seconds OFF

    • Connected to a Wi-Fi network:
      Constantly ON

    • Cloud is enabled, but not connected:
      1 second ON /5 seconds OFF

    • Connected to Shelly Cloud:
      Constantly ON

    • OTA (Over the Air Update):
      ½ sec ON / ½ second OFF

    • Button pressed and held for 5 seconds:
      ½ second ON / ½ second OFF

    • Button pressed and held for 10 seconds:
      ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Quantity

Value

Physical

Size (HxWxD):

38.5x43.5x17mm / 1.52x1.71x0.67in

Weight:

28.5 g / 0.99 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Mounting:

Wall console/behind wall/ceiling construction

Shell material:

Plastic

Shell color:

Shell: Pantone 2736C (blue)

Print: White

Connector color:

Gray

Environmental



Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110-240 V~, 50/60 Hz

Power consumption:

< 1.5 W

0-10V/1-10V voltage control type:

Current sourcing

Current sinking

External protection:

16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3

Output circuits ratings

Max. switching voltage:

240 V~

Max. switching current:

13 A

Max. control current:

35 mA

Sensors, meters

Voltmeter (AC):

110 V - 240 V

Voltmeter accuracy:

±10 %

Ammeter (AC):

50 mA - 16 A

Ammeter accuracy:

±10 %

Measurement data storage:

No

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2401 - 2483 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5.0

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocol:

802.15.4

Zigbee repeater:

Yes

RF bands:

2405 - 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP32-C6

Clock frequency:

80 MHz

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

Advanced schedules:

Yes

KVS (Key-Value Store):

Yes

Basic wiring diagram

0_1-10V Dimmer PM Gen3.png

Legend

Terminals

Wires

-

0-10 VDC negative terminal

L

Live (110-240 V) wire

+

0-10 VDC positive terminal

N

Neutral wire

O

Relay output





S1

Switch/button input terminals for light control





S2

Switch/button input terminals for light control





L

Live (110-240 V) terminal





N

Neutral terminal





Dim-/Dim +

Positive/negative terminal of the LED driver





V-/V+

Positive/negative output of the LED driver
