Shelly BLU Button Tough 1

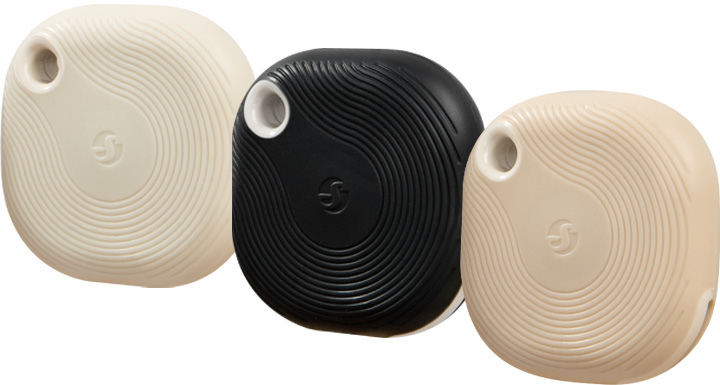

Device image
Device identification
Device name: Shelly BLU Button Tough 1
Device model: SBBT-002C
Device Bluetooth ID: 0x0001
Short description
Shelly BLU Button Tough 1 (the Device) is a smart shock, water, and dust-resistant Bluetooth button of a compact size. It features a long battery life, supports multi-click and strong encryption.
Main features
Long battery life
Shock, water, and dust-resistant
Supports multi-click
Compact size, portability, and ease of use
Strong encryption
Use cases
Lighting control: Assign a button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
Garage door opener: Use the strong encryption of Shelly BLU Button Tough 1 and control your smart garage door opener as you approach or leave your garage.
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the button for presence control, for example to keep lights on while you need to spend some time in a certain area.
Connectivity
Bluetooth
User interface
Inputs
One push button
Press and hold for 10 sec to pair ShellyBLU Button Tough 1 with another Bluetooth device.
Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 42x42x13 mm / 1.65x1.65x0.51 in |
Weight: | 15 g / 0.53 oz |
Shell material: | Plastic |
Shell color: |
|
Environmental | |
Ambient working temperature: | -20 °C to 60 °C / -5 °F to 140 °F |
Humidity: | 0% to 90% RH |
Electrical | |
Power supply: | 1x 3 V battery (included) |
Battery type: | CR2032 |
Estimated battery life: | Up to 2 years |
Bluetooth | |
Protocol: | 4.2 |
RF band: | 2400 - 2483.5 MHz |
Max. RF power: | < 4 dBm |
Range: | Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
Encryption: | AES (CCM mode) |
Troubleshooting
…
Components and APIs
Compliance
Shelly BLU Button Tough 1 multilingual EU declaration of conformity.pdf
Battery material safety data sheet
Printed user guide
Shelly BLU Button tough 1 multilingual printed user and safety guide.pdf
