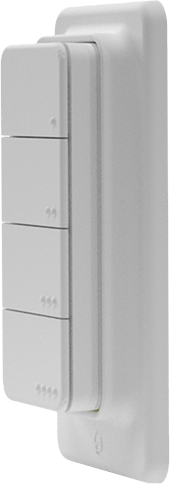

Shelly BLU RC Button 4 ZB
Device identification
Device name: Shelly BLU RC Button 4 ZB
Device model: SBBT-104CUS
Device Bluetooth ID: 0x0016
Short description
Shelly BLU RC Button 4 ZB (the Device) is a smart four-button Bluetooth and Zigbee remote control interface. It features long battery life, multi-click control, and strong encryption. The Device has in-built magnets and a magnetic holder included in the package providing users with versatile placement and usage options.
Main features
Long battery life
Supports multi-click
Compact size, portability, and ease of use
Strong encryption
Variety of placement and usage options
Use cases
Lighting control: Assign the button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
Garage door opener: Use the strong encryption of Shelly BLU RC Button 4 ZB and control your smart garage door opener as you approach or leave your garage.
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the Device for presence control, for example to keep lights on while you need to spend some time in a certain area.
Scene control: Use the 4 buttons to activate any scene or specific actions you can imagine. Each button supports single, double, triple and long push - which allows the user to make 16 different actions!
Connectivity
Bluetooth
Zigbee
User interface
Inputs
Four push buttons
To enter Bluetooth pairing mode:
Press any of the buttons 4 times. The LED starts flashing in blue and the Device enters Bluetooth pairing for one minute.
To enter Zigbee pairing mode:
Press any of the buttons 5 times. The LED starts flashing in purple and the Device enters Zigbee commissioning mode for one minute.
Factory reset
Press and hold any button for 30 sec to factory reset (possible only shortly after inserting the battery).
Outputs
LED indication
Blue light flashing when the Device is in Bluetooth pairing mode.
Purple light flashing when the Device is in Zigbee pairing mode.
Green light flashing when a button is pressed shortly. The number of flashes corresponds to the number of the button presses.
Yellow light flashing on long press.
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): |
|
Weight: | 21 g / 0.74 oz |
Shell material: | Plastic |
Shell color: | White |
Environmental | |
Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity: | 30% to 70% RH |
Electrical | |
Power supply: | 1x 3 V battery (included) |
Battery type: | CR2032 |
Estimated battery life: | Up to 2 years |
Bluetooth | |
Protocol: | 5 (LE) |
RF band: | 2402 - 2480 MHz |
Max. RF power: | < 8 dBm |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Zigbee | |
Protocols: | 802.15.4 |
RF bands: | 2405 to 2480 MHz |
Max. RF power: | < 8 dBm |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: | EFR32MG27 |
Flash: | 768 kB |
Firmware capabilities | |
Schedules: | No |
Webhooks (URL actions): | No |
Scripting: | No |
MQTT: | No |
Encryption: | Yes |
Other | |
Supported Devices |
|
*Available only for products distributed in the US market
Compliance
Shelly BLU RC Button 4 ZB multilingual EU declaration of conformity 254 2025-12-11.pdf
Shelly BLU RC Button 4 ZB UK PSTI ACT statement of compliance 254 2025-12-11.pdf
Shelly BLU RC Button 4 ZB UKCA declaration of conformity 254 2025-12-11.pdf
Components and APIs
Printed user guide
Shelly BLU RC Button 4 ZB multilingual printed user and safety guide US.pdf
Shelly BLU RC Button 4 ZB multilingual printed user and safety guide EU.pdf
