Shelly BLU RC Button / Shelly BLU RC Button US
Device identification
Device name: Shelly BLU RC Button 4
Device model: SBBT-004CUS
Device Bluetooth ID: 0x0007
Short description

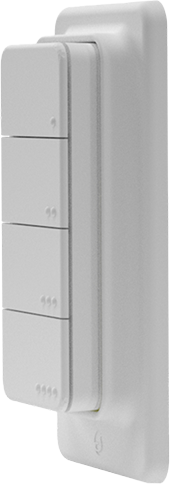

Shelly BLU RC Button 4 US (the Device) is a smart four-button Bluetooth remote control interface. It features long battery life, multi-click control, and strong encryption. The Device has in-built magnets and a magnetic holder included in the package providing users with versatile placement and usage options.
Main features
Long battery life
Supports multi-click
Compact size, portability, and ease of use
Strong encryption
Variety of placement and usage options
Use cases
Lighting control: Assign the button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
Garage door opener: Use the strong encryption of Shelly BLU Wall Switch 4 and control your smart garage door opener as you approach or leave your garage.
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the Device for presence control, for example to keep lights on while you need to spend some time in a certain area.
Scene control: Use the 4 buttons to activate any scene or specific actions you can imagine. Each button supports single, double, triple and long push - which allows the user to make 16 different actions!
Connectivity
Bluetooth
User interface
Inputs
Four push buttons
Press and hold for 10 sec to pair Shelly BLU RC Button 4 US with another Bluetooth device.
Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
Outputs
LED indication
Blue light flashing when the Device is in pairing mode.
Red light flashing when a button is pressed. The number of flashes corresponds to the number of the button presses.
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): |
|
Weight: | 21 g / 0.74 oz |
Shell material: | Plastic |
Shell color: | White |
Environmental | |
Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity: | 30% to 70% RH |
Electrical | |
Power supply: | 1x 3 V battery (included) |
Battery type: | CR2032 |
Estimated battery life: | Up to 2 years |
Bluetooth | |
Protocol: | 4.2 |
RF band: | 2400 - 2483.5 MHz |
Max. RF power: | < 4 dBm |
Range: | Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
Encryption: | AES (CCM mode) |
*Available only for products distributed in the US market
Troubleshooting
…
Compliance
Shelly BLU RC Button 4 multilingual EU declaration of conformity.pdf
Battery material safety data sheet
CR-PSDS-01_MSDS_Panasonic CR2030.pdf
