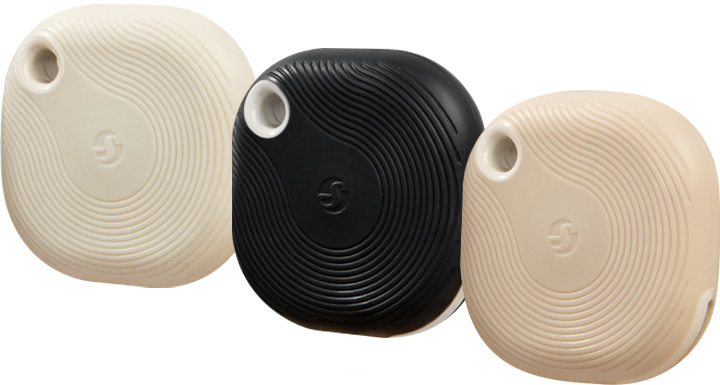

Shelly BLU Button Tough 1 ZB
Device identification
Device name: Shelly BLU Button Tough 1 ZB
Device model: SBBT-102C
Device Bluetooth ID: 0x0017
Short description
Shelly BLU Button Tough 1 ZB (the Device) is a smart shock, water, and dust-resistant Bluetooth and Zigbee button of a compact size. It features a long battery life, supports multi-click and strong encryption.
Main features
Long battery life
Shock, water, and dust-resistant
Supports multi-click
Compact size, portability, and ease of use
Strong encryption
Use cases
Lighting control: Assign a button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
Garage door opener: Use the strong encryption of Shelly BLU Button Tough 1 and control your smart garage door opener as you approach or leave your garage.
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the button for presence control, for example to keep lights on while you need to spend some time in a certain area.
Connectivity
Bluetooth
Zigbee
User interface
Inputs
One push button
To enter Bluetooth pairing mode:
Press the button quickly 4 times. The Device will produce a short sound indicating pairing mode
To enter Zigbee pairing mode:
Press the button quickly 5 times and the Device enters Zigbee commissioning mode for one minute indicating with different sound.
Factory reset
Press and hold the button for 30 sec to factory reset (possible only shortly after inserting the battery).
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 42x42x13 mm / 1.65x1.65x0.51 in |
Weight: | 15 g / 0.53 oz |
Shell material: | Plastic |
Shell color: |
|
Environmental | |
Ambient working temperature: | -20 °C to 60 °C / -5 °F to 140 °F |
Humidity: | 0% to 90% RH |
Electrical | |
Power supply: | 1x 3 V battery (included) |
Battery type: | CR2032 |
Estimated battery life: | Up to 2 years |
Bluetooth | |
Protocol: | 5 (LE) |
RF band: | 2402 - 2480 MHz |
Max. RF power: | < 8 dBm |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Zigbee | |
Protocols: | 802.15.4 |
RF bands: | 2405 to 2480 MHz |
Max. RF power: | < 8 dBm |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: | EFR32MG27 |
Flash: | 768 kB |
Firmware capabilities | |
Schedules: | No |
Webhooks (URL actions): | No |
Scripting: | No |
MQTT: | No |
Encryption: | Yes |
Other | |
Supported Devices |
|
Components and APIs
Compliance and certification
Shelly BLU Button Tough 1 ZB multilingual EU declaration of conformity 2025-12-05 1.pdf
Shelly BLU Button Tough 1 ZB UK PSTI ACT statement of compliance 2025-12-05.pdf
Shelly BLU Button Tough 1 ZB UKCA declaration of conformity 2025-12-05.pdf
Printed user guide
Shelly BLU Button Tough 1 ZB multilingual printed user and safety guide.pdf
