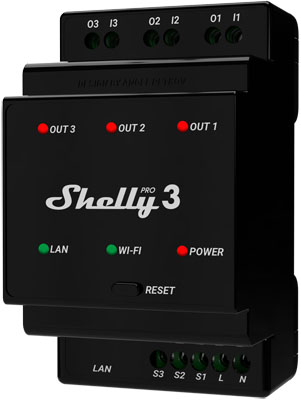

Shelly Pro 3 3D render

Device identification

  • Device name: Shelly Pro 3

  • Device model: SPSW-003XE16EU

  • Device SSID: ShellyPro3-XXXXXX

Short description

Shelly Pro 3 is a DIN rail mountable 3-channel smart relay with potential-free contacts, capable of switching 3 completely independent circuits, including 3-phase ones. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with many more options for end customer solutions. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Pro 3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

Shelly Pro 3 has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Industrial (factories, power plants, water processing, refineries, etc.)

  • Government/municipal

  • University/college

Integrations

  • Google

  • Alexa

  • Samsung SmartThings

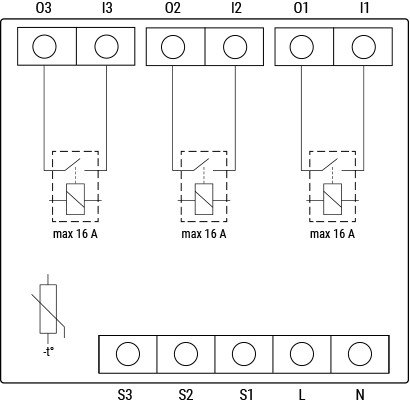

Simplified internal schematics

Shelly Pro 3 simplified internal schematics

Device electrical interfaces (≠)

Inputs

  • 3 switch/button inputs on screw terminals: S1, S2 and S3

  • 2 powers supply inputs on screw terminals: 1 N and 1 L

  • 3 relay inputs: I1, I2 and I3

Outputs

  • 3 relay outputs: O1, O2 and O3

Ethernet port

  • 1 RJ45 connector

⚠CAUTION! Plug in or unplug the LAN cable only when the Device is powered off! The LAN cable connector must not be metallic in the parts touched by the user to plug in or unplug the cable.

Connectivity

  • Wi-Fi

  • Ethernet

  • Bluetooth (for inclusion purposes)

Safety features

  • Overheating protection

Supported load types

  • Resistive (incandescent bulbs, heating devices)

  • Capacitive (capacitor banks, electronic equipment, motor start capacitors)

  • Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

  • One tactile dome button

    • Press and hold 5 sec to reboot.

    • Press and hold 10 sec to factory reset.

Outputs

  • LED indication

    • Power (red): Red light indicator will be on if power supply is connected.

    • Wi-Fi (varies):

      • Blue light indicator will be on if in AP mode.

      • Red light indicator will be on if in STA mode, and not connected to a Wi-Fi network.

      • Yellow light indicator will be on if in STA mode, and connected to a Wi-Fi network. Not connected to Shelly Cloud or Shelly Cloud disabled.

      • Green light indicator will be on if in STA mode, and connected to a Wi-Fi network and the Shelly Cloud.

      • The light indicator will be flashing Red/Blue if OTA update is in progress.

    • LAN (green): Green light indicator will be on if LAN is connected.

    • Out 1 (red): Red light indicator will be on if the Output 1 relay is closed.

    • Out 2 (red): Red light indicator will be on if the Output 2 relay is closed.

    • Out 3 (red): Red light indicator will be on if the Output 3 relay is closed.

Specifications

Type

Value

Physical

Size (HxWxD):

96x53x59 ±0.5 mm / 3.78x2.01x2.32 ±0.02 in

Weight:

Mounting:

DIN rail

Screw terminals max torque:

0.4 Nm / 4.43 lbin

Conductor cross section:

0.5 to 2.5 mm² / 20 to 14 AWG

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

Shell material:

Plastic

Color:

Black

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply voltage AC:

110 - 240 V

Power supply voltage DC:

N/A

Power consumption:

< 3 W

Neutral not needed:

No

Output circuits ratings

Max switching voltage AC:

240 V

Max switching voltage DC:

30 V

Max switching current AC:

16 A per channel, 48 A total

Max switching current DC:

16 A per channel, 48 A total

Sensors, meters

Temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n

Frequency:

2412 - 2472 МHz; (Max. 2495 MHz)

Max. RF output power:

15 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:

BLE 4.1

Frequency:

2402 - 2480 MHz (Max. 2483.5 MHz)

Max. RF output power:

5 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32-D0WDQ6

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

mJS

MQTT:

Yes

CoAP:

No

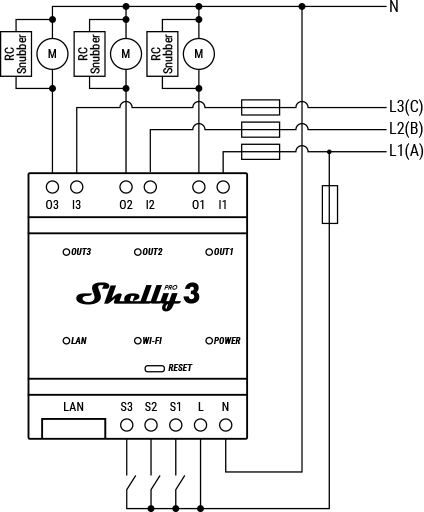

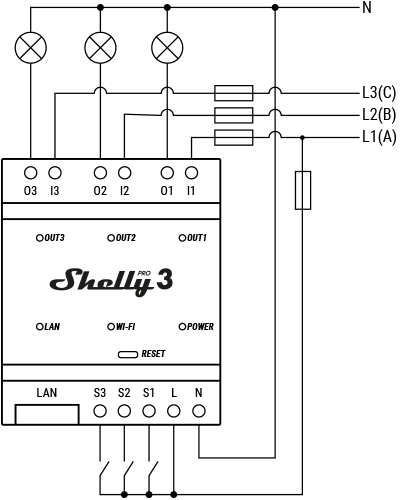

Basic wiring diagram

Shelly Pro 3 wiring diagram

Legend

Terminals

Cables

I1, I2, I3

Load circuit input terminals

L1(A)

Load circuit 1 live (110-240 V) cable

O1, O2, O3

Load circuit output terminals

L2(B)

Load circuit 2 live (110-240 V) cable

S1, S2, S3

Switch/button input terminals

L3(C)

Load circuit 3 live (110-240 V) cable

L

Live (110-240 V) terminal

N

Neutral cable

N

Neutral terminal

LAN

Local Area Network RJ 45 connector

Troubleshooting

...

Web Interface guide

Read the Shelly Pro 3 web interface guide

Components and APIs

Printed User Guide

Printed user guide - English, Deutsch, Italiano, Español, Português, Français

Compliance
