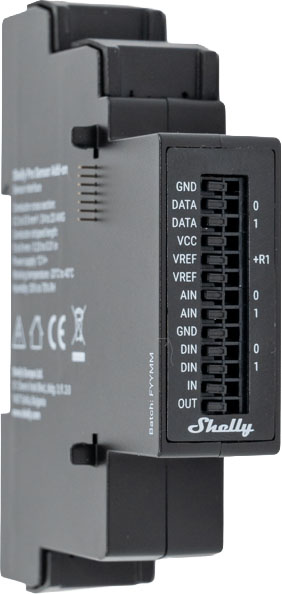

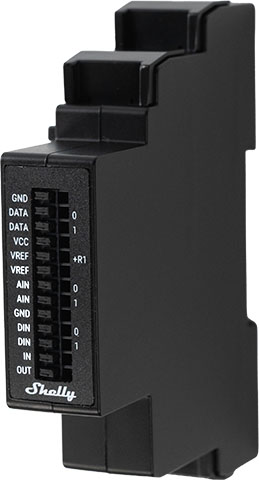

Short description
Transform your Shelly Pro device into a powerful sensor hub with the Shelly Pro Sensor Add-on. This galvanically isolated interface lets you connect multiple sensor types for real-time monitoring and advanced automation in any environment - residential, commercial, or industrial.
It provides two 1-Wire interfaces, two analog inputs (0-10V), two digital inputs (±15V), and a potential-free solid-state relay output, giving you maximum flexibility to build customized, intelligent solutions.
Compatible with most Arduino sensors, the Shelly Pro Sensor Add-on opens the door to limitless applications.
Main features
-
Expands functionality of selected Shelly Pro devices with additional sensor connectivity.
-
Galvanically isolated for safe and reliable operation.
-
Supports multiple sensor types for advanced automation.
-
2× DATA (1-wire data terminals) – connect up to five DS18B20 temperature sensors, one DHT22 for temperature and humidity, or other 1-Wire devices.
-
2× Analog inputs (0-10V) – suitable for sensors such as CO₂, pressure, light, or other analog types.
-
2× Digital inputs (±15V) – for motion detectors, leak sensors, switches, and more.
-
1× Potential-free solid-state relay input – ideal for relays, alarms, or other external circuits.
-
Compatible with most Arduino sensors for custom projects.
-
Ideal for DIN rail installations in residential, commercial, and industrial environments.
Use cases
-
Monitor and Control Critical Conditions
Install the Shelly Pro Add-on in your DIN-mounted setup to track temperature, humidity, open doors/windows, or other key data directly from the electrical panel. -
Optimize HVAC and Energy Use
Connect temperature, humidity, and other sensors to fine-tune heating, cooling, and ventilation for maximum comfort and efficiency. -
Automate Lighting with Motion Detection
Use a PIR sensor to turn lights on only when a room is occupied - ideal for hallways, storage areas, or office spaces. -
Protect Against Leaks and Weather
Integrate water leak, rain, or wind sensors to safeguard your property and automatically react to environmental changes. -
Smart Irrigation and Outdoor Control
Pair with a soil moisture sensor to water only when needed, or automate awnings and blinds for weather protection and comfort. -
Custom Projects and Specialized Monitoring
Leverage compatibility with Arduino sensors to build unique solutions for homes, aquariums, or industrial applications.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…
-
Government/municipal
-
University/college
-
Farming
Integrations
Amazon Alexa supported capabilities
N/A
Google Smart Home supported traits
N/A
Samsung SmartThings supported capabilities
N/A
Device electrical interfaces
Inputs
-
2x Analogue inputs (0-10 V)
-
2x Digital inputs (±15 V)
Outputs
-
1x Potential-free solid-state relay output
1-wire terminals
-
2x DATA (independent)
Power / Reference
-
2x GND
-
1x VREF
-
1x VREF + R1
-
1x VCC
Add-on interface
-
Shelly proprietary serial interface to connect to a Shelly Pro device
Supported Sensors
-
Up to 5x DS18B20 temperature sensors per channel.
-
DHT22 temperature and humidity sensors.
-
NTC resistors with 10 kΩ nominal resistance and β=4000 K
-
Photoresistors
-
PIR sensors
-
Soil moisture sensors
-
Ultrasonic proximity sensors
-
Capacitive liquid level sensors
-
Sound detectors
-
Other analog sensors with 0 to 10 V output voltage
Specifications
|
Quantity |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
94x19x69 / 3.70x0.75x2.71 |
|
Weight: |
45 g / 1.59 oz |
|
Mounting: |
DIN Rail |
|
Conductor cross section: |
0.2 to 0.5 mm² / 24 to 20 AWG |
|
Conductor stripped length: |
5 to 8 mm / 0.20 to 0.31 in |
|
Shell material: |
Plastic |
|
Shell color: |
Black |
|
Connectors color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30% to 70% RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
12 V (from compatible Shelly device) |
|
Power consumption: |
< 0.5 W (without sensors) |
|
Digital input: |
-15 V to 0.5 V (True) / 2.5 V to 15 V (False)* |
|
Analog input range: |
0 to 100% |
|
Analog input report threshold: |
1%** |
|
Voltmeter range: |
0 to 10 V |
|
Voltmeter report threshold: |
0.1 V** |
|
Analog input / Voltmeter accuracy |
Better than ±5% |
|
Output circuits ratings |
|
|
VCC max. current: |
10 mA |
|
VREF max. current: |
2 mA |
|
VREF+R1 resistor |
10 kΩ |
|
Max switching voltage: |
30 V |
|
Max switching current: |
300 mA |
|
Microcontroller unit |
|
|
CPU: |
STM32G071GBU6 |
|
Compatible devices: |
|
|
Others |
|
|
Temperature reading accuracy: |
Depends on the DS18B20 or DHT22 sensors |
|
Humidity reading accuracy: |
Depends on the DHT22 sensor |
*Logic can be inverted in the digital input settings
** Can be configured in the analog input / voltmeter settings

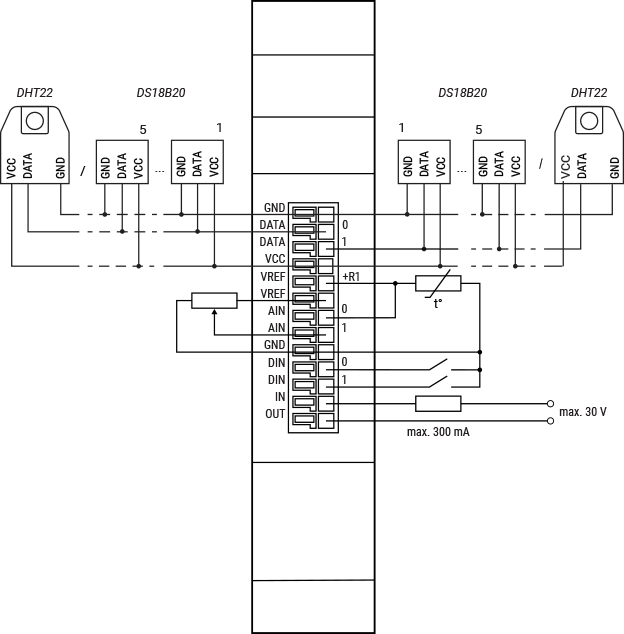

Basic wiring diagrams
Legend
|
Terminals |
|
|---|---|
|
GND |
Ground terminals |
|
DATA 0/DATA1 |
1-Wire data terminals |
|
VCC |
Sensor power supply terminals |
|
VREF |
Reference voltage output |
|
VREF + R1 |
Reference voltage through a pull-up resistor output for passive devices that need it to form a voltage divider. |
|
AIN0 / AIN1 |
Analog inputs (0-10 V) |
|
DIN0 / DIN1 |
Digital inputs (±15 V) |
|
IN |
Potential-free solid-state relay input |
|
OUT |
Potential-free solid-state relay output |
Compliance and certification
-
Shelly Pro Sensor Add-on multilingual EU declaration of conformity 289 2026-04-28.pdf
-
Shelly Pro Sensor Add-on UK PSTI ACT statement of compliance 289 2026-04-28.pdf
-
Shelly Pro Sensor Add-on UKCA declaration of conformity 289 2026-04-28.pdf
API and components
All Shelly devices and services
Printed user guide
Cable Manager - 3D Print File
-
Download here: Shelly_ProSensorAddon_Cablemanager.STL
-
Discussion topic: https://community.shelly.cloud/topic/14408-pro-sensor-add-on-cable-manager-kabelmanager/
