Device identification

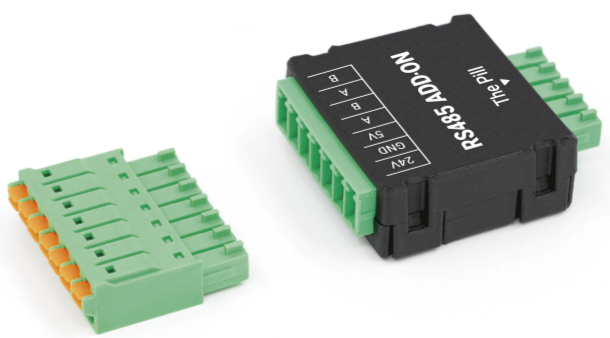

Device name: Modbus RS485 Add-on (Accessory for The Pill by Shelly)
Device model: N/A
Short description
Add-on for interfacing RS485 device and Modbus-RTU-enabled devices.
Communication add-on for integrating 3rd party systems into the Shelly ecosystem for data gathering and remote management, turning legacy system into IoT assets.
Main features
RS485 communication: enables Modbus and RS485 communication for automation projects.
Device electrical interfaces
Input/Output
-
24V (Input only)
-
5V
-
GND
-
RS485 communication lines A and B
Specifications
|
Physical |
|
|
Size (HxWxD): |
36 x 31 x 11.5 mm / 1.42 x 1.22 x 0.45 in |
|
Weight: |
12 g |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40°C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Electrical |
|
|
Power supply: |
|

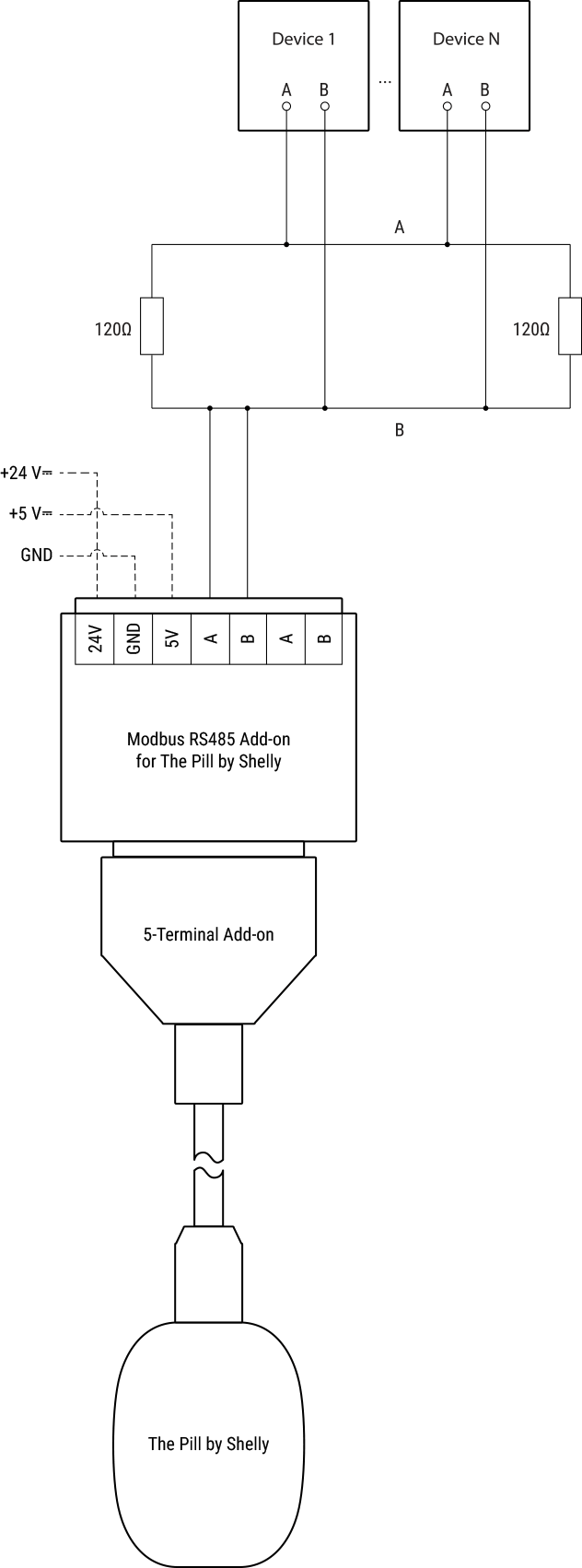

Basic wiring diagram
