Shelly Wall Display X2
Device identification
Device name: Shelly Wall Display X2
Device model: SAWD-2A1XX10EU1
Device Bluetooth ID: 0x3002
Short description

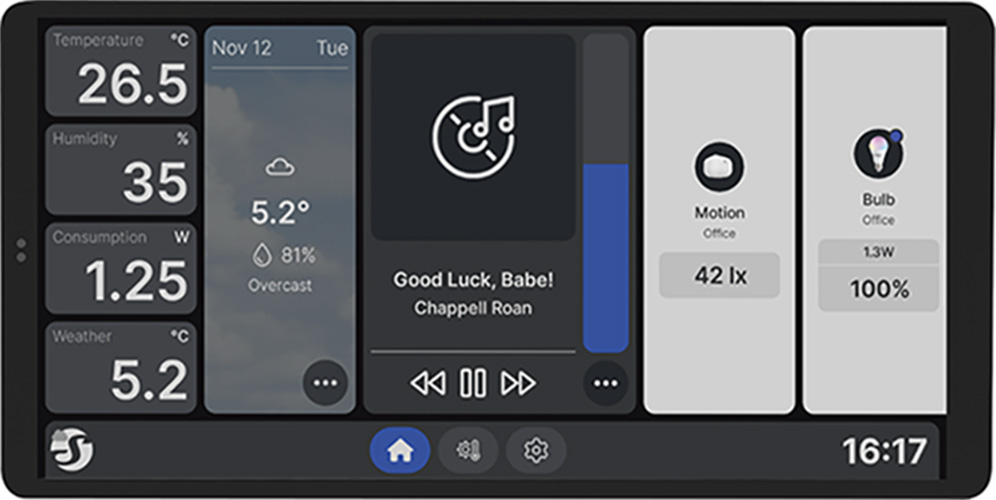

Shelly Wall Display X2 (the Device) is a smart home control panel with a 6.95” color display and load circuit switching functionality.
Main features
Touch-sensitive 6.95” color display
Easy navigation and customizable home screen
Choice between panoramic and portrait view on the display
Integrated relay for appliance control
Integrated temperature, humidity, and light sensors
Power consumption monitoring of all devices in a room in your Shelly Smart Control account
Touch-sensitive 6.95” color display
Easy navigation and customizable home screen
Choice between panoramic and portrait view on the display
Integrated relay for appliance control
Integrated temperature, humidity, and light sensors
Power consumption monitoring of all devices in a room in your Shelly Smart Control account
Use cases
Space-efficient fitting: Install the Shelly Wall Display X2 in standard electrical wall boxes for light switches.
Appliance Control: Use it to remotely control and automate the operation of various electric appliances such as lights, fans, or other devices. Adjust operation of dehumidifiers, humidifiers, and fans based on the current temperature and humidity conditions. Control other devices based on integrated LUX measurement sensor.
Power Monitoring: Monitor the power consumption of appliances in in the room in your Shelly Smart Control account. This is useful for understanding energy usage patterns and promoting energy efficiency.
Home Automation: Integrate the Shelly Wall Display X2 into your home automation system to create custom scenes and schedules for your devices.
Energy Efficiency: Leverage the power measurement feature to identify energy-hungry appliances and make informed decisions to improve overall energy efficiency in your home.
Remote Monitoring: Keep an eye on your devices even when you're away from home. The remote access feature allows you to monitor and control connected appliances from anywhere with internet connectivity.
Climate control: Adjust the heating, ventilation, and air conditioning system based on current temperature and humidity levels to maintain a comfortable indoor environment.
Prevent mold and mildew: Monitor humidity levels to prevent the growth of mold and mildew in spaces like basements and bathrooms. The Shelly Wall Display X2 can activate ventilation or dehumidification devices when needed.
Alerts and notifications: Receive alerts or notifications when the temperature or humidity reaches predefined thresholds and prevent issues like frozen pipes in cold weather or excessive moisture.
Optimizing greenhouse conditions: Optimize conditions for greenhouse plants by adjusting watering systems and ventilation based on humidity and temperature levels.
Security enhancement: Increase your home protection by detecting unusual temperature changes that might indicate fire or flood.

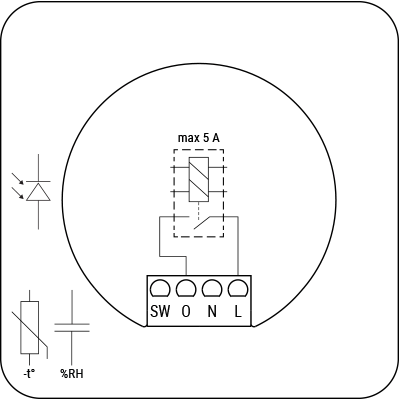

Simplified internal schematics
Device electrical interfaces
Inputs
1 switch/button input on screw terminal
2 power supply inputs on screw terminals: N and L
Outputs
1 relay output
Connectivity
Wi-Fi
Bluetooth
Safety function
Overheating protection
Overvoltage protection
Overcurrent protection
Overpower protection
Supported load types
Resistive (incandescent bulbs, heating appliances)
Capacitive (capacitor banks, electronic equipment, motor starting capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)
User interface
Touch-sensitive 6.95” 5-point capacity color display with fully-customizable layout.
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 87x178x33 mm / 3.43x7x1.3 inch |
Weight: | 256 g / 9.03 oz |
Touch Screen: | 5-point capacity screen |
Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 inch |
Mounting: | Wall box |
Shell material: | Plastic, aluminum, glass |
Shell color: | Black |
Speaker: | 0.8W*1 |
Environmental | |
Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity: | 30 % to 70 % RH |
Max. altitude: | 2000 m / 6562 ft |
Electrical | |
Power supply: | 230 VAC, 50/60Hz |
Power consumption: | < 1 W |
USB TYPE-C power supply: | 5V⎓, 1A |
Output circuits ratings | |
Max. switching voltage: | 230 VAC |
Max. switching current: | 5 A |
Sensors, meters | |
Internal-temperature sensor: | No |
Ambient temperature sensor: | Yes |
Humidity sensor: | Yes |
Light sensor: | Yes |
Microphone: | Yes |
G-sensor: | Yes |
Proximity sensor: | Yes |
Radio | |
Wi-Fi | |
Protocol: | 802.11 b/g/n |
RF band: | 2412 - 2472 МHz |
Max. RF power: | < 20 dBm |
Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: | 5.0 |
RF band: | 2402 - 2480 MHz |
Max. RF power: | < 4 dBm |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: | SC7731E, Quad Core A7 1.3GHz |
RAM: | 1 GB |
Flash: | 4 GB |
System: | Android 8.1 |
Firmware capabilities | |
Schedules: | 20 |
Webhooks (URL actions): | 20 with 2 URLs per hook… |
Scripting: | No |
MQTT: | Yes |

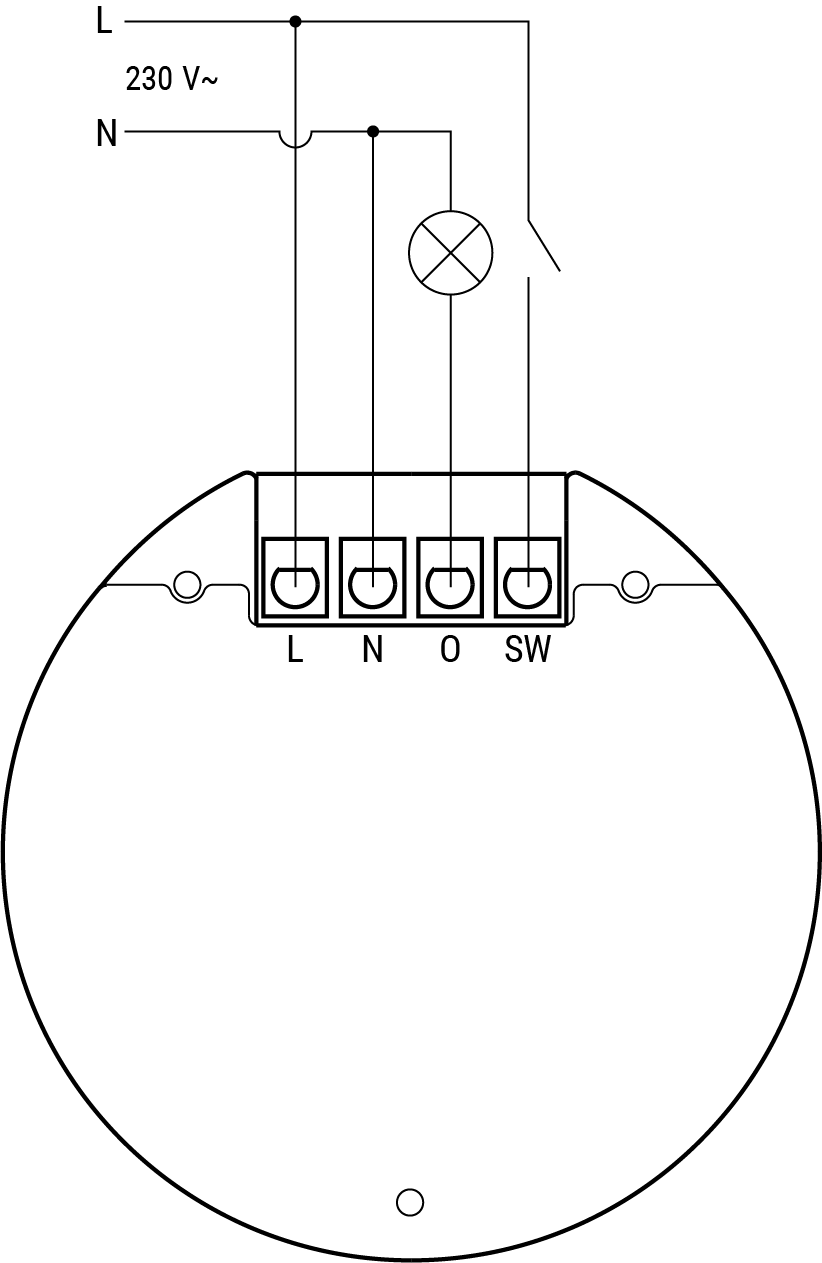

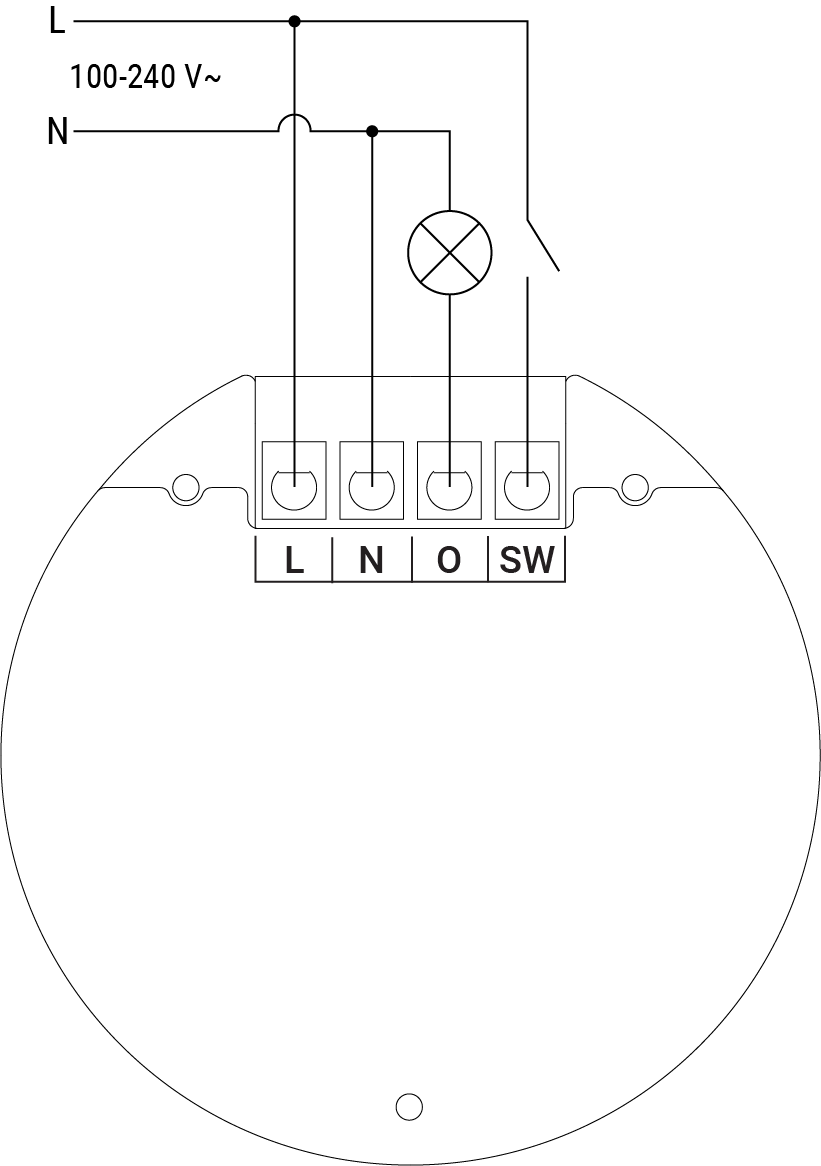

Basic wiring diagrams
Legend
Terminals | Wires | ||
|---|---|---|---|
SW | Switch input terminal | N | Neutral wire |
O | Output terminal | L | Live (230 VAC, 50/60 Hz) wire |
N | Neutral terminal | ||
L | Live (230 VAC, 50/60 Hz) terminal | ||
Troubleshooting
Ensure that the device is properly powered:
Check power cables, outlets, and any power indicators on the device.
Inspect Connections:
Verify that all connections, including cables and wiring, are secure and properly seated. Loose connections can lead to functionality issues.
Review Device Settings:
If applicable, check and review the device settings. Ensure that configurations are correct and match your intended use.
Update Firmware/Software:
Check if there are any available firmware or software updates for the device. Keeping the device up-to-date can resolve known issues and improve performance.
Restart or Reboot:
Sometimes, a simple restart can resolve temporary glitches. Turn off the device, wait a few seconds, and then power it back on.
Check Network Connection:
If the device is connected to a network, ensure that the network settings are correct. Test the network connection and consider restarting routers or switches if needed.
Inspect Physical Components:
Physically inspect the device for any signs of damage, overheating, or unusual behavior.
Check Compatibility:
Ensure that the device is compatible with other components in your system, including hardware and software. Incompatibility issues can lead to malfunctions.
Monitor Environmental Factors:
Consider environmental factors such as temperature and humidity.
Inspect Power Supply Quality:
Poor power quality, including voltage spikes or fluctuations, can affect device performance. Consider using a surge protector or voltage regulator if needed.
*These are general troubleshooting steps, and the specific steps may vary based on the type of device or issue you are facing. If the issue persists and you are unable to resolve it, consider reaching out to our technical customer support.
