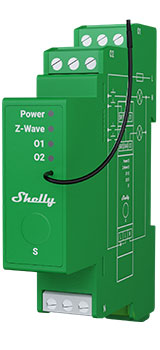

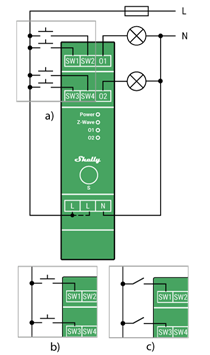

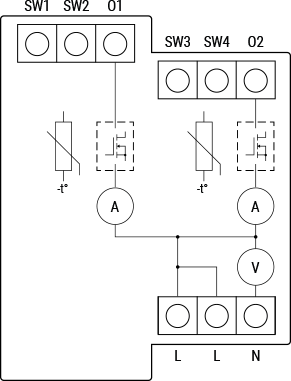

Shelly Wave PRO Dimmer 2PM AU

• OTA - Over-The-Air firmware update.

• FW - Firmware

• ZAF - Z-Wave® protocol

• NIF - Node Information Frame; the frame that is sent at every adding (inclusion) to present/advertise the Device’s capability to the gateway, so that it may adjust its operating ability.

• CC - Command Class (ZAF centerpiece of interoperability). The files/processes that determine how data is sent and handled/received. Command Classes include their signatures while sending data to allow recognition of which process is sending data for the destination device.

• Switch - A toggle switch or a bi-stable switch.

• Push-button - A momentary switch or a monostable switch.

• Switch/push-button - It can be a switch or a push-button.

• Double press - If the delay between the first and the second press on the switch/push-button is less than 500 ms, this is interpreted as a double press.

• Gateway (GW) - A Z-Wave® gateway, also referred to as a Z-Wave® controller, Z-Wave® main controller, Z-Wave® primary controller, or Z-Wave® hub, etc., is a device that serves as a central hub for a Z-Wave® smart home network. The term “gateway” is used in this document.

• Mesh network - devices can communicate with each other in addition to the gateway. Devices (only mains powered) can act as repeaters to extend network.

• Long range network - devices can communicate only with gateway (no repeater function).

• S button - The Z-Wave® Service button, located on Z-Wave® devices and is used for various functions such as adding (inclusion), removing (exclusion), resetting the device to its factory default settings and to switch power output on/off (valid only for Wave Plugs). The term "S button" is used in this document.

• Device - In this document, the term “Device” is used to refer to the Shelly Wave device that is a subject of this guide.

• End device - Z-Wave end devices are nodes in a Z-Wave network that are not gateways, such as switches, door locks, sensors, etc.

• Node ID - The Z-Wave Node ID is a unique identifier assigned at the adding (inclusion) to each device in a Z-Wave network, allowing the network to identify and communicate with this device.

• HOME ID - The Z-Wave Home ID is a unique identifier assigned to each Z-Wave network and each device in that network. It distinguishes your Z-Wave network from other networks and ensures that your Z-Wave devices only communicate with devices in your own network.

• Adding/Inclusion - The process of adding Z-Wave device to a Z-Wave network - gateway. The words included, added, etc. are used in this regard.

• Removing/Exclusion - The process of removing Z-Wave device from a Z-Wave network - gateway. The words excluded, removed, etc. are used in this regard.

• Factory reset - After Factory reset, all custom parameters and stored values (kWh, associations, routings, etc.) will return to their default state. The HOME ID and NODE ID assigned to the Device will be deleted. Use this reset procedure only when the gateway is missing or otherwise inoperable.

• *Learn mode - a state that allows the Device to receive network information from the gateway.

• Normal mode - Is the state of the device which refers to the operational state of a device when it is functioning under regular conditions (switching on/off, dimming, etc.) either during active usage or while in standby mode but still powered.

• SmartStart - SmartStart enabled devices can be added (included) to a Z-Wave network by scanning the Z-Wave QR code on the device with a Gateway that supports SmartStart inclusion. The SmartStart enabled device will be automatically added within 10 minutes of being switched on in the vicinity of the Z-Wave network.

• MUST - MUST be implemented

• OPTIONAL - implement it if time/budget allows

• Associations - Associations are used for direct communication between the Device and other devices within your Z-Wave network without the need of the Z-Wave gateway.

• Power cycle - Reboot the Device/power supply On/Off of the Device

• Blind - Refers to any kind of window treatment, such as venetian blinds, roller blinds (screens), roller shutters, vertical window blinds, curtains, integral venetian blinds, pleated blinds, awnings, etc. Additionally, Wave Shutter can also control window motors, projector screens, or any type of bi-directional AC motor.

• Power consumption (W) - refers to the rate at which energy is consumed or used by an electrical device or system. It is measured in watts (W).

• Energy consumption (kWh) - refers to the total amount of electrical energy consumed by a device or system over a specific period of time. It is measured in kilowatt-hours (kWh).

• Ordering code - The ordering code is the same as the Part number (PN). Where there is not enough space to write the Ordering code, abbreviation PN is used. The PN is written on the DSK label on each device.

Device has internal Overheat protection. If the temperature exceeds predefined values 80°C for more than 5s, the Device will:

• switch off its own output

• send the Notification Report to the gateway (Overheat detected)

• the LED lights react as specified above (check LED blinking mode for Overheat detected)

This alarm can be reset only by power cycle.

Additional description above under chapter Notification for Overheat detected.

Device has internal Overcurrent protection. If the current exceeds 0,9A+15% for more than 5s on O1, or if the current exceeds 0,9A+15% for more than 5s on O2, the Device will:

• switch off its own output

• sends the Notification Report to the gateway (Overcurrent detected)

• the LED lights react as specified above (check LED blinking mode for Overcurrent detected)

This alarm can be reset only by power cycle.

Additional description above under chapter Notification for Over-current detected.

Device has internal Overvoltage protection. This is valid for standard power supply voltage 230 V AC. If the voltage exceeds 240 V AC+15% (278 V AC) for more than 5s, the Device will:

• switch off its own output

• sends the Notification Report to the Gateway (Overvoltage detected)

• the LED lights react as specified above (check LED blinking mode for Overvoltage detected)

This alarm can be reset only by power cycle.

Additional description above under chapter Notification for Over-voltage detected.

General rulesSwitching between Normal and Settings mode is done by press and hold the S button.Solid LED means that you are in the Settings mode (this is not valid for Plugs). Once in settings mode, switch to normal mode goes automatically after 10s.If the LED is not in Alarm mode, it will turn off after a timeout of 30min. Pressing the S button or power cycling the Device will wake the LED for 30min.During module boot up LED will blink in mode 5 (0,2s On blue/0,2s On red) for 4-5 s.Normal mode LED status: Normal mode is defined by stable device function that can remain for an infinite time.
LED type: RGB dimmable

Normal mode

Removed/Excluded not calibratedThe LED will be blinking blue and yellow in Mode 1 for 30min after every power cycle and 10min after S button pressed.
Added/Included not calibratedThe LED will be blinking green and yellow in Mode 1 for 10min after every power cycle and 10min after S button pressed.

Removed/Excluded & calibratedThe LED will be blinking blue and green in Mode 1 for 30min after every power cycle and 10min after S button pressed.

Added/Included & calibratedThe LED will be blinking green in Mode 1 for 30min after every power cycle and 10min after S button pressed.

Settings in progress

Factory reset and rebootDuring factory reset, the LED will turn solid green for approx. 1sec, then the blue and red LED will be blinking 0,1s On / 0,1s Off for about 2sec.
Adding / RemovingDuring adding or removing, the LED will be blinking blue in Mode 2.

OTA firmware updatingDuring the OTA update, the LED will be blinking blue and red in Mode 2.
Checking AC or DC voltage power supplyDuring checking the power supply, the LED will be blinking blue and red in Mode 5.
Load calibrationDuring the calibration, the LED will be blinking yellow in Mode 2.

Settings mode with S button

Adding / Removing menu selected (*adding not available for Long Range inclusion)When the menu is selected the LED will be on blue, for maximum of 10 seconds.
Adding / Removing menu - while pressing S- button - Add/Remove process selected (*adding not available for Long Range inclusion)When the menu is executing the LED will be blinking blue in Mode 3.
Factory reset menu selectedWhen the menu is selected the LED will be on red, for maximum of 10 seconds.
Factory reset  - while pressing S - button - Factory reset process selectedWhen the menu is executing the LED will be blinking red in Mode 3.
Calibration menu selectedWhen the menu is selected the LED will be on yellow, for maximum of 10 seconds.
Calibration  - while pressing S- button - Calibration process selectedWhen the menu is executing the LED will be blinking yellow in Mode 3.

Alarm Mode
Overheat detected The LED will be blinking red in Mode 4

Overcurrent detected O1The LED will be blinking red in Mode 4

Overcurrent detected O2The LED will be blinking red in Mode 4
Overvoltage detectedThe LED will be blinking red in Mode 4

Adding the Device to a Z-Wave® network (inclusion)

SmartStart adding (inclusion)SmartStart enabled products can be added into a Z-Wave® network by scanning the Z-Wave® QR Code present on the Device with a gateway providing SmartStart inclusion. No further action is required, and the SmartStart device will be added automatically within 10 minutes of being switched on in the network vicinity.With the gateway application scan the QR code on the Device label and add the Security 2 (S2) Device Specific Key (DSK) to the provisioning list in the gateway.Connect the Device to a power supply.Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.Adding will be initiated automatically within a few seconds after connecting the Device to a power supply, and the Device will be added to a Z-Wave® network automatically.The blue LED will be blinking in Mode 2 during the adding process.The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

Adding (inclusion) with the S button (*not available for Long Range inclusion)Connect the Device to a power supply.Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.Enable add/remove mode on the gateway.To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.The blue LED will be blinking in Mode 2 during the adding process.The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

Adding (inclusion) with a switch/push-button (*not available for Long Range inclusion)Connect the Device to a power supply.Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.Enable add/remove mode on the gateway.Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2, etc.) 3 times within 3 seconds (this procedure puts the Device in Learn mode*). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.The blue LED will be blinking in Mode 2 during the adding process.The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.*Learn mode - a state that allows the Device to receive network information from the gateway.

Removing the Device from a Z-Wave® network (exclusion)

Removing (exclusion) with the S buttonConnect the Device to a power supply.Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave® network.Enable add/remove mode on the gateway.To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.The blue LED will be blinking in Mode 2 during the removing process.The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave® network.
Removing (exclusion) with a switch/push-buttonConnect the Device to a power supply.Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave® network.Enable add/remove mode on the gateway.Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 3 times within 3 seconds (this procedure puts the Device in Learn mode). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.The blue LED will be blinking in Mode 2 during the removing process.The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave® network.

Factory reset

Factory reset generalAfter Factory reset, all custom parameters and stored values (kWh, associations, routings, etc.) will return to their default state. HOME ID and NODE ID assigned to the Device will be deleted. Use this reset procedure only when the gateway is missing or otherwise inoperable.
Factory reset with the S button

To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.Press the S button multiple times until the LED turns solid red.Press and hold (> 2s) S button on the Device until the red LED starts blinking in Mode 3. Releasing the S button will start the factory reset.During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.The blue LED will be blinking in Mode 1 if the Factory reset is successful.
Factory reset with a switch/push-button Connect the Device to a power supply.Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 5 times within 3 seconds. The Device must receive on/off signal 5 times, which means pressing the push-button 5 times, or toggling the switch on and off 5 times.During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.The blue LED will be blinking in Mode 1 if the Factory reset is successful.
Remote factory reset with parameter with a gatewayFactory reset can be done remotely with the settings in Parameter No. 120.

Z-Wave® Security 2 and Device Specific Key (DSK)

The Device supports the latest Security 2 (S2) feature. S2 is handled by the strong AES 128 Encryption protocol, which means that the S2 makes Z-Wave® the most secure IoT (Internet of Things) security platform out there. To fully utilize the product and its Security 2 feature, a Security 2-enabled Z-Wave® gateway must be used.

Authenticated Control

• Out-Of-Band DSK for adding (inclusion)

• May be used by most implementations

The Device also supports Security 2 Authenticated, Unauthenticated, and Unsecure adding (inclusion).



The first five digits of the key are highlighted or underlined to help the user identify the PIN Code part of the DSK text. The DSK is additionally represented with a QR Code as shown on the image.



Z-Wave® DSK label and QR code (example)

A joining node requesting to join the S2 Access Control Class or the S2 Authenticated Class will obfuscate its Public Key by setting the bytes 1..2 to zeros (0x00) before transferring its key via RF.

The DSK may be used for out-of-band (OOB) authentication.

• The including gateway may use a QR code scanning device to read the entire DSK of the joining device and match it with the obfuscated public key received via RF from the joining device.

ⓘ NOTE: This Device must be used in conjunction with a Security Enabled Z-Wave® gateway to fully utilize all implemented functions.

ⓘ NOTE: This Device is a security enabled Z-Wave Plus® product that can use encrypted Z-Wave Plus® messages to communicate to other security enabled Z-Wave Plus® products.

ⓘ NOTE: DSK access via UI gateways, which implement the S2 and SmartStart security feature, display an input dialog box, with a full or partial DSK key. Most of them display a partial DSK (they do not show the PIN code) when the Device is added with the S2-Authenticated security scheme. When added with the S2-Unauthenticated, some gateways show the complete DSK while others perform the complete adding (inclusion) process without prompting the user with the dialogue.

Parameter No. 1 - SW (SW1) Switch type

This parameter defines how the Device should treat the switch (which type) connected to the SW (SW1) terminal.

Value size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - momentary switch (push button),

• 1 - toggle switch (contact closed - ON / contact opened - OFF),

• 2 - toggle switch (Device changes status when switch changes status)

Parameter No. 2 - SW2 Switch type

This parameter defines how the Device should treat the switch (which type) connected to the SW2 terminal.

Value size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - momentary switch (push button),

• 1 - toggle switch (contact closed - ON / contact opened - OFF),

• 2 - toggle switch (device changes status when switch changes status)

Parameter No. 3 - SW3 Switch typeThis parameter defines how the Device should treat the switch (which type) connected to the SW3 terminal.Value size: 1 ByteDefault value: 0Values & descriptions:0 - momentary switch (push button), 1 - toggle switch (contact closed - ON / contact opened - OFF), 2 - toggle switch (device changes status when switch changes status) Parameter No. 4 - SW4 Switch typeThis parameter defines how the Device should treat the switch (which type) connected to the SW4 terminal.Value size: 1 ByteDefault value: 0Values & descriptions:0 - momentary switch (push button), 1 - toggle switch (contact closed - ON / contact opened - OFF), 2 - toggle switch (device changes status when switch changes status)

Parameter No. 7 - SW (SW1) detach mode

In this mode the input SW (SW1) is separated/not changing the state of the output.

Value size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - normal mode

• 1 - detached mode

Parameter No. 8 - SW2 detach mode

In this mode the input SW 2 is separated/not changing the state of the output.

Value size: 1 Byte

Default value: 1

Values & descriptions:

• 0 - normal mode

• 1 - detached mode

Parameter No. 9 - SW3 detach mode

In this mode the input SW 3 is separated/not changing the state of the output.

Value size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - normal mode

• 1 - detached mode

Parameter No. 10 - SW4 detach mode

In this mode the input SW 4 is separated/not changing the state of the output.

Value size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - normal mode

• 1 - detached mode

Parameter No. 17 - Restore the O (O1) state after a power failure

This parameter determines if the on/off status is saved and restored for the load connected to O (O1) after a power failure.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - Device saves last on/off status and restores it after a power failure

• 1 - Device does not save on/off status and does not restore it after a power failure, it remains off

Parameter No. 18 - Restore the O2 state after a power failure

This parameter determines if the on/off status is saved and restored for the load connected to O2 after a power failure.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - Device saves last on/off status and restores it after a power failure

• 1 - Device does not save on/off status and does not restore it after a power failure, it remains off

Parameter No. 19 - O (O1) Auto OFF with timer

If the load O (O1) is ON, you can schedule it to turn OFF automatically after the period of time defined in this parameter. The timer resets to zero each time the Device receives an ON command, either remotely (from the gateway or associated device) or locally from the switch.

Values size: 2 Byte

Default value: 0

Values & their descriptions:

• 0 - Auto OFF Disabled

• 1 - 32535 = 1 - 32535 seconds or milliseconds – see Parameter no. 25. Set timer units to s or ms for O (O1) resolution 100ms

Parameter No. 20 - O (O1) Auto ON with timerIf the load O (O1) is OFF, you can schedule it to turn ON automatically after the period of time defined in this parameter. The timer resets to zero each time the Device receives an OFF command, either remotely (from the gateway or associated device) or locally from the switch.Values size: 2 ByteDefault value: 0Values & their descriptions:0 - Auto ON Disabled1 - 32535 = 1 - 32535 seconds or milliseconds – see Parameter no. 25. Set timer units to s or ms for O (O1) resolution 100msParameter No. 21 - O2 Auto OFF with timerIf the load O2 is ON, you can schedule it to turn OFF automatically after the period of time defined in this parameter. The timer resets to zero each time the device receives an ON command, either remotely (from the gateway or associated device) or locally from the switch.Values size: 2 ByteDefault value: 0Values & their descriptions:0 - Auto OFF Disabled1 - 32535 = 1 - 32535 seconds or milliseconds – see Parameter no. 26. Set timer units to s or ms for O2 resolution 100ms Parameter No. 22 - O2 Auto ON with timerIf the load O2 is OFF, you can schedule it to turn ON automatically after the period of time defined in this parameter. The timer resets to zero each time the device receives an OFF command, either remotely (from the gateway or associated device) or locally from the switch.Values size: 2 ByteDefault value: 0Values & their descriptions:0 - Auto ON Disabled1 - 32535 = 1 - 32535 seconds or milliseconds – see Parameter no. 26. Set timer units to s or ms for O2 resolution 100ms

Parameter No. 25 - Set timer units to s or ms for O (O1)

Set the timer units to seconds or milliseconds. Choose if you want to set the timer in seconds or milliseconds in Parameters No. 19, 20.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 – timer set in seconds

• 1 – timer set in milliseconds

Parameter No. 26 - Set timer units to s or ms for O2

Set the timer units to seconds or milliseconds. Choose if you want to set the timer in seconds or milliseconds in Parameters No. 21, 22.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 – timer set in seconds

• 1 – timer set in milliseconds

Parameter No. 36 - O (O1) Power report on change - percentageThis parameter determines the minimum change in consumed power that will result in sending a new report to the gateway.Values size: 1 ByteDefault value: 10Values & descriptions:0 - reports are disabled1-100 (1-100%) - change in power

Parameter No. 37 - O2 Power report on change - percentageThis parameter determines the minimum change in consumed power that will result in sending a new report to the gateway.Values size: 1 ByteDefault value: 10Values & descriptions:0 - reports are disabled1-100 (1-100%) - change in power Parameter No. 39 - Minimum time between reports (O) O1This parameter determines the minimum time that must elapse before a new power report on O (O1) is sent to the gateway.Values size: 1 ByteDefault value: 30 Values & descriptions:0 - reports are disabled1-120 (1-120s) - report interval Parameter No. 40 - Minimum time between reports O2This parameter determines the minimum time that must elapse before a new power report on O2 is sent to the gateway.Values size: 1 ByteDefault value: 30Values & descriptions:0 - reports are disabled1-120 (1-120s) - report interval10-120 (10-120s) - report interval, remark

Parameter No. 78 - Forced Dimmer calibration O (O1)By setting this parameter to value 1 the Device will start executing force calibration procedure for channel O (O1). The parameter also reports the calibration status by sending the get parameter value command.Values size: 1 ByteDefault value: 3 (after factory reset)Values & descriptions:1 - start calibration2 - device is calibrated (read only)3 - device is not calibrated (read only)4 - calibration error (read only)

Parameter No. 89 - Forced Dimmer calibration O2By setting this parameter to value 1 the Device will start executing force calibration procedure for channel O2. The parameter also reports the calibration status by sending the get parameter value command.Values size: 1 ByteDefault value: 3 (after factory reset)Values & descriptions:1 - start calibration2 - device is calibrated (read only)3 - device is not calibrated (read only)4 - calibration error (read only) Parameter No. 117 - Remote Device rebootThis parameter enable restarting or rebooting the Device without physical intervention. Use this parameter only for troubleshooting scope. After device reboot the parameter value will be set to default.Values size: 1 ByteDefault value: 0Values & descriptions:0 - function inactive1 - Remote device reboot

Parameter No. 120 - Factory Reset

Reset to factory default settings and removed from the Z-Wave network.

The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - No action

• 1 - Factory reset

Parameter No. 121 - MAX dimming value O (O1)The value set in this parameter determines the maximum dimming value (the highest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)).Values size: 1 ByteDefault value 99 = 99% (Maximum dimming value)Values & descriptions:1 - 99% = 2% - 99%, step is 1%

Parameter No. 122 - MAX dimming value O2The value set in this parameter determines the maximum dimming value (the highest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)).Values size: 1 ByteDefault value 99 = 99 % (Maximum dimming value)Values & descriptions:1 - 99 = 2 % - 99 %, step is 1 %. Maximum dimming value is set by entering a value.

Parameter No. 123 - Min. dimming value dim specific par. O (O1)The value set in this parameter determines the minimum dimming value (the lowest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)).Values size: 1 ByteDefault value 15 = 15 % (minimum dimming value)Values & descriptions:0 - 98 = 1 % - 98 %, step is 1 %. Minimum dimming value is set by entering a value.

Parameter No. 124 - Max. dimming value dim specific par. O2The value set in this parameter determines the minimum dimming value (the lowest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)).Values size: 1 ByteDefault value 15 = 15 % (minimum dimming value)Values & descriptions:0 - 98 = 1 % - 98 %, step is 1 %. Minimum dimming value is set by entering a value. Parameter No. 125 - Dimming time (soft on/off) dim specific par. O (O1) (Dimming time short click O (O1))Choose the time during which the device will move between the min. and max. dimming values by a short press of the momentary switch connected to input terminal.Values size: 1 ByteDefault value 3 = 3 sValues & descriptions:1 - 10 = 1 seconds - 10 seconds, step is 1 secondParameter No. 126 - Dimming time (soft on/off) dim specific par. O2 (Dimming time short click O2)Choose the time during which the device will move between the min. and max. dimming values by a short press of the momentary switch connected to input terminal.Values size: 1 ByteDefault value 3 = 3 sValues & descriptions:1 - 10 = 1 seconds - 10 seconds, step is 1 second Parameter No. 127 - Fade rate O (O1) (Dimming time when key hold)Choose the time during which the Dimmer will move between the min. and max. dimming values during a continuous press of the momentary switch connected to terminal, by an associated device.Values size: 1 ByteDefault value 3 = 10% per secondValues & descriptions:0 = non-dimmable load1 = 5% / sec2 = 7% / sec3 = 10% /sec (default)4 = 15% / sec5 = 20% / secParameter No. 128 - Fade rate O2 ( Dimming time when key hold)Choose the time during which the Dimmer will move between the min. and max. dimming values during a continuous press of the momentary switch connected to terminal, by an associated device.Values size: 1 ByteDefault value 3 = 10% per secondValues & descriptions:1 = 5% / sec2 = 7% / sec3 = 10% /sec (default)4 = 15% / sec5 = 20% / sec Parameter No. 129 - Minimum brightens on toggle O (O1) dim specific par.Minimum brightness on toggle can be changed by the user to the desired level. It is applied on toggle on (Off → On state change) when the Light brightness < min_brightness_on_toggle.Values size: 1 ByteDefault value 15Values & descriptions:1 - 99 = 2 % - 99 %, step is 1 %.Parameter No. 130 - Minimum brightens on toggle O2 dim specific par.Minimum brightness on toggle can be changed by the user to the desired level. It is applied on toggle on (Off → On state change) when the Light brightness < min_brightness_on_toggle.Values size: 1 ByteDefault value 15Values & descriptions:1 - 99 = 2 % - 99 %, step is 1 %. Parameter No. 131 - SW1 & SW2 Dual Button ModeSW1 & SW2 Dual button (only push button)Values size: 1 ByteDefault value 0Values & descriptions:0 - Inactive1 - Active

Parameter No. 132 - SW3 & SW4 Dual Button ModeSW1 & SW2 Dual button (only push button)Values size: 1 ByteDefault value 0Values & descriptions:0 - Inactive1 - Active
Parameter No. 201 - Serial Number 1This parameter contains a part of device’s serial number.The parameter is Read-Only and cannot be changed.The parameter is Advanced and may be hidden under the Advanced tag.Values size: 4 ByteDefault value: Device specificValues & descriptions:·         0x00000000 - 0x7FFFFFFF
Parameter No. 202 - Serial Number 2This parameter contains a part of device’s serial number.The parameter is Read-Only and cannot be changed.The parameter is Advanced and may be hidden under the Advanced tag.Values size: 4 ByteDefault value: Device specificValues & descriptions:·         0x00000000 - 0x7FFFFFFF
Parameter No. 203 - Serial Number 3This parameter contains a part of device’s serial number.The parameter is Read-Only and cannot be changed.The parameter is Advanced and may be hidden under the Advanced tag.Values size: 4 ByteDefault value: Device specificValues & descriptions:·         0x00000000 - 0x7FFFFFFF

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. SWITCH_BINARY_V2 [S0, S2]*

5. CENTRAL_SCENE_V3 [S0, S2]*

6. CONFIGURATION_V4 [S0, S2]*

7. DEVICE_RESET_LOCALLY_V1 [S0, S2]*

8. FIRMWARE_UPDATE_MD_V5 [S0, S2]*

9. INDICATOR_V3 [S0, S2]*

10. MANUFACTURER_SPECIFIC_V2 [S0, S2]*

11. METER_V6 [S0, S2]*

12. MULTI_CHANNEL_V4 [S0, S2]*

13. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

14. SWITCH_MULTILEVEL_V4 [S0, S2]*

15. NOTIFICATION_V8 [S0, S2]*

16. POWERLEVEL_V1 [S0, S2]*

17. SECURITY_V1

18. SECURITY_2_V1

19. SUPERVISION_V1

20. TRANSPORT_SERVICE_V2

21. VERSION_V3 [S0, S2]*

22. ZWAVEPLUS_INFO_V2

EndPoint 1

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. METER_V6 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. SWITCH_MULTILEVEL_V4 [S0, S2]*

7. NOTIFICATION_V8 [S0, S2]*

8. SUPERVISION_V1

9. ZWAVEPLUS_INFO_V2

EndPoint 2

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. METER_V6 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. SWITCH_MULTILEVEL_V4 [S0, S2]*

7. NOTIFICATION_V8 [S0, S2]*

8. SUPERVISION_V1

9. ZWAVEPLUS_INFO_V2

EndPoint 3

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. SWITCH_BINARY_V2 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. SUPERVISION_V1

7. ZWAVEPLUS_INFO_V2

EndPoint 4

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. SWITCH_BINARY_V2 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. SUPERVISION_V1

7. ZWAVEPLUS_INFO_V2

EndPoint 5

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. SWITCH_BINARY_V2 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. SUPERVISION_V1

7. ZWAVEPLUS_INFO_V2

EndPoint 6

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. SWITCH_BINARY_V2 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. SUPERVISION_V1

7. ZWAVEPLUS_INFO_V2

[S2]* Security S2 Command Class

Supporting Command Class Basic

COMMAND_CLASS_BASIC is mapped into COMMAND_CLASS_SWITCH_BINARY, for enabling Switch (O) O1, O2,.. control:

Switch (O) O1, O2,.. will be turned ON or OFF, after receiving the BASIC_SET command:

Supporting Command Class Indicator

The Device supports the Command Class Indicator V3 (ID 0x50). When the Device receives an indicator set, the LED blinks according to the received indicator set.

Refer to LED Signalization chapter.

Supporting Meter Command Class

The product supports the meter command class and KWh is the default scale report send when the scale type is not present in the received Get.

Overheat detected

Over-current detected O1

Over-current detected O2

Over-voltage detected

Associations are used for direct communication between the Device and other devices within your Z-Wave network without the need of the Z-Wave gateway.
Max. number of associated devices per group is 9. This value is fixed and cannot be configured.
Each association group supports the association of up to 9 devices (nodes). To avoid network delays, we recommend limiting the number of associated devices to no more than 5 per group. "Lifeline group" is reserved for controlling devices, such as Gateways and remote controllers, or devices who can interpret the reports sent.Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Max. 9 nodes are allowed:

Root device
Root device - Association Group 1 - Lifeline

1. INDICATOR_REPORT : LED status

2. DEVICE_RESET_LOCALLY_NOTIFICATION : triggered upon request

3. SWITCH_BINARY_REPORT : status change report on SW (SW1)

4. SWITCH_BINARY_REPORT : status change report on SW2

5. SWITCH_BINARY_REPORT : status change report on SW3

6. SWITCH_BINARY_REPORT : status change report on SW4

7. SWITCH MULTILEVEL REPORT: triggered upon request or according to Configuration parameters 36 and 39 (note that this command class is active only in dimmer mode for O (O1))

8. SWITCH MULTILEVEL REPORT: triggered upon request or according to Configuration parameters 37 and 40 (note that this command class is active only in dimmer mode for O2)

9. NOTIFICATION_REPORT : triggered on Overheat

10. NOTIFICATION_REPORT : triggered on Overcurrent detected O (O1)

11. NOTIFICATION_REPORT : triggered on Overcurrent detected O2

12. NOTIFICATION_REPORT : triggered on Overvoltage detected

13. METER_REPORT : triggered by load power consumption connected to output O (O1) (according to the settings of Parameters No. 36 and 39)

14. METER_REPORT : triggered by load power consumption connected to output O2 (according to the settings of Parameters No. 37 and 40)

15. CENTRAL_SCENE_NOTIFICATION

16. CENTRAL_SCENE_CONFIGURATION_REPORT

Root device - Association Group 6 (*not available for Long Range inclusion)

Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Basic command class).
Triggered by SW (SW1). The device sends according to the state of SW (SW1) (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Root device - Association Group 7 (*not available for Long Range inclusion)

Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Switch Multilevel command class). Triggered by SW (SW1). It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Root device - Association Group 8 (*not available for Long Range inclusion)

Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Basic command class).
Triggered by SW2. The device sends according to the state of SW2 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Root device - Association Group 9 (*not available for Long Range inclusion)

Allowed nodes: 9It is assigned to switch connected to the SW2 terminal (uses Switch Multilevel command class). Triggered by SW2. It is recommended to use push buttons for this association. Supports the following command classes:SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)Root device - Association Group 10 (*not available for Long Range inclusion)

Allowed nodes: 9
It is assigned to switch connected to the SW3 terminal (uses Basic command class).
Triggered by SW3. The device sends according to the state of SW3 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Root device - Association Group 11 (*not available for Long Range inclusion)

Allowed nodes: 9
It is assigned to switch connected to the SW3 terminal (uses Switch Multilevel command class). Triggered by SW3. It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Root device - Association Group 12 (*not available for Long Range inclusion)

Allowed nodes: 9
It is assigned to switch connected to the SW4 terminal (uses Basic command class).
Triggered by SW4. The device sends according to the state of SW4 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Root device - Association Group 13 (*not available for Long Range inclusion)

Allowed nodes: 9
It is assigned to switch connected to the SW4 terminal (uses Switch Multilevel command class). Triggered by SW4. It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 1

Endpoint 1 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

​SWITCH MULTILEVEL REPORT: triggered upon request or according to Configuration parameters 36 and 39 (note that this command class is active only in dimmer mode for O (O1))

NOTIFICATION_REPORT : triggered on Overheat

NOTIFICATION_REPORT : triggered on Overcurrent detected O (O1)

NOTIFICATION_REPORT : triggered on Overvoltage detected

METER_REPORT : triggered by load power consumption connected to output O (O1) (according to the settings of Parameters No. 36 and 39)

Endpoint 2

Endpoint 2 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

SWITCH MULTILEVEL REPORT: triggered upon request or according to Configuration parameters 37 and 40 (note that this command class is active only in dimmer mode for O2)NOTIFICATION_REPORT : triggered on Overheat

NOTIFICATION_REPORT : triggered on Overcurrent detected O2

NOTIFICATION_REPORT : triggered on Overvoltage detected

METER_REPORT : triggered by load power consumption connected to output O2 (according to the settings of Parameters No. 37 and 40)

Endpoint 3

Endpoint 3 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

SWITCH_BINARY_REPORT : status change report on SW (SW1)

Endpoint 3 - Association Group 2 (*not available for Long Range inclusion)

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Basic command class).
Triggered by SW (SW1). The device sends according to the state of SW (SW1) (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Endpoint 3 - Association Group 3 (*not available for Long Range inclusion) Association Group 3Allowed nodes: 9It is assigned to switch connected to the SW (SW1) terminal (uses Switch Multilevel command class). Triggered by SW (SW1). It is recommended to use push buttons for this association. Supports the following command classes:SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 4

Endpoint 4 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

SWITCH_BINARY_REPORT : status change report on SW2

Endpoint 4 - Association Group 2 (*not available for Long Range inclusion)

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Basic command class).
Triggered by SW2. The device sends according to the state of SW2 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Endpoint 4 - Association Group 3 (*not available for Long Range inclusion) Association Group 3Allowed nodes: 9It is assigned to switch connected to the SW2 terminal (uses Switch Multilevel command class). Triggered by SW2. It is recommended to use push buttons for this association. Supports the following command classes:SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 5

Endpoint 5 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

SWITCH_BINARY_REPORT : status change report on SW3

Endpoint 5 - Association Group 2 (*not available for Long Range inclusion)

Association Group 2Allowed nodes: 9It is assigned to switch connected to the SW3 terminal (uses Basic command class).Triggered by SW3. The device sends according to the state of SW3 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device.Supports the following command classes:BASIC_SET : set On / Off state at the associated deviceEndpoint 5 - Association Group 3 (*not available for Long Range inclusion)

Association Group 3
Allowed nodes: 9
It is assigned to switch connected to the SW3 terminal (uses Switch Multilevel command class). Triggered by SW3.

It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 6

Endpoint 6 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

SWITCH_BINARY_REPORT : status change report on SW4

Endpoint 6 - Association Group 2 (*not available for Long Range inclusion)

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW4 terminal (uses Basic command class).
Triggered by SW4. The device sends according to the state of SW4 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device.Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Endpoint 6 - Association Group 3 (*not available for Long Range inclusion) Association Group 3Allowed nodes: 9It is assigned to switch connected to the SW4 terminal (uses Switch Multilevel command class). Triggered by SW4. It is recommended to use push buttons for this association. Supports the following command classes:SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)
