Shelly BLU Gateway Gen3 web interface guide
Overview
Shelly devices provide a local web interface to control and configure your devices through a standard web browser on either your computer or mobile device. Its functionality encompasses an array of adjustment and control features, including the ability to power your device on or off, set schedules and configure actions to be executed when certain conditions are met, configure the device and much more.
Note that you do not need internet connection or Shelly Cloud to use the local web interface - the only requirement is that your browser must be in the same WiFi network as your Shelly device.
Accessing the web interface
For devices with an access point:
Connect your device to a Wi-Fi network with a name (SSID) that follows this format: "DeviceName-XXXXXXXXXX", where ‘DeviceName’ is the name of the device you’d like to connect to, while 'XXXXXXXXXX' represents a unique combination of letters and numbers, constituting the device ID.
After establishing a connection to the device’s Access Point / AP (the Wi-Fi network mentioned in step 1), accessing the web interface is done by entering the universal IP address for all Shelly devices 192.168.33.1 in your browser.
For Wi-Fi devices without an access point:
Connect the device to your Wi-Fi network.
While you’re connected to that network, go to the IP address shown on your device.
You are now in the web interface of your device.
Connecting your device to a Wi-Fi network
Some of the settings you’ll see in the web interface are only available if the device is connected to the internet. To do that, follow these steps:
From the Web interface, navigate to Settings>Wi-Fi.
Either input or select your preferred Wi-Fi network and then enter its password. Alternatively, connecting to an open network is also an option, facilitated by selecting the checkbox for connecting to open Wi-Fi networks. Additionally, it is recommended to set a static IP address.
Allow your device a few seconds, so it can try to connect to the Wi-Fi network you provided. If the password you typed in is incorrect, or the Wi-Fi network lacks sufficient strength or stability, a message will be displayed in the web interface, notifying you that a connection couldn’t be established. Upon successful connection to the Wi-Fi, a link, containing the new IP address will appear as text above the Wi-Fi settings. Simply copy and paste this link into your browser.
You are now in the web interface of your internet-connected device. The next time you need to access the web UI, simply connect to the same Wi-Fi network as your device and type in the new IP address, obtained in step 3. Setting a static IP address is recommended because it guarantees consistent accessibility at that specific address.
Understanding the layout
The web interface can be divided into four main sections - the header, footer, main menu, and main content.
Header
The header consists of two components - the name of your device on the left and a few icons, which display your device’s main network and connectivity features on the right. These icons can encompass functionalities such as Wi-Fi, Bluetooth, MQTT, and more, as well as an icon that shows if there are any new firmware updates for your device. Hovering with your mouse on an icon will provide you with further information. You’ll find a legend with the meaning of each icon in the web interface guide of each device. Please note that the individual guides explain only the connectivity features available for that specific device.
Footer
At the bottom of the screen from left to right in order are the device model name, its ID, the version of the web interface, the firmware version of the device, and finally, the current time. If the time is not synced, you will recieve a notification at the top of the screen, and some schedules and actions may not work as expected. Some previous versions of the web interface do not include all of these components.
Main menu
The main menu in the desktop version of the web interface is on the left, whereas on mobile, it looks like a hamburger menu with an icon of three horizontal lines, stacked on top of each other. The menu contains different things, depending on the device, but clicking an item from it takes you to a different page. You can also use it to get back to the Home page by clicking Home.
Main content
By clicking on an item from the main menu, you’ll be able to navigate through the web interface. Everything that you see on the screen, excluding the header, footer, and main menu is considered main content.
*Please note that not all of the web interface screenshots displayed at the top of each web interface guide page (where there is a screenshot present) are of the latest version. Therefore, they may look a bit different than the latest version and may not represent the look of every device's web interface.
Main Menu
Below are explanations of each setting in the main menu, including what is visualised as main content upon clicking on the different settings. A brief introduction of the icons in the header, specific to this device, is also present in the Home page explanation. Note that the header is present in all of the screens, not just the Home page.

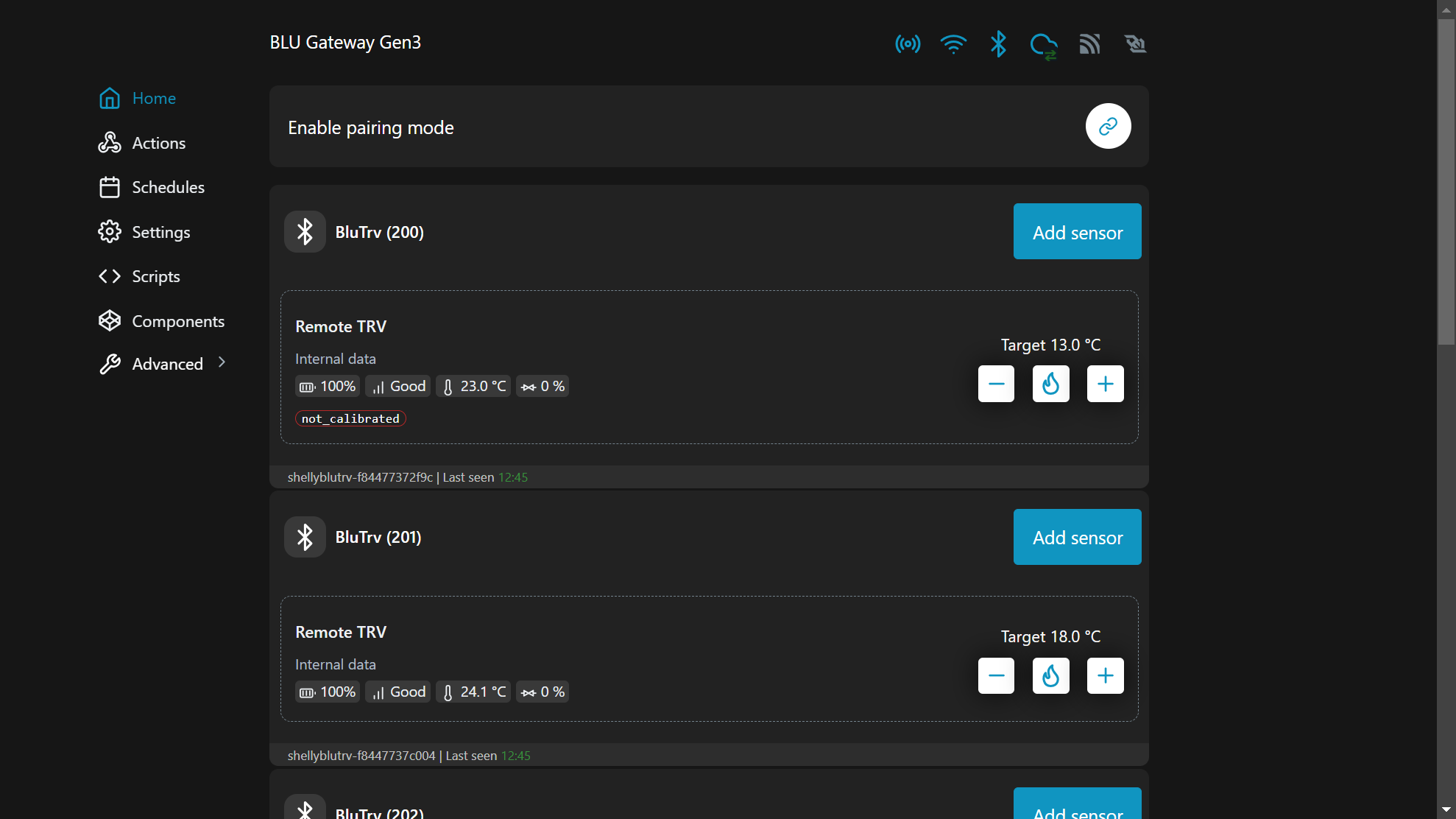

Home page
In the web interface, you will see a number of icons in the header. Their meanings and status colors are explained below:
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
|
|

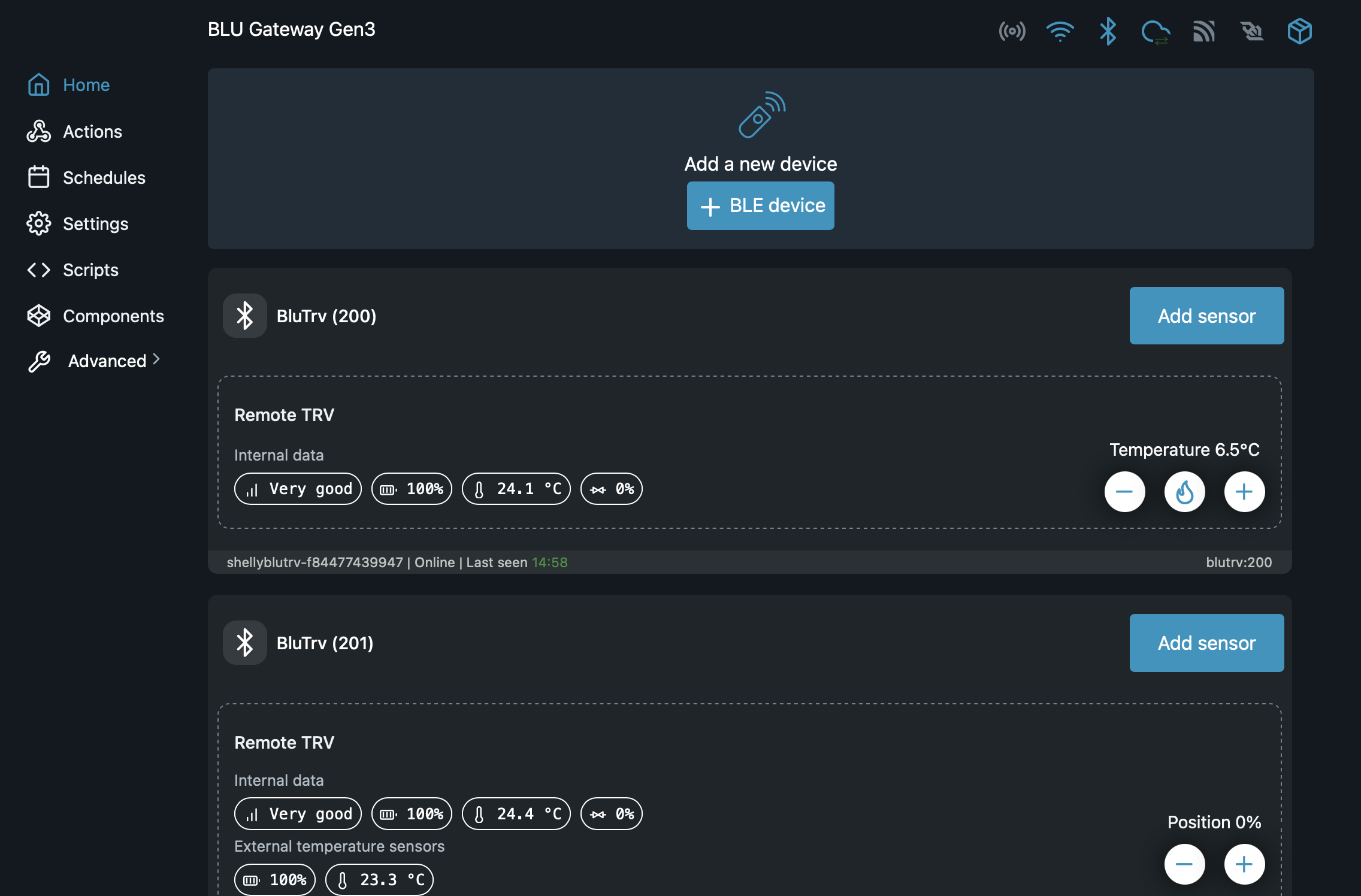

In the main menu, you can enable pairing mode for the Gateway by clicking the icon next to Enable pairing mode. The association process will begin, and the text will change to Pairing while the Gateway searches for devices to pair with. If the device you have connected to the gateway is a BLU TRV, it will be displayed underneath, and any groups of components or BTHome devices you create can also be displayed in this menu.
For BLU TRV devices, simply putting them in BLE mode is enough - the Gateway will pair with them automatically and set up the device in the web interface. If you want to add other BLE devices, you will have to add them as BTHome devices and set up which sensors you want to see.
BLU TRV
The TRV displays its battery percentage, signal strength, current temperature readings, and how open the valve is (from 0% to 100%). You can also see and adjust the target temperature. To add additional sensors to the BLU TRV, click on the button Add sensor next to the device in the main menu.
Clicking on the device brings up a new settings menu, where you can adjust the target temperature between 4°C and 30°C by sliding the point on the incomplete circle with the degrees, or use the plus and minus icons to change the target temperature. Additionally, the fire icon in the middle is a boost button, which opens the valve entirely (to 100%) to reach the target temperature faster.
Underneath are the settings for the BLU TRV:
Name
Name/Rename the TRV. Click Save settings to complete the naming process.
Calibrate TRV
Click on the blue Calibrate button next to this setting to begin the calibration process.
TRV behavior
Check/uncheck any of the following settings to your liking:
Underfloor heating - Only the data from the external setting will be valid and taken into account, not the readings of the built-in one.
Accelerated heating - Speed up the heating process by reducing the time it takes to reach the target temperature with this setting.
Auto calibration - Allow the device to automatically correct calibration if necessary.
Clog prevention - Prevent clogging by allowing the device to ensure at least one valve movement per week.
TRV interface
Select your desired temperature unit, and choose to have the TRV flip and/or lock. The flip allows for the screen of the device to rotate 180° based on how it’s mounted, and the lock adds a layer of security by locking the display. Additionally, there is a brightness slider, where you can adjust the screen’s brightness over 8 levels - from 0 to 7.
Enable TRV
Enable the TRV by toggling this setting on (on is its default state), and disable it only if you intend to use advanced API calls to manually control the valve position. Otherwise, it’s not suitable to disable the automatic opening and closing of the valve.
Temperature offset
Allows you to adjust the readings of the device’s temperature sensor to account for any heat emitted by the device itself. By setting a temperature offset, you can ensure that the readings are more accurate and reflect the actual temperature of the environment.
Default open window target temperature
Enable temperature override when the window is open, and pick a value for the temperature, as well as the duration of the override in minutes.
TRV boost duration override
Set the duration (in minutes) of the boost (the time the valve will be 100% open after hitting the boost button to get to the target temperature faster).
TRV update
Check for and install firmware updates to keep your TRV up to date. You can see your current firmware and bootloader versions in this setting.
Attached sensors
Monitor any attached sensors to your TRV - either temperature or door/window sensors - in this setting. In case you don’t have any, there will be a message in the setting.
Delete TRV
Remove the TRV from your paired devices by clicking the blue Delete button. If you wish to add it again, you will have to repeat the pairing process.
Actions
Configure the actions for your device - create new actions, edit existing actions, or delete actions. When creating actions for your device you will need to specify the condition on which the action occurs. You can also set a duration for your actions, as well as a URL to be hit when the condition for the action is met.
Schedules
This function requires a working connection to the Internet, so the device can synchronize the time. It allows you to create, view, edit, and delete schedules.
There are two types of schedules: Basic and Advanced.
To create a basic schedule:
Select the day(s) of the week.
Choose a time interval: time, sunrise, or sunset.
Set the time for the specified day(s):
Time: Click the up/down button, or type in a number, to set a time in hours and minutes.
Sunset/Sunrise: The Shelly device may turn on/off (or do specified action) automatically at sunrise/sunset, or at a specified time before or after sunrise/sunset. Click the up/down button, or type in a number, to set a time in hours and minutes.
To create an advanced schedule:
The advanced schedule function uses cron to execute jobs with a single schedule, instead of using a few basic schedules.
Creating an advanced schedule differs from creating a basic schedule, because of the When to execute menu.
It prompts you to select one or multiple values, a range of values, or a step between values (Choose one of the three by clicking on the Select, Range, or Step button for each value) for:
Seconds (0-59)
Minutes (0-59)
Hours (0-23)
Days (1-31)
Months (JAN-DEC)
Weekdays (SUN-SAT)
To create a schedule that happens every second/minute/hour/day/month/weekday, simply tick the box below the values in the desired section (seconds, minutes, hours, days, months, or weekdays). Additionally, you can use the sunrise/sunset offset by ticking the box next to this option. Doing so will bring up a new menu with hours and minutes. Leaving the hours and minutes and selecting either sunrise or sunset will make the schedule occur exactly at sunrise or sunset. Changing the hours and minutes values will create an offset, so entering negative values will make the schedule occur exactly [set hours and/or minutes] before sunrise/sunset while entering positive values will make the schedule occur [set hours and/or minutes] after sunrise/sunset. You cannot enter a positive value for one (hours/minutes) and a negative value for the other.
After that, simply specify the action you want your device to perform in the Do what section. Click Save once you’re done to save the new schedule.
In the Schedules menu, you can view all of your schedules. You can choose to view each one with basic or advanced time. Basic time shows the time and days that the schedule happens, while advanced time shows text in the Schedule card that tells you to click it for more information.
Both views display actions above. If there are more than three actions, they are displayed as +n where n is the remaining number of actions that is not displayed. To turn a schedule on/off, use the toggle button on the right.
Settings
Network settings
Access Point - Configure the device's AP, including switching it on or off (by using the toggle), and setting a password. The access point of the device is an open network by default. The SSID is unique and cannot be changed.
Wi-Fi - Register the Shelly device to connect to up to 2 different Wi-Fi networks.
Either input (through writing in the text field) or select the Wi-Fi network by clicking on the chevron (arrow) icon to browse through all available networks. Can select an open network, and also set a static IP address.
Enable Wi-Fi 1, or Wi-Fi 2, or both at the same time (by using the toggle next to each one). If both Wi-Fi 1 and Wi-Fi 2 are enabled, and the Shelly device disconnects from one of the networks, it will connect to the other. It is possible to enable Wi-Fi only once the network name (SSID) is set. If the device has no other connections available (AP, Bluetooth, Ethernet (if it applies), or a second Wi-Fi network), trying to disable the Wi-Fi will cause a pop-up asking you if you wish to continue.
Bluetooth - Disable/enable Bluetooth by toggling the switch. The device's default Bluetooth setting is enabled.
Connectivity
Note for RPC communication: When an RPC call fails to be executed, a banner message appears - it notifies you that the device is not responding in time, and has lost connection. When the connection is restored, the request will be sent again.
Cloud -Connecting your Shelly to its cloud allows you to control it remotely, and receive notifications and updates about your devices. The default for this setting is for the cloud to be enabled. If you disable the device cloud support, you will lose connection to your device from outside its local network!
MQTT - Configure the Shelly device to execute actions via MQTT. By default, MQTT is disabled, but you can enable it by toggling the switch. Changing these settings will cause the device to reboot. There are some other settings, such as RPC status notifications over MQTT (which enables you to communicate with your device through RPC notifications) and Generic status update over MQTT (to get an overall status update), which you can enable/disable by toggling the switches on their right. You can also enable SSL and type in your server, username, and password, but be aware that enabling SSL will hurt the battery life and most likely shorten it by half.
Outbound Websocket - Specifies whether the HTTP channel creates an I/O exception when an inbound connection is closed while still in use by the servlet. By default, this setting is disabled. To enable it, click the toggle switch next to Enable. Enter your service address in the text box and from the drop-down menu under SSL Connectivity choose *, ca.pem or user_ca.pem.
Range extender - Turning on the Range extender feature creates a hotspot that you can connect Wi-Fi devices to. If a Shelly device with the range extender enabled is connected to a Wi-Fi router and the Internet, all devices connected to it are also connected to the router and the Internet.
Even if the Shelly device is not connected to a Wi-Fi router, all devices connected to it can still communicate with it and with each other. Underneath is information about the AP clients connected - how many, as well as their IP configuration, MAC address, and internal and external IP addresses.
RPC over UDP - Communicate with your device and send requests through a Remote Procedure Call (RPC) over a User Datagram Protocol (UDP) server. This can be useful in controlling and monitoring your device remotely, without the need for a dedicated server or connection.
To use this setting, you'll need to enter the listen port and destination address for the UDP server. The listen port is the port number that the device will listen on for incoming requests, while the destination address is the IP address of the server to which the requests will be sent.
Once you've entered the required information, you can use the RPC over UDP protocol to send requests to your device and receive responses.
Device settings
Device name (info) - See your device’s ID, the Wi-Fi it’s connected to, and the Wi-Fi RSSI.
Reboot - After clicking on the Reboot button, you will be asked if you’re sure you want to reboot your device. Click OK for device reboot and Cancel if you don’t want the device to reboot.
Factory reset - By clicking on the Reset button, your device’s settings will all be reset to the default. Any changes you’ve made will be reverted. You can confirm that you want the device to factory reset by clicking OK on the pop-up, or Cancel to cancel the factory reset.
Location and timezone - Your timezone and location will be autodetected, but you can manually change them from this setting by choosing a timezone from the drop-down menu and typing in your latitude and longitude. There is also a button Auto detect location, which will make the device automatically detect the location once again if it failed the previous time.
If the device’s time is not synced with the current time, schedules and actions may not work as expected. A message will appear to let you know if the time is not synced.
Authentication - If you enable authentication, you will be asked to type in a password, which you will then use to access the Web UI of the device. Once enabled, to disable it, click the toggle and enter your authentication pass once prompted.
Firmware - In this setting, you can see your device's ID, firmware version, build ID, and web build ID. Use the Copy button above the firmware ID or the web build ID to copy the contents to your clipboard. You can also see the available new versions, check for updates and easily update your device. There is also an option to upload your own firmware, however flashing devices with custom firmware irreversibly voids the device warranty.
User certificate (TLS Configuration) - Upload custom certificate authority, client certificate, and client key by dragging and dropping the file(s), or by browsing your files, which you can do by clicking the designated button. Click Upload to upload the files, and Clear to remove files you don’t want to upload.
Eco mode - Reduce energy consumption on the device by lowering CPU frequency and modem activity while in Eco Mode. To enable this setting click the toggle switch next to Enable eco mode and then click the Apply button to save the changes.
Debug - This setting includes Mqtt, Websocket, and Udp debug. To enable any of these, click the toggle switch next to the specific setting. For Udp debug you will also be asked to type in a Udp address.
System LED - Enable/Disable the device’s system LED by (un)checking the box next to Enable.
Scripts
This device features scripting capabilities. You can use them to customize and enhance device functionality based on a user’s specific needs. These scripts can take into consideration device state, communicate with other devices, or pull data from external services like weather forecasts. A script is a program, written in a subset of JavaScript.
In the web UI, when you go to the Scripts menu, you will see the existing scripts, or if you don’t have any, you can create one, or open the library to explore what is already available. Next to each script you have, you will be able to see its status (whether it’s running or stopped), and a toggle allowing you to run the script on startup. If your script has any errors, the last saved error will be shown under the script’s name.
When you are in the editing view of the script, you will see the console underneath, as well as any errors that pop up. Above the code field are options to Save, Start/Stop, or Delete your script. You can also access Snippets and Docs by clicking on the corresponding labels.
Components
Creating a component
The Components setting allows the user to create Dynamic Components, which don’t initially exist in the device. Virtual components, a type of dynamic component, are used to store or transfer data between scripts or runs and display the script’s functionality on the home page. Components can be grouped together; only the groups and the components inside of them will be displayed on the home page. Components that don’t belong to a group will not be visualized there. The number of components and groups of components per device is limited.
To create a component:
Click the Create new button next to User-defined components.
Select the type of component you’d like to create - Boolean, Number, Text, Enum, or Button. When created, each component type has Name, View, and Custom Icon URL fields, which you have to fill in. The Custom Icon URL field isn’t required, but it can be used to customise how your components look in the home page. You can rename or delete a component, as well as create actions for it, using the buttons located next to each component.
The different component types may have additional fields, specific to that type. They are explained below
The Boolean component type stores a true/false value and has two different titles that the user can enter depending on if its value is true or false, as well as two separate icons. The drop-down menu for the default value will include the different states of your device. The view options are Hidden, Toggle, and Label. The Toggle view displays a toggle button, so the component’s value changes on each hit. The Label view shows the title for the component’s value.
The Number component type stores values between -999999999999999 and 999999999999999. The default value should be a number in this range. You can also change the unit and step. The view options are Hidden, Field, Slider, Progress bar, and Label. The Field view shows an input field, the Label view displays the value, the Progress bar view visually represents progress, and the Slider view displays a slider interface for interaction.
The Text component type stores a string with up to 255 characters. The view options are Hidden, Field, Label, and Image. The Field view shows an input field, the Label view displays the title, and the Image view requires a URL value, which it uses to display an image.
The Enum component type stores a group of named constants. The view options are Hidden, Dropdown, and Label. If you select Label view, the component will display the title by default, but if an image is specified, it will take precedence and be shown instead.
The Button component type provides a simulated virtual input that allows users to interact with the user interface by registering and reporting clicks. It then sends notifications through connected channels and can be used to trigger automations, and activate webhooks. It features two view options - Button, which displays the button component in your home page, and Hidden.
If a component is set to Hidden, it won’t be displayed in the home page. Otherwise, your component groups will appear below your device’s input(s) and/or output(s) and will display the components, which are part of those groups.
Creating a group of components
To create a group:
Click on the + next to User-defined groups, and you’ll be taken to the group creation menu.
Enter the name of the group.
Select the desired components that you’d like to have in that group.
Editing your groups menu is done through the pencil icon next to the + and it allows you to change the order of your groups by clicking on the up and down arrows to move a group up or down.
Component actions
The Actions menu is now structured based on component type. So, you can create actions for your components and they’ll be separated into the aforementioned five categories.
Scripting
Components can be included in scripts and programmed to change values depending on a condition. To specify a component in a script, you’ll need to use its ID. Component IDs start from 200 and are limited to 299. You’ll be able to see your component’s ID in the Components menu.
BTHome components
BTHome components allow you to create virtual/dynamic components paired to real devices emitting BTHome packets, such as the Shelly BLU devices. To use BTHome components, a successful Bluetooth connection must be established first. A message will appear informing you if the Bluetooth observer is disabled, as well as a button to enable it and reboot your device.
Once a connection has been made, to add a BTHome (Bluetooth) device, click on the + sign next to BTHome components. The device will scan for available Bluetooth devices, but you can click on the Scan button to scan again. Any found devices will appear below that button. In order for a device to be found during the scan, that device needs to be in pairing mode, which is done by holding down the device button. Another option for adding a device is using a MAC address. To do that, click on Add device by MAC address and enter the MAC address of the device you wish to add.
To add sensors, click Configure next to the Bluetooth device of your choice. On this screen, you can name your BTHome (Bluetooth) device, add an encryption key, as well as enter a Custom Icon URL to customise the look of the BTHome component in the home page. The encryption key is used for packet decryption and can be retrieved using the Shelly BLU Debug application.
Below the encryption key field are the supported sensors, which you can add by clicking on the + sign next to the ones you wish to add. Once added, a pencil icon appears next to the sensor and by clicking it you can edit its name, add a Custom Icon URL, or use the trash can icon to delete the sensor entirely.
To save your BTHome component, click on Save settings. To delete a component, click on the trash can icon above the text fields.
To edit a BTHome component, click on the gear wheel icon. You’ll be taken to its settings, which is the same screen as the one you see when you’re adding the component.
Advanced Settings
Upon clicking on the arrow next to this setting, you will reveal the advanced settings. They are explained below.
KVS
KVS stands for Key-Value Storage and is a type of non-relational database, which works by using a simple key-value method to store data. In one device, you can store up to 50 key-value pairs. Upon clicking on the Add value button, you will be taken to the value creation screen, which prompts you to enter a key (up to 42 characters), and value (up to 253 characters). You’ll notice under the text box for the value is the current value type. By default, the value type is Number, but by entering text, the type will change to String. To save the key, simply click the Save button. To edit an existing value, simply click on it. To delete a key-value pair, click the Delete button that appears below it when you go to edit the key. Clicking on the question mark next to the setting name will take you to the API documentation, which will provide you with further information on how the KVS works for Shelly devices.
Diagnostics
From this setting, you can download the debug logs. Enabling the debug log without a reason isn’t recommended, since your device will be slowed down and this setting will cause aging of the flash memory. If you do decide to enable it, you can also download the previous and current logs. Be aware that leaving this page will reset the logger and log data.
HTTP ping
Enter a URL in the designated text field to send an HTTP request to it from your device. The web interface will then let you know if the request was successful or failed.
